Home >> Lexus >> 2009 >> GS 350 RWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures








WIPER AND WASHER: WIPER AND WASHER SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

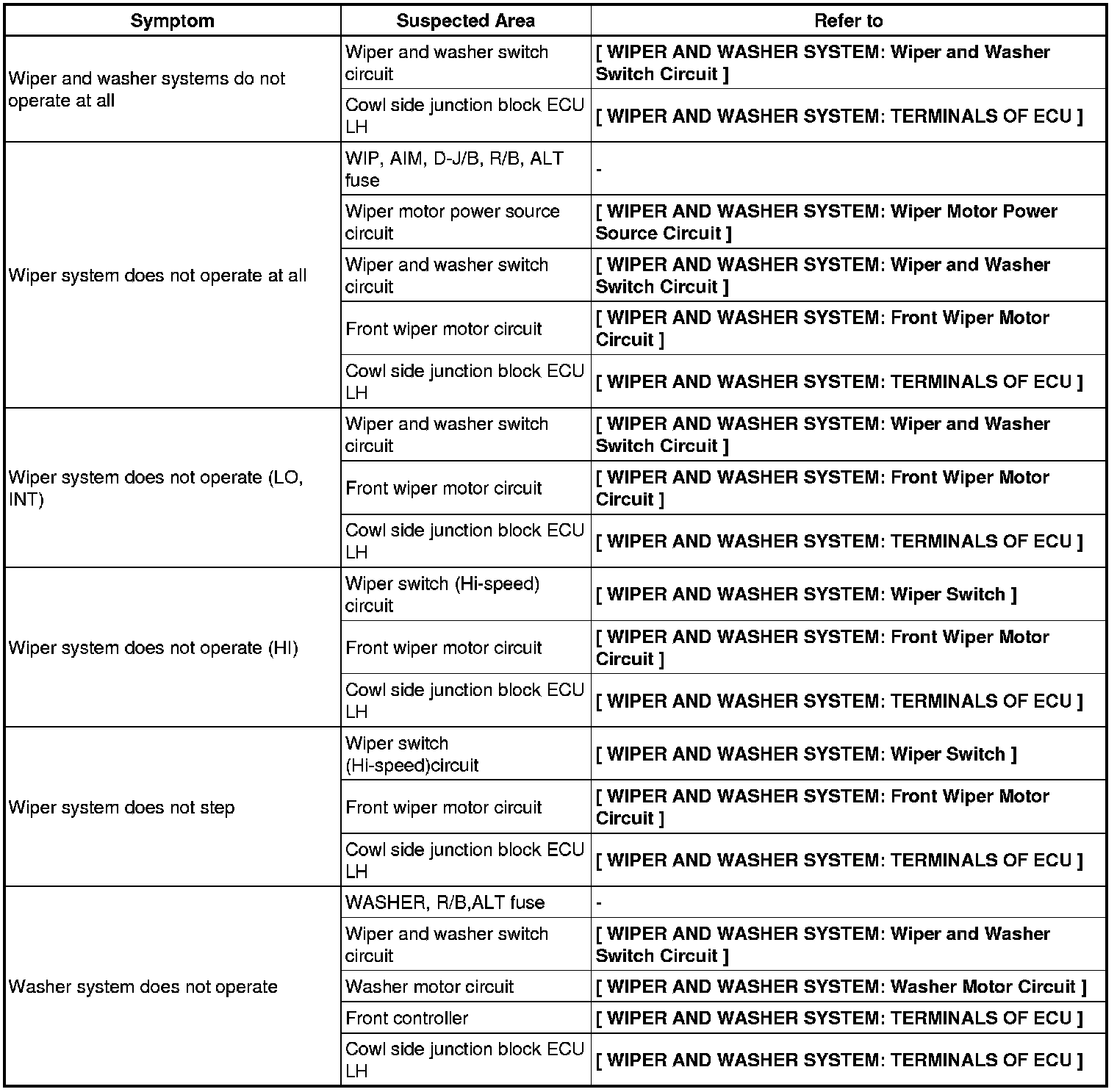

FRONT WIPER AND WASHER SYSTEM

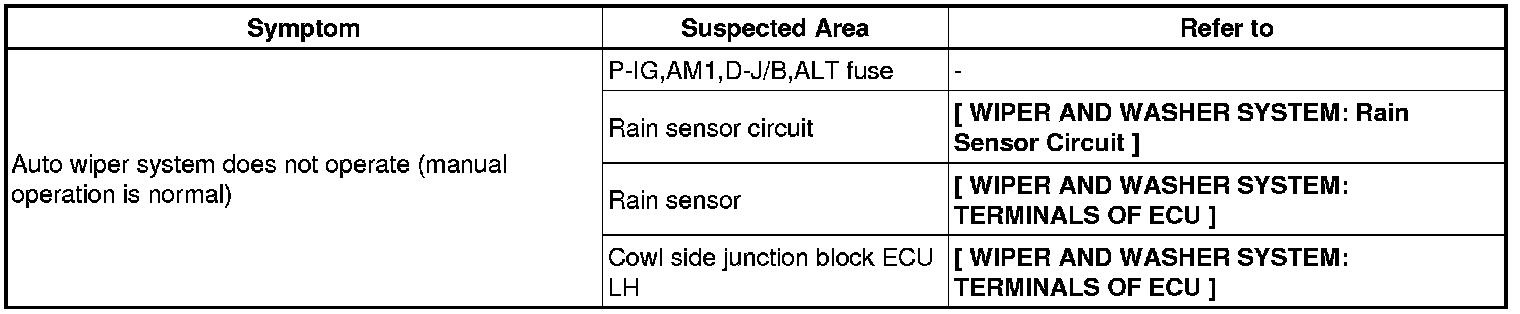

AUTO WIPER SYSTEM

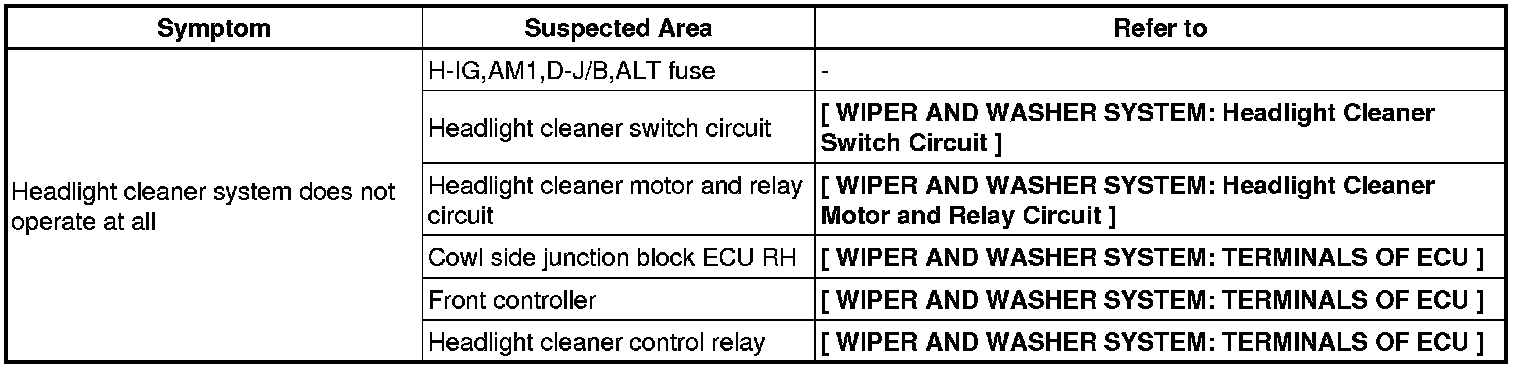

HEADLIGHT CLEANER SYSTEM

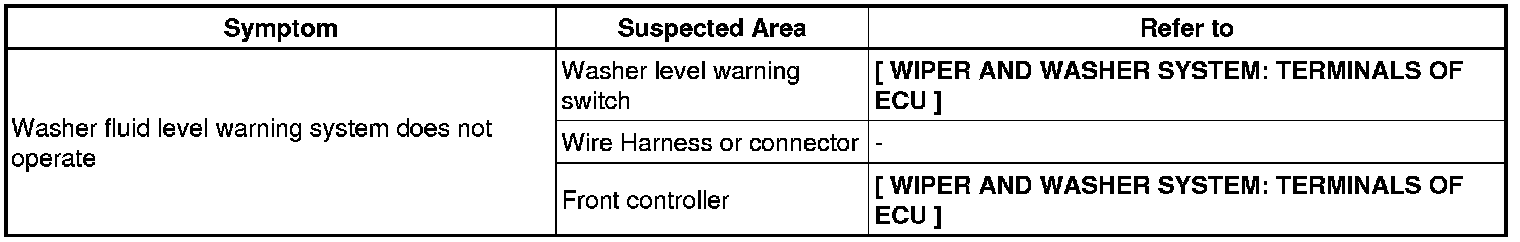

OTHERS
