A760E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL FLOOR SHIFT ASSEMBLY





(a) Install the floor shift with the 4 bolts.
Torque: 8.3 Nm (85 kgf-cm, 73 in-lbf)
(b) Connect the 2 connectors to the floor shift.
(c) Connect the 6 clamps.
2. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY





(a) Temporarily tighten the floor shift gear shifting rod with the nut.
HINT: The rod is tightened to a torque specification in the "ADJUST SHIFT LEVER POSITION" procedure.

3. ADJUST SHIFT LEVER POSITION A760E Automatic Transmission
4. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR Installation
5. INSTALL FRONT EXHAUST PIPE ASSEMBLY
(a) Install the front exhaust pipe Installation.
6. INSTALL NO. 2 ENGINE UNDER COVER
7. INSTALL NO. 2 CONSOLE BOX DUCT Installation
8. INSTALL CONSOLE BOX Installation
9. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation
10. REMOVE CONSOLE BOX PLATE Installation
11. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
12. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
13. INSTALL CONSOLE UPPER PANEL ASSEMBLY Installation
14. INSTALL FRONT CONSOLE UPPER PANEL GARNISH Installation

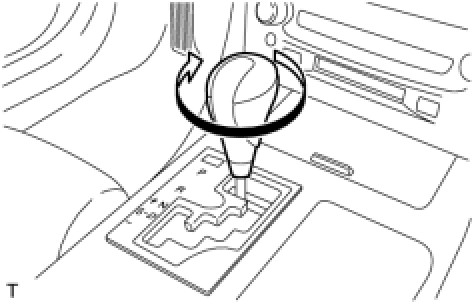

15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
17. INSPECT SHIFT LEVER POSITION On-Vehicle Inspection
18. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
