LIGHTING: HEADLIGHT DIMMER SWITCH: INSTALLATION

INSTALLATION

1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY

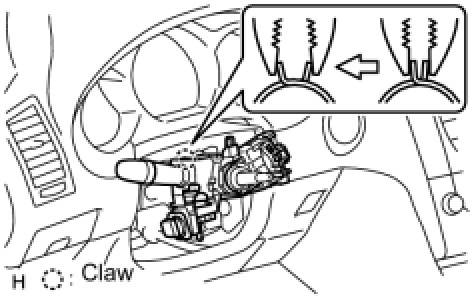

(a) Install the headlight dimmer switch with the claw as shown in the illustration.
HINT: Make sure that the claw is completely engaged.





(b) Install the headlight dimmer switch with the clamp.
(c) Connect the connector.
2. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY Installation
3. INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING SENSOR Installation
4. INSTALL STEERING COLUMN COVER UPPER Installation
5. REMOVE STEERING COLUMN COVER LOWER Installation
6. ADJUST SPIRAL CABLE SUB-ASSEMBLY WITH STEERING SENSOR Installation
7. INSTALL STEERING WHEEL ASSEMBLY Installation
8. INSPECT STEERING WHEEL CENTER POINT
9. INSTALL STEERING PAD Installation
10. INSTALL NO. 3 STEERING WHEEL COVER LOWER
11. INSTALL NO. 2 STEERING WHEEL COVER LOWER
12. CONNECT CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
13. INSPECT STEERING PAD Installation
14. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
CAUTION:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

15. INSPECT SRS WARNING LIGHT
