AUDIO / VISUAL: STEERING PAD SWITCH: INSTALLATION

INSTALLATION

1. INSTALL STEERING PAD SWITCH ASSEMBLY

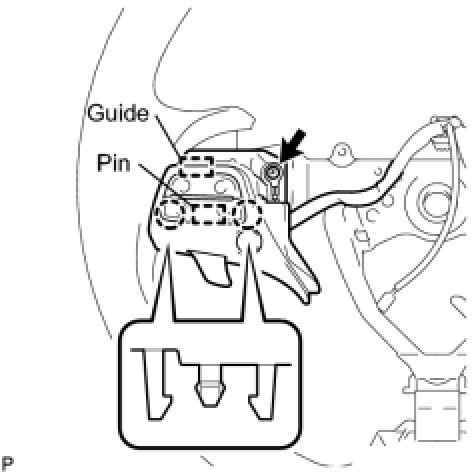

(a) Engage the 2 claws and pin and install the steering pad switch assembly.
(b) Install the screw.
Torque: 2.4 Nm (24 kgf-cm, 21 in-lbf)

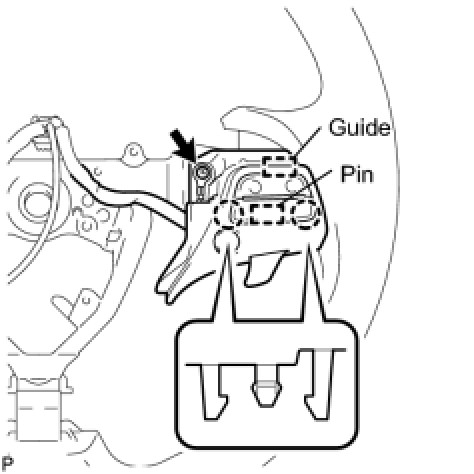

(c) Engage the 2 claws and pin and install the steering pad switch assembly.
(d) Install the screw.
Torque: 2.4 Nm (24 kgf-cm, 21 in-lbf)

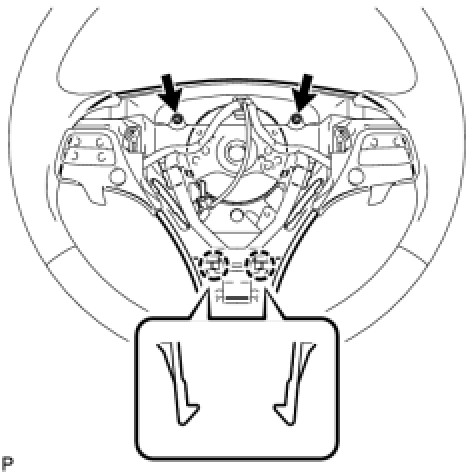

2. INSTALL LOWER STEERING WHEEL BOSS COVER





(a) Engage the 2 claws.
(b) Install the lower steering wheel boss cover with the 2 screws.

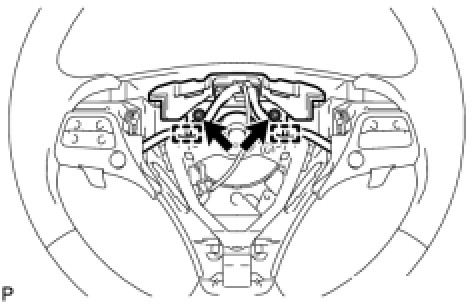

3. INSTALL STEERING SHAKE DAMPER





(a) Install the steering shake damper with the 2 screws.
(b) Engage the 2 harness clamps.
4. INSTALL CRUISE CONTROL MAIN SWITCH Installation
5. ADJUST SPIRAL CABLE with STEERING SENSOR Installation
6. INSTALL STEERING WHEEL ASSEMBLY (for 2GR-FSE) Installation
7. INSTALL STEERING WHEEL ASSEMBLY (for 1UR-FSE) Installation
8. INSTALL STEERING PAD Installation
9. INSTALL LOWER NO. 3 STEERING WHEEL COVER
10. INSTALL LOWER NO. 2 STEERING WHEEL COVER
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

12. INSPECT STEERING PAD Installation
13. INSPECT SRS WARNING LIGHT
Diagnosis System
