Installation

STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU: INSTALLATION

INSTALLATION

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

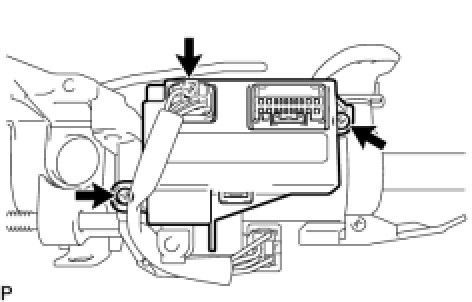

(a) Using a socket wrench (+), install the multiplex tilt and telescopic ECU with the 2 screws.
Torque: 1.5 Nm (15 kgf-cm, 13 in-lbf)
(b) Connect the connector to the multiplex tilt and telescopic ECU.
NOTICE:
- The connectors on both ends of the wire harness between the telescopic motor and ECU are the same shape.
- When installing them, connect the connectors of the same color.

2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY

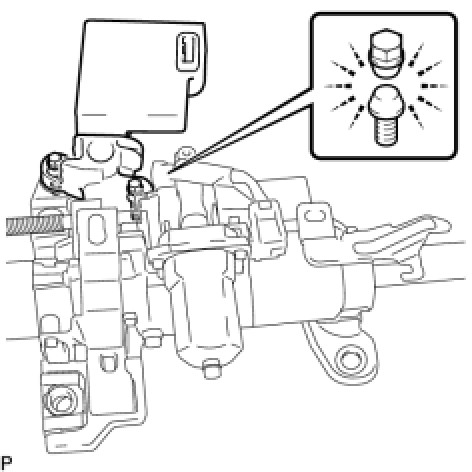

(a) Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.





(b) Tighten the 2 tapered-head bolts until the bolt heads break off.
3. INSTALL STEERING COLUMN ASSEMBLY (for 2GR-FSE)
HINT: Refer to the instructions for Installation of the steering column assembly (2GR-FSE) Installation.

4. INSTALL STEERING COLUMN ASSEMBLY (for 1UR-FSE)
HINT: Refer to the instructions for Installation of the steering column assembly (1UR-FSE) Installation.
