2GR-FSE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSTALLATION

INSTALLATION

1. INSTALL KNOCK SENSOR

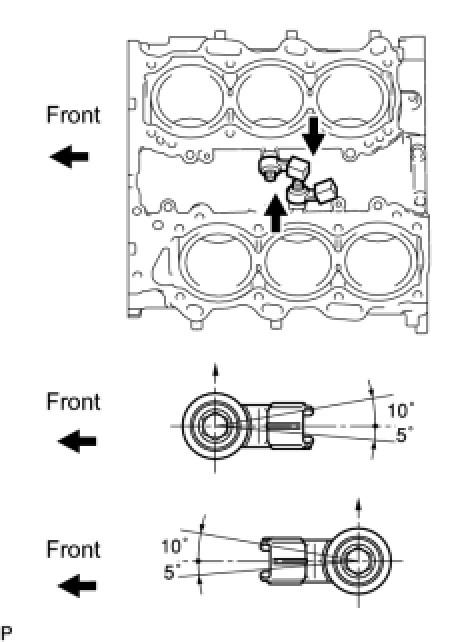

(a) Install the 2 knock sensors so that they are horizontal as shown in the illustration. Then install the 2 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
- It is acceptable for the sensor to be tilted +10 to -5°.
- The bank 1 connector is black and the bank 2 connector is gray.

(b) Connect the 2 knock sensor connectors.
2. INSTALL FUEL INJECTOR SEAL Installation
3. INSTALL FUEL INJECTOR ASSEMBLY Installation
4. INSTALL NO. 1 FUEL DELIVERY PIPE Installation
5. INSTALL NO. 2 FUEL DELIVERY PIPE Installation
6. INSTALL NO. 3 FUEL PIPE Installation
7. INSTALL NO. 2 FUEL PIPE Installation
8. INSTALL FUEL PUMP ASSEMBLY Installation
9. CONNECT NO. 2 FUEL PIPE Installation
10. INSTALL NO. 1 FUEL PIPE Installation
11. INSTALL FUEL PRESSURE PULSATION DAMPER Installation
12. CONNECT WATER HOSE JOINT Installation
13. INSTALL INTAKE MANIFOLD Installation
14. INSTALL INTAKE AIR SURGE TANK Installation
15. INSTALL THROTTLE BODY Installation
16. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE Installation
17. CONNECT NO. 2 VENTILATION HOSE Installation
18. CHECK FOR FUEL LEAKAGE Testing and Inspection
19. ADD ENGINE COOLANT Service and Repair
20. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
21. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
22. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
23. INSTALL FRONT FENDER TO COWL SIDE SEAL LH Installation
24. INSTALL FRONT FENDER TO COWL SIDE SEAL RH Installation
25. INSTALL FRONT UPPER FENDER PROTECTOR LH Installation
26. INSTALL FRONT UPPER FENDER PROTECTOR RH Installation
27. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
28. CHECK FOR ENGINE COOLANT LEAKAGE Testing and Inspection
29. CHECK FUNCTION THROTTLE BODY On-Vehicle Inspection
30. INSTALL V-BANK COVER Installation
31. INSTALL ENGINE ROOM SIDE COVER LH Installation
32. INSTALL ENGINE ROOM SIDE COVER RH Installation
33. INSTALL COOL AIR INTAKE DUCT SEAL Installation
34. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
