Reassembly

INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD: REASSEMBLY

REASSEMBLY

1. INSTALL ENGINE SWITCH
for 2GR-FSE: Installation
for 1UR-FSE: Installation
2. INSTALL FRONT STEREO COMPONENT SPEAKER Installation
3. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side) Installation
4. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side) Installation

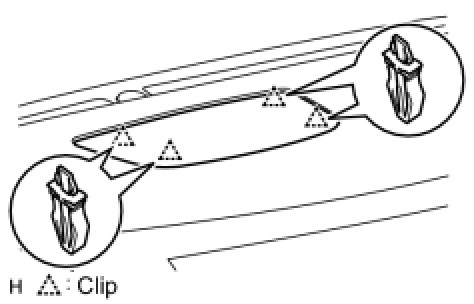

5. INSTALL NO. 1 SPEAKER HOLE COVER





(a) Engage the 4 clips to install the No. 1 speaker panel cover.

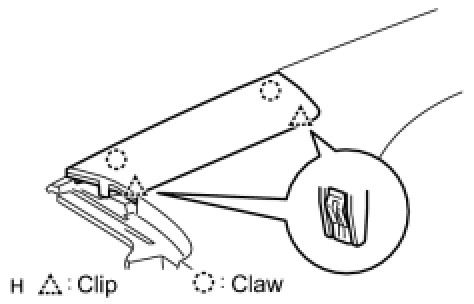

6. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY





(a) Engage the 2 claws and 2 clips to install the No. 2 instrument panel speaker panel sub-assembly.

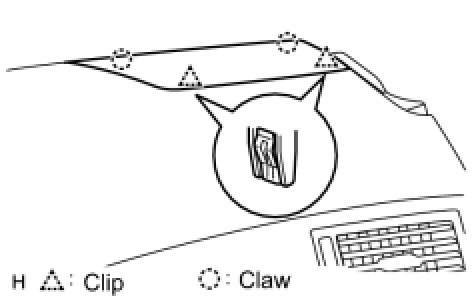

7. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY





(a) Engage the 2 claws and 2 clips to install the No. 1 instrument panel speaker panel sub-assembly.
8. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY Installation

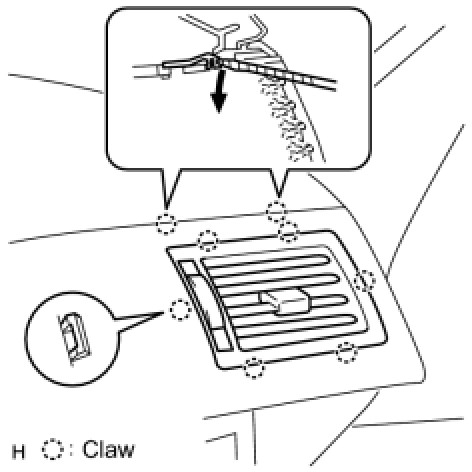

9. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY





(a) Engage the 8 claws to install the No. 3 instrument panel register assembly.

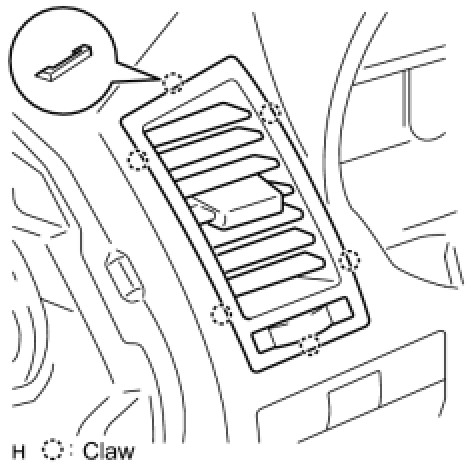

10. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY





(a) Engage the 6 claws to install the No. 1 instrument panel register assembly.
11. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

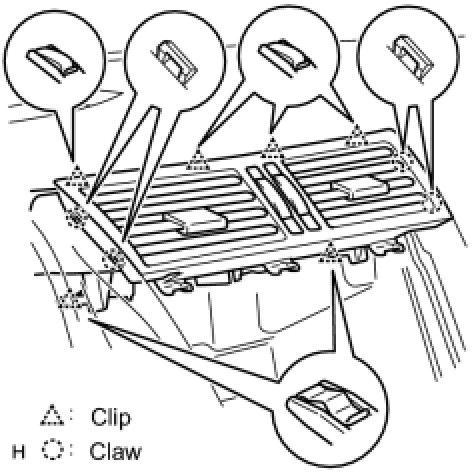

(a) Engage the 6 clips and 4 claws to install the No. 2 instrument panel register assembly.
12. INSTALL NO. 2 HEATER TO REGISTER DUCT





(a) Install the No. 2 heater to register duct with the 4 screws.

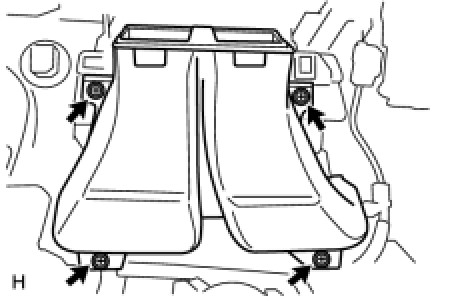

13. INSTALL NO. 3 HEATER TO REGISTER DUCT





(a) Install the No. 3 heater to register duct with the 3 screws.
14. INSTALL NO. 1 HEATER TO REGISTER DUCT





(a) Install the No. 1 heater to register duct with the 3 screws.

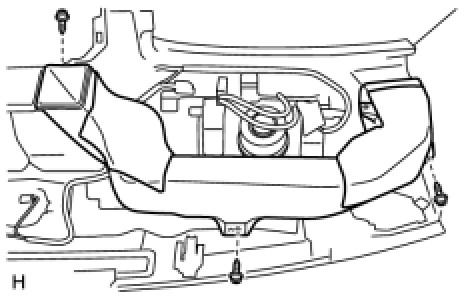

15. INSTALL DEFROSTER NOZZLE ASSEMBLY

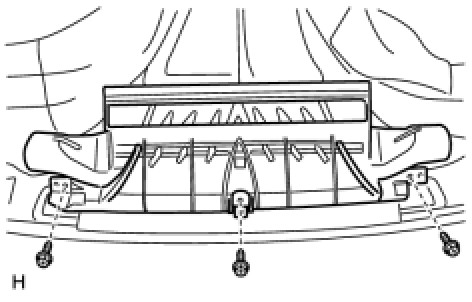

(a) Install the defroster nozzle duct assembly with the 3 screws.
16. INSTALL NO. 2 SIDE DEFROSTER NOZZLE DUCT





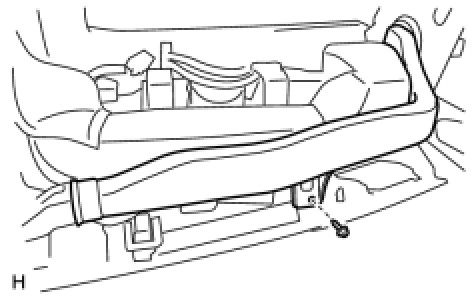

(a) Install the No. 2 side defroster nozzle duct with the screw.

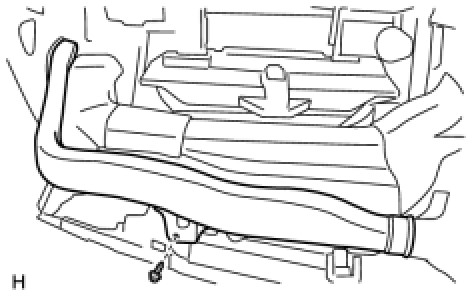

17. INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT





(a) Install the No. 1 side defroster nozzle duct with the screw.
