Pre-Collision System
Pre-Collision System
PRE-COLLISION: PRE-COLLISION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
Pre-Collision System

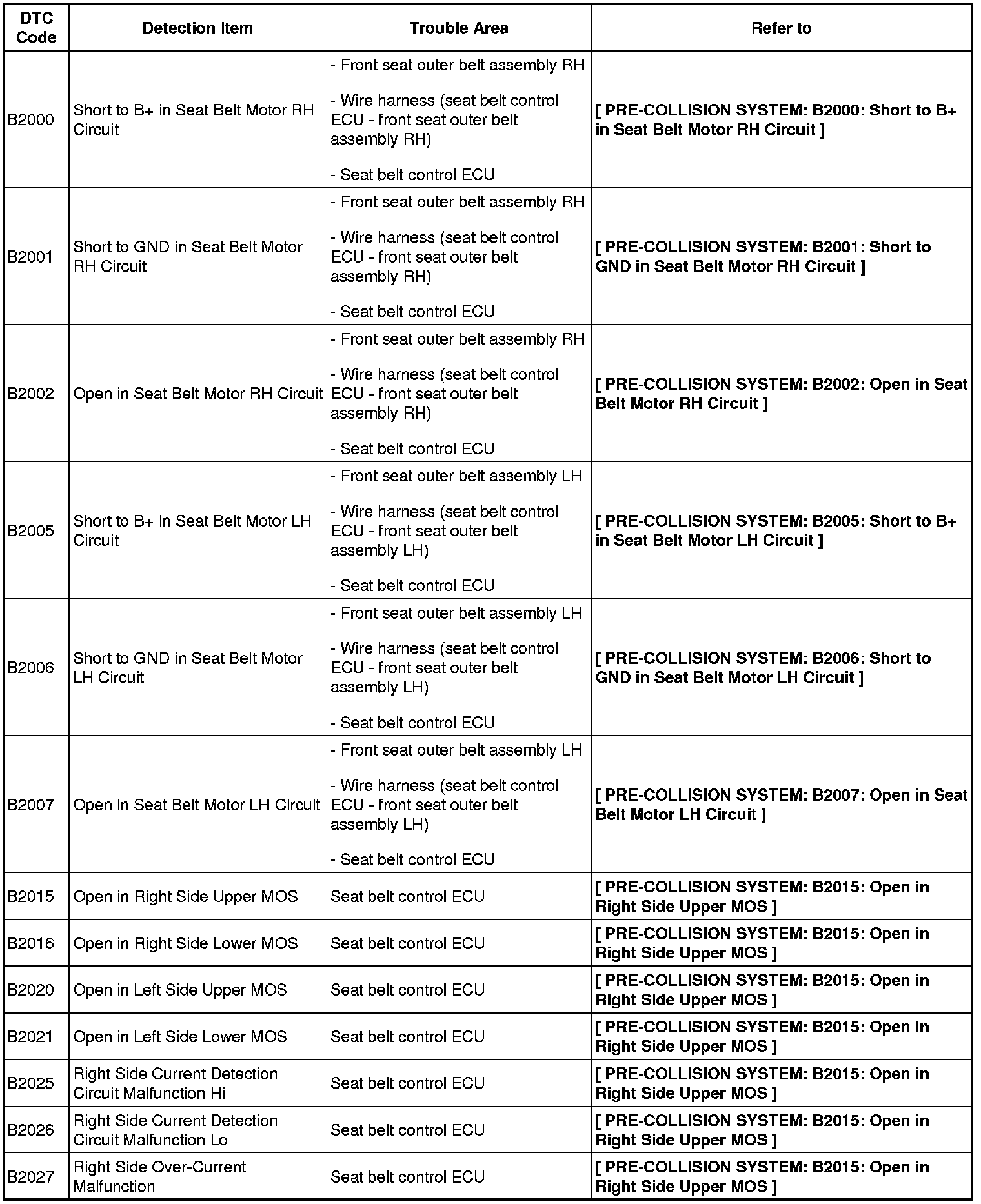

B2000-B2027:
B2030-B2060:

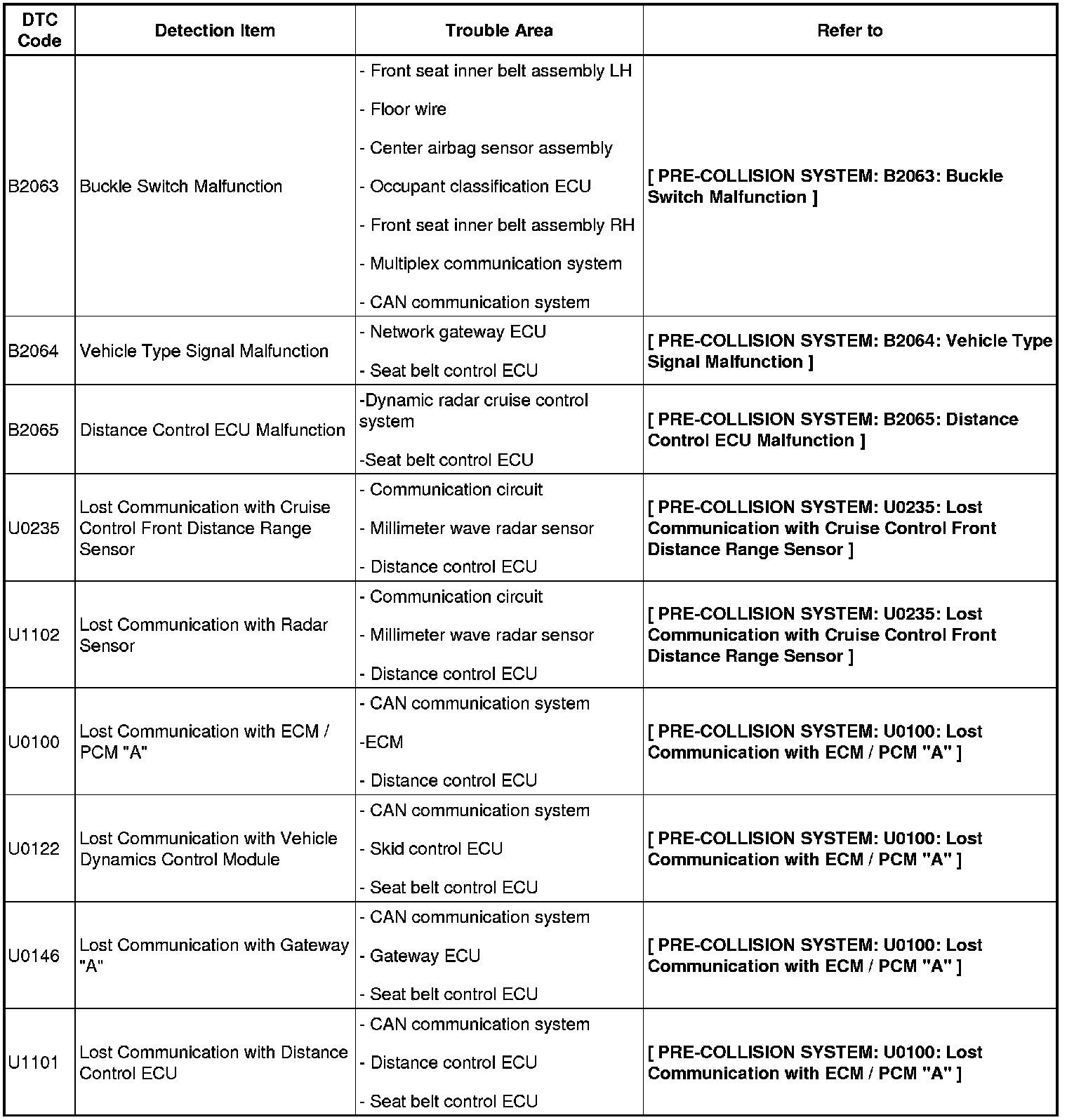

B2063-B2065 U1102-U1101:
