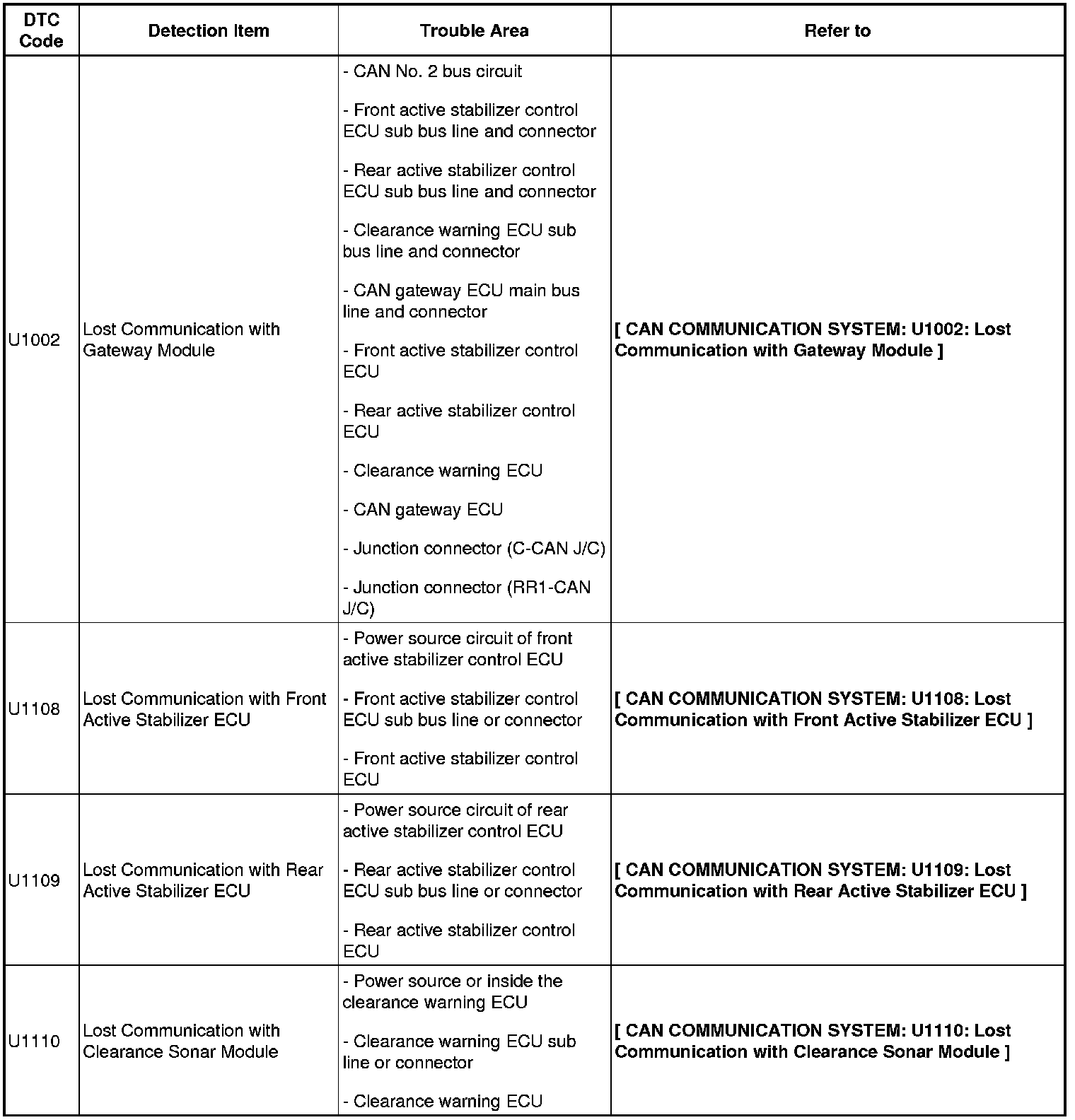

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
DIAGNOSTIC TROUBLE CODE CHART
U1002-U1110:
