SUSPENSION CONTROL: ACTIVE STABILIZER SUSPENSION SYSTEM: C192D: Timeout Initialization Check of Front Actuator

DTC C192D - Timeout Initialization Check of Front Actuator

DTC C193B - Malfunction in Front Active Stabilizer Main Relay

DTC C194B - Short to GND in Front Motor Driver

DTC C194C - Short in Front Motor Driver Circuit

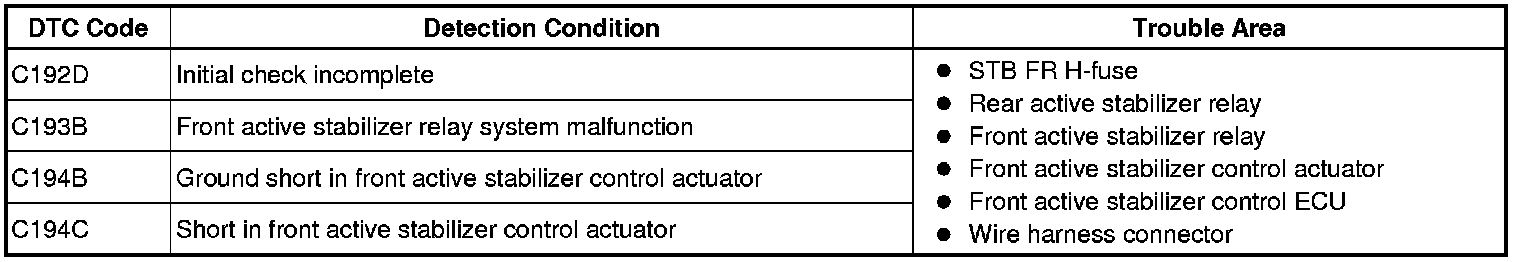

DESCRIPTION

The rear active stabilizer control ECU and front active stabilizer control ECU use CAN communication to perform a mutual system check. If a problem occurs in the rear active stabilizer control ECU, rear active stabilizer control actuator, and PIG power source circuit, DTCs C192D, C193B, C194B and C194C are stored.

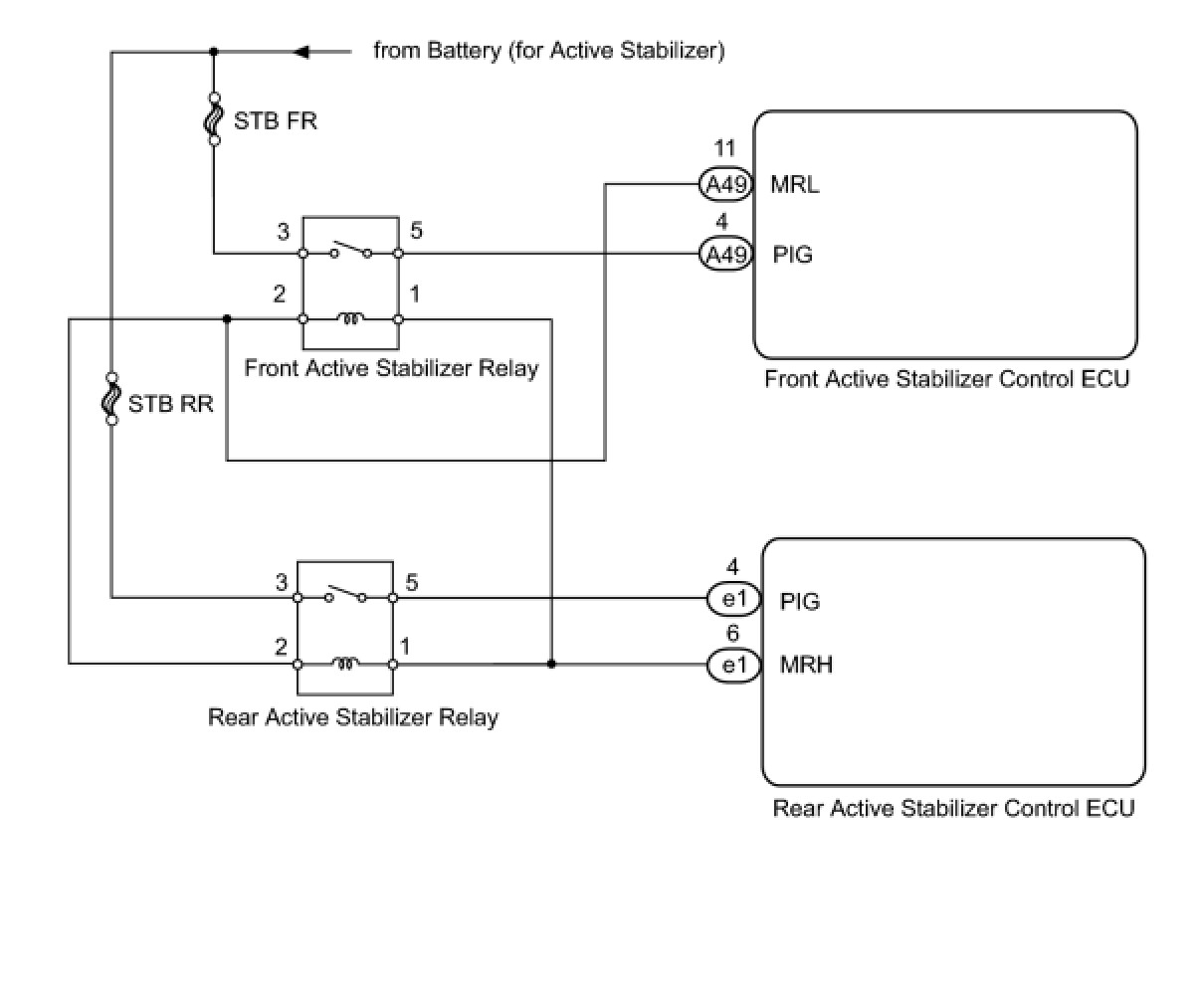

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (STB FR)
(a) Remove the STB FR H-fuse from the luggage room No. 6 relay block.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





HINT: When a fuse burns out during installation, there may be a power source-related short.

NG -- REPLACE FUSE
OK -- Continue to next step.

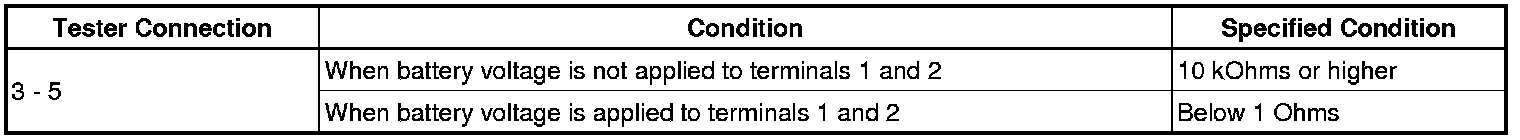

2. INSPECT FRONT ACTIVE STABILIZER RELAY (STB FR)




(a) Remove the front active stabilizer relay from the luggage room No. 6 relay block.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPLACE FRONT ACTIVE STABILIZER RELAY
OK -- Continue to next step.

3. INSPECT REAR ACTIVE STABILIZER RELAY (STB RR)




(a) Remove the rear active stabilizer relay from the luggage room No. 6 relay block.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPLACE REAR ACTIVE STABILIZER RELAY
OK -- Continue to next step.

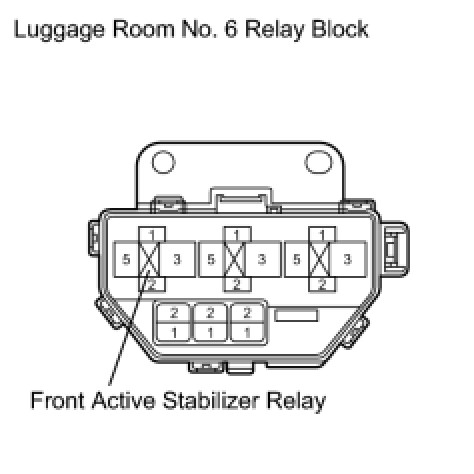

4. CHECK HARNESS AND CONNECTOR (POWER SOURCE-RELATED)




(a) Remove the front active stabilizer relay from the luggage room No. 6 relay block.
(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

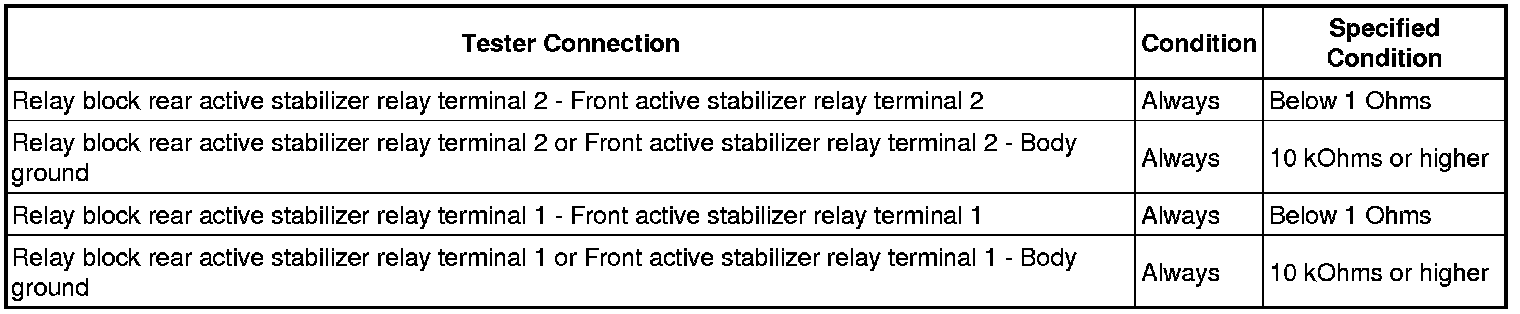

5. CHECK ACTIVE STABILIZER RELAY CIRCUIT




(a) Remove the front and rear active stabilizer relays from the luggage room No. 6 relay block.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE LUGGAGE ROOM RELAY BLOCK
OK -- Continue to next step.

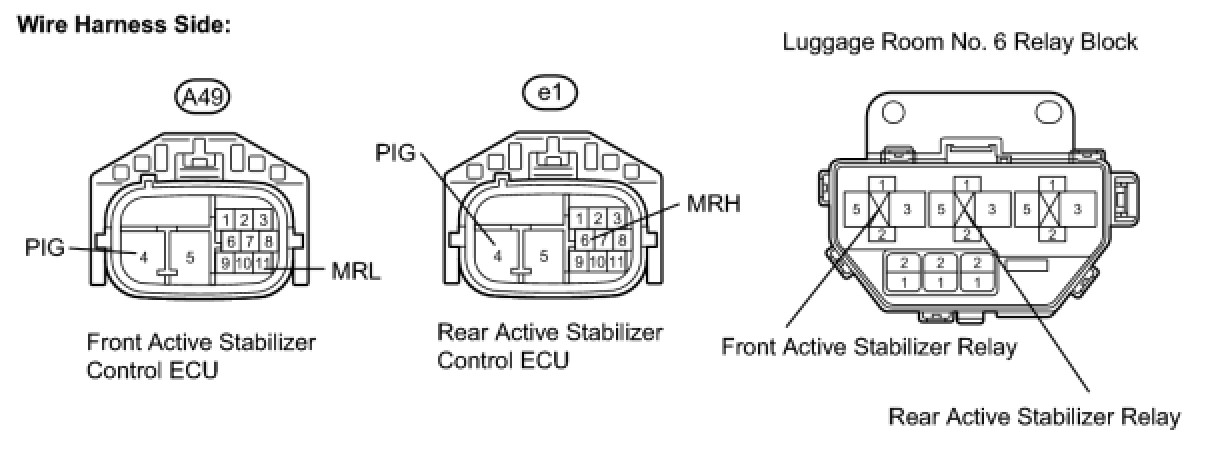

6. CHECK HARNESS AND CONNECTOR (FRONT ACTIVE STABILIZER CONTROL ECU - RELAY BLOCK)




(a) Remove the front and rear active stabilizer relay from the luggage room No. 6 relay block.
(b) Disconnect the e1 rear active stabilizer control ECU connector.
(c) Disconnect the A49 front active stabilizer control ECU connector.
(d) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

7. CHECK OPERATION OF FRONT ACTIVE STABILIZER CONTROL ECU
(a) Turn the engine switch off.
(b) Exchange the rear active stabilizer control ECU with the front active stabilizer control ECU.
(c) Connect Techstream to the DLC3.
(d) Turn the engine switch on (IG) and press the Techstream main switch ON.
(e) Clear the DTC Active Stabilizer Suspension System.
(f) Check for DTC.

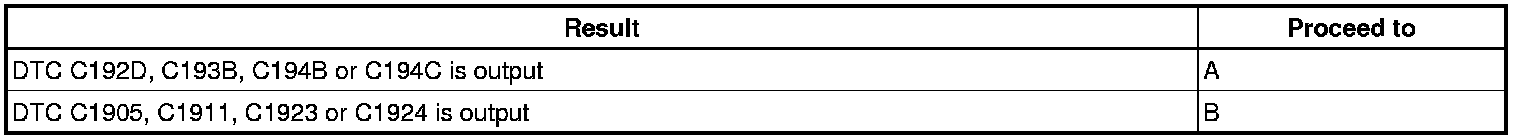

Result





B -- REPLACE FRONT ACTIVE STABILIZER CONTROL ECU
A -- REPLACE FRONT ACTIVE STABILIZER CONTROL ACTUATOR
