Service Data








SERVICE SPECIFICATIONS: 2UR-FSE ENGINE MECHANICAL: SERVICE DATA

SERVICE DATA

ENGINE





CAMSHAFT

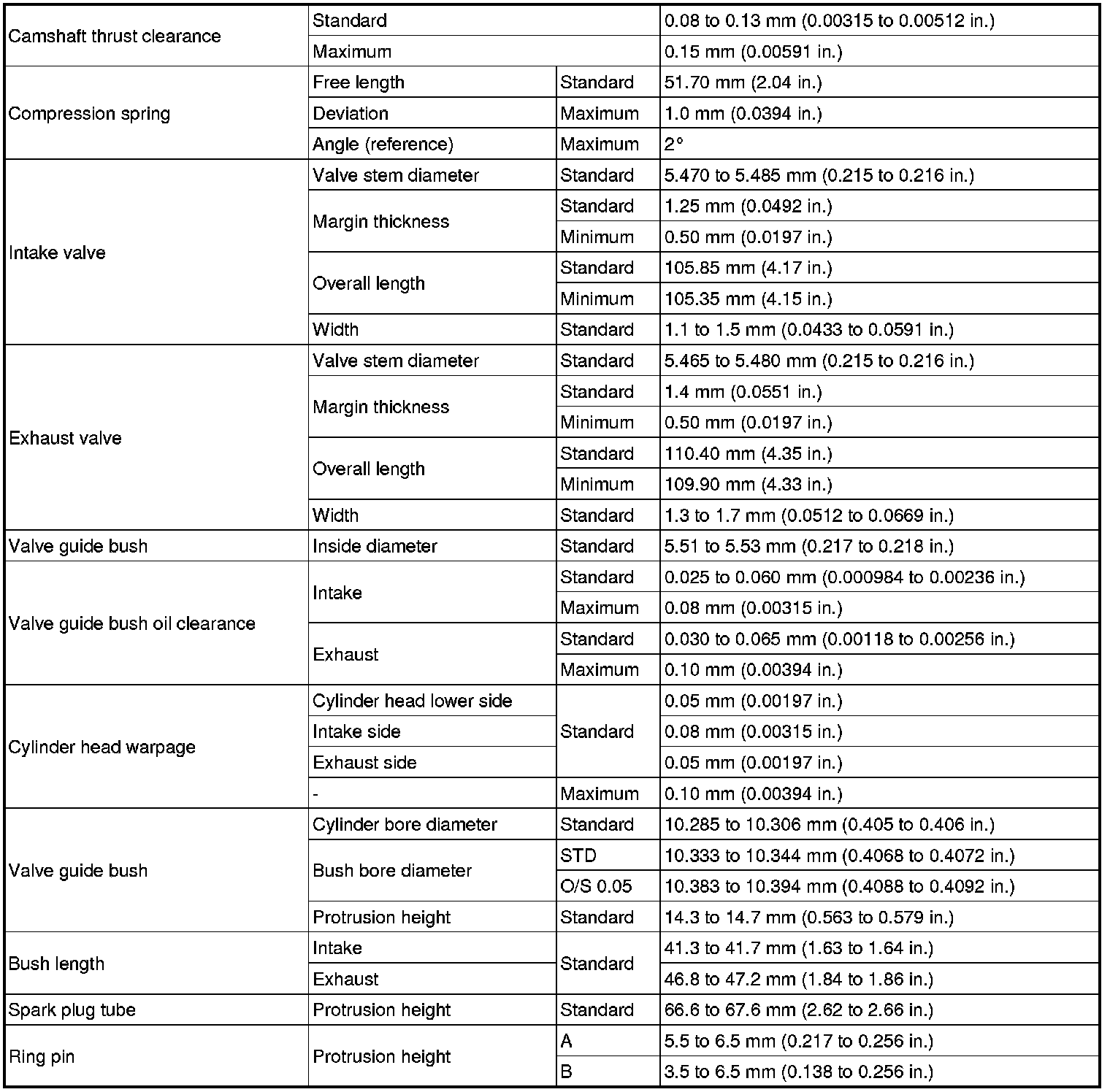

CYLINDER HEAD

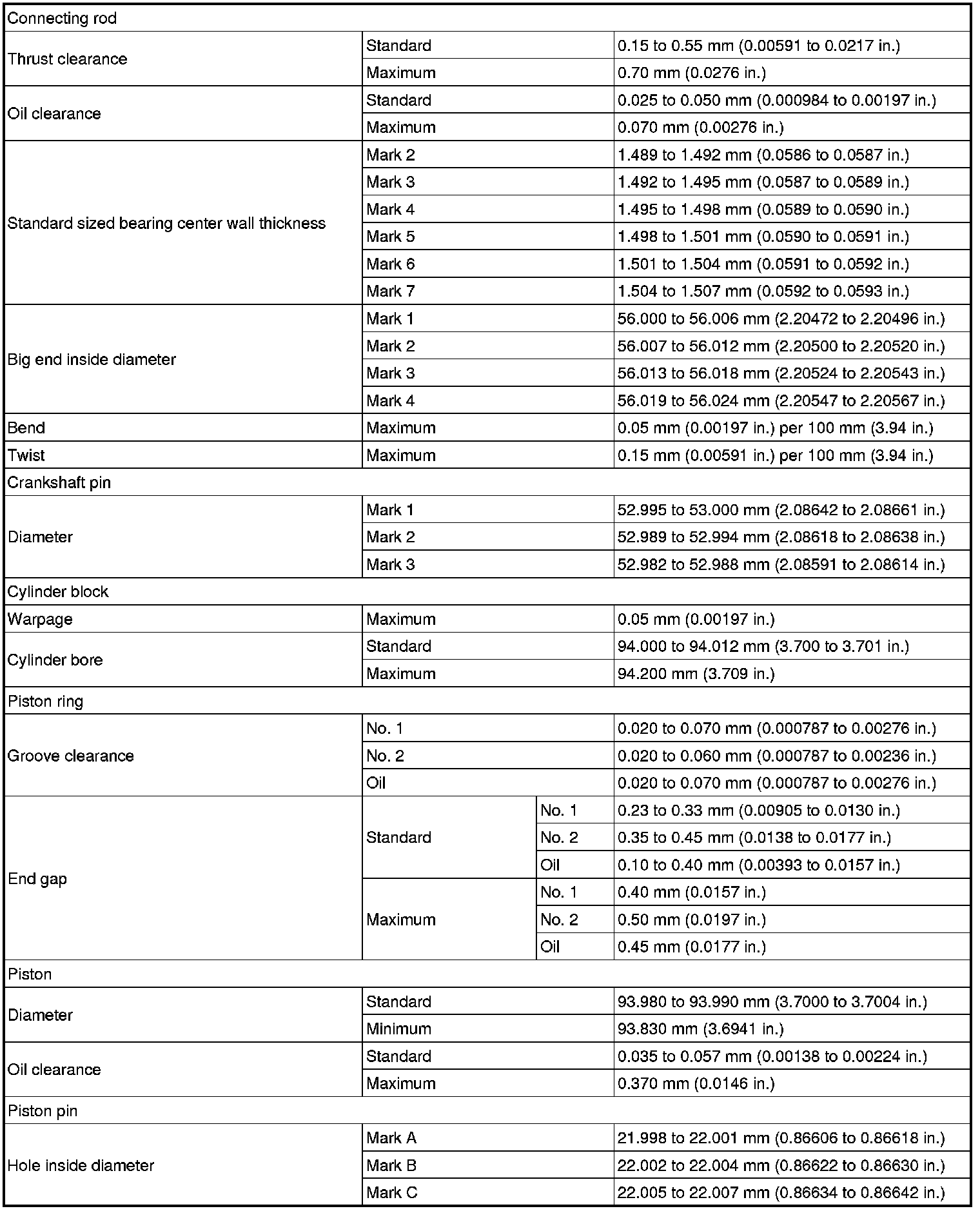

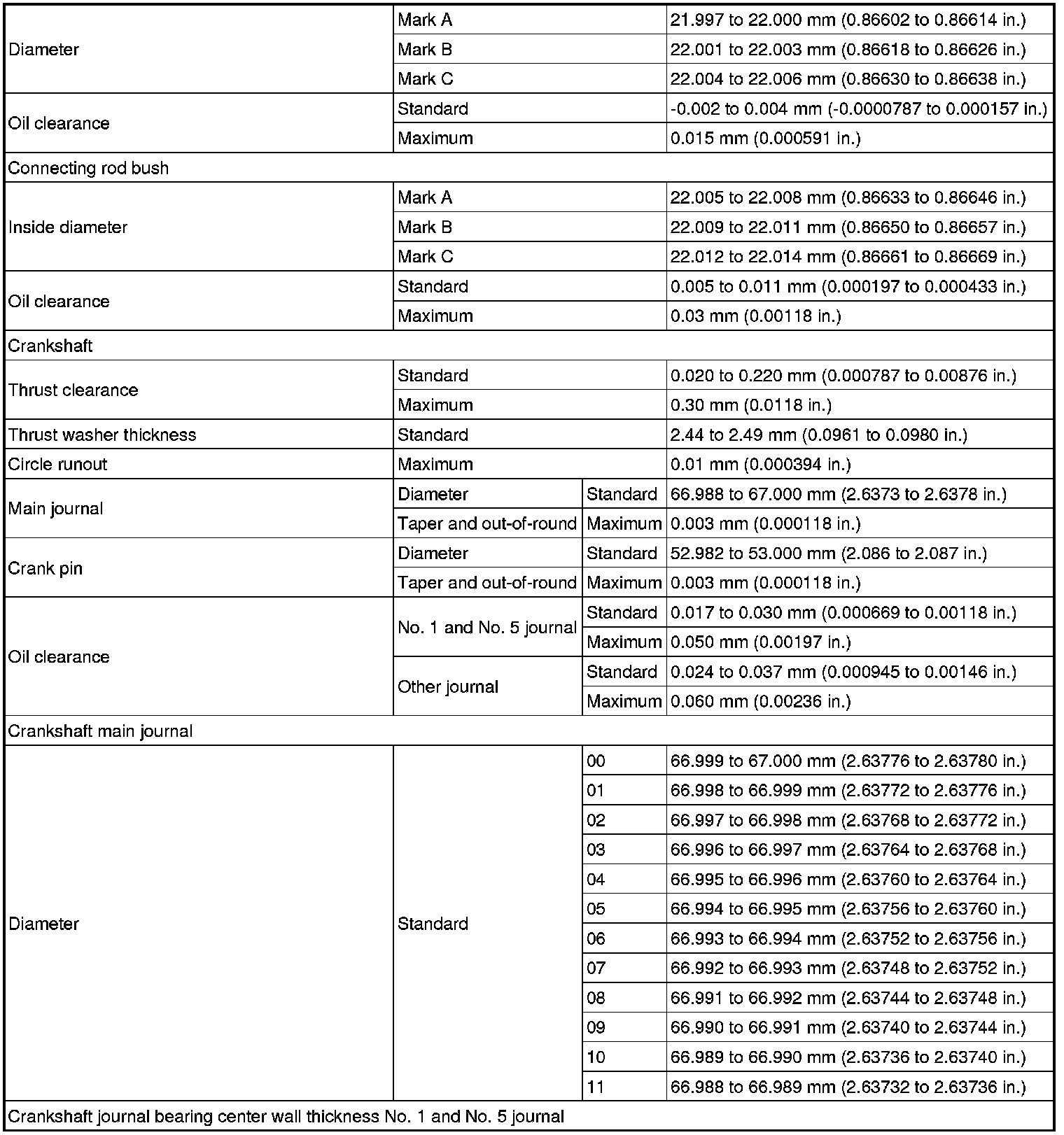

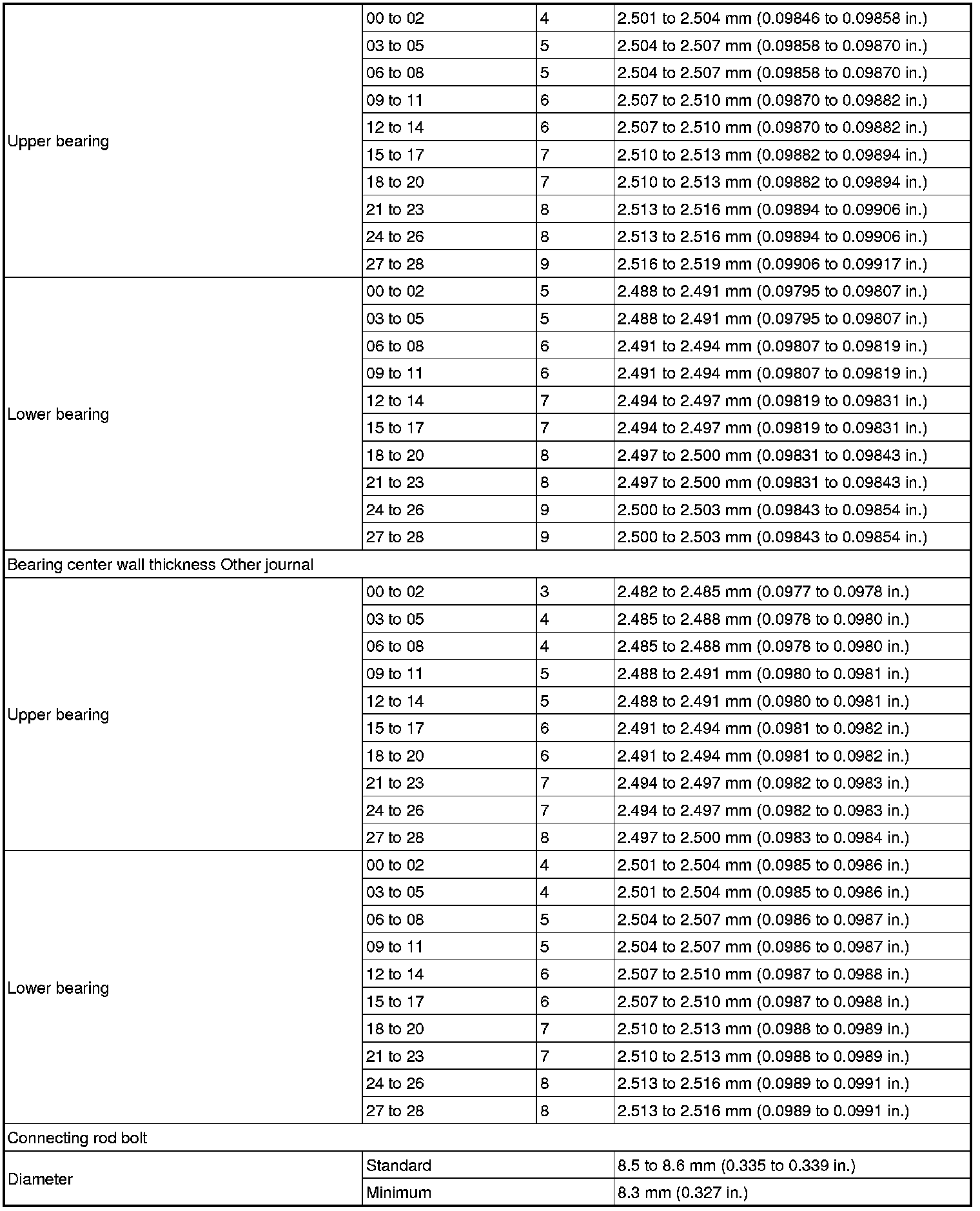

CYLINDER BLOCK

















ENGINE UNIT
