1UR-FSE IGNITION: IGNITION COIL AND SPARK PLUG: INSTALLATION

INSTALLATION

1. INSTALL SPARK PLUG
(a) Using a 16 mm plug wrench, install the 8 spark plugs.
Torque: 18 Nm (184 kgf-cm, 13 ft-lbf)
2. INSTALL IGNITION COIL ASSEMBLY

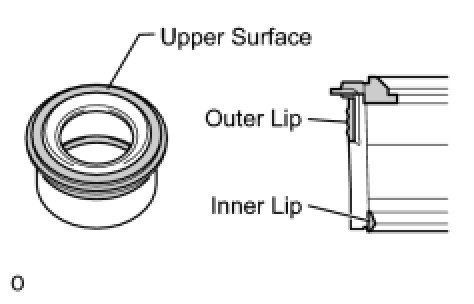

(a) Perform a visual inspection on the spark plug tube gasket.
Standard:

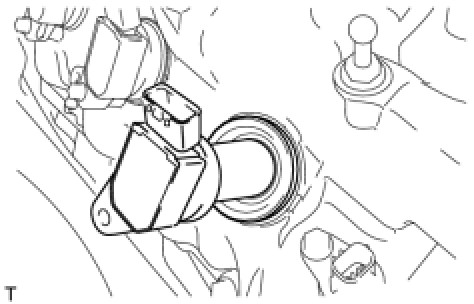

(b) Slide a new spark plug tube gasket onto the ignition coil as shown in the illustration.

(d) Install the 8 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(e) Connect the 8 ignition coil connectors.
3. INSTALL AIR CLEANER ASSEMBLY RH Installation

4. INSTALL AIR CLEANER ASSEMBLY LH Installation

5. INSTALL BATTERY TRAY

(a) Install the battery tray with the 3 bolts.
Torque: 5.4 Nm (55 kgf-cm, 47 in-lbf)
6. INSTALL BATTERY
(a) Install the battery.
(b) Install the battery insulator.

(c) Install the No. 2 battery clamp bolt and battery clamp with the nut.
Torque: 2.9 Nm (30 kgf-cm, 26 in-lbf)
(d) Connect the battery cable clamp.
(e) Connect the positive (+) battery cable to the battery terminal.
Torque: 5.6 Nm (57 kgf-cm, 50 in-lbf)
7. INSTALL SKID CONTROL ECU BRACKET Installation

8. INSTALL SKID CONTROL ECU Installation

9. INSTALL NO. 1 AIR CLEANER INLET Installation

10. INSTALL ENGINE ROOM SIDE COVER RH Installation

11. INSTALL ENGINE ROOM SIDE COVER LH Installation

12. INSTALL AIR CLEANER INLET COVER Installation

13. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
15. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

16. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
