Removal

1UR-FSE ENGINE CONTROL SYSTEM: KNOCK SENSOR: REMOVAL

REMOVAL

1. REMOVE INTAKE MANIFOLD
(a) Remove the intake manifold Removal

2. REMOVE ENGINE COVER SUB-ASSEMBLY Removal

3. REMOVE NO. 4 FUEL PIPE SUB-ASSEMBLY Removal

4. REMOVE SEPARATOR CASE






(a) Disconnect the fuel pressure sensor connector.

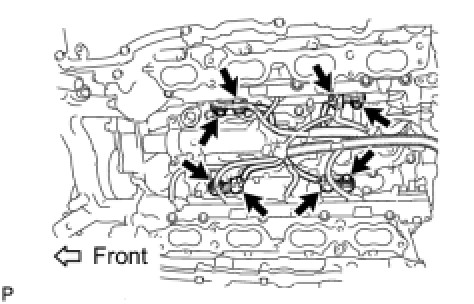

(b) Remove the 4 bolts and separator case.






5. REMOVE KNOCK SENSOR
(a) Disconnect the 4 knock sensor connectors.
(b) Remove the 4 bolts and 4 knock sensors.
