Components

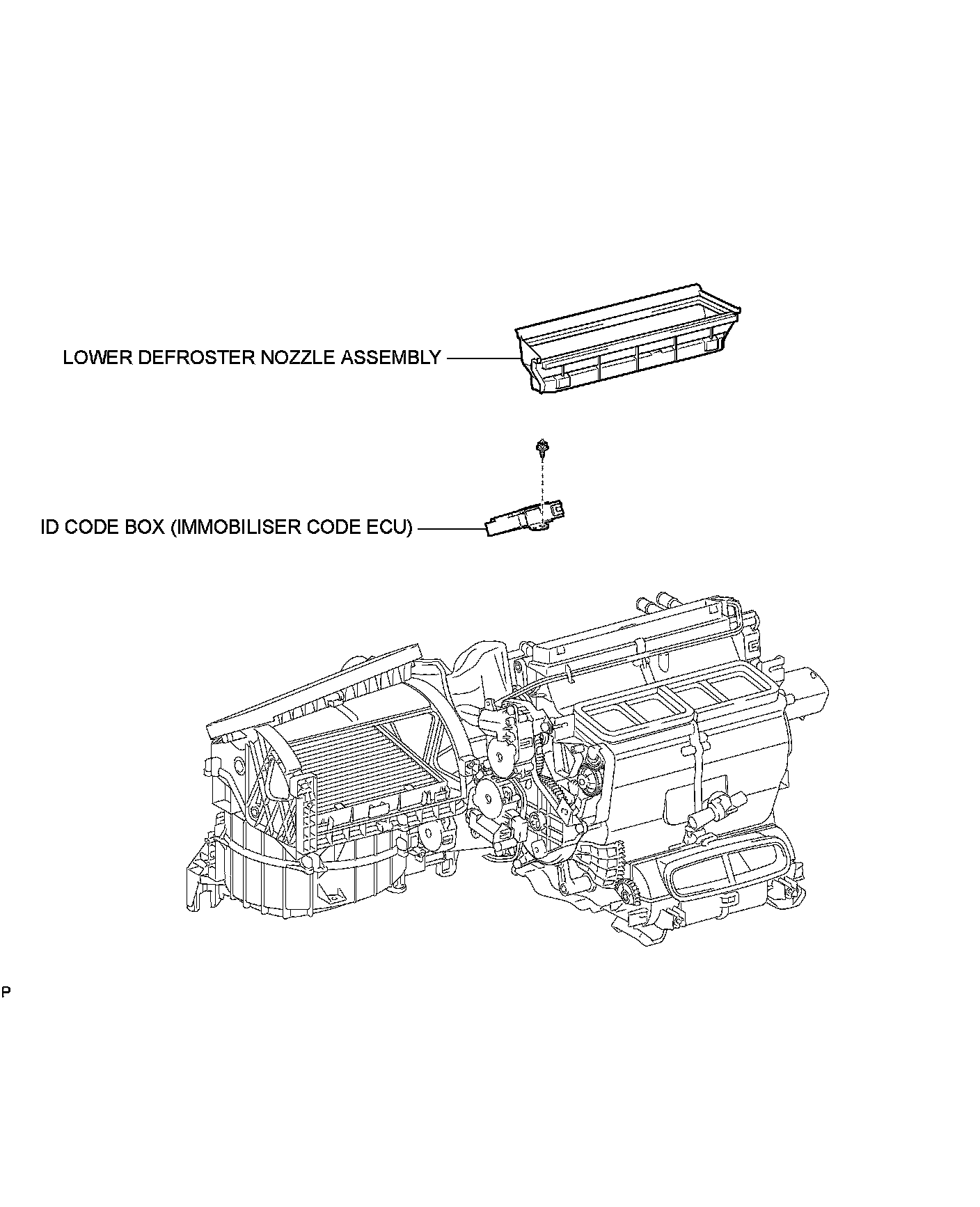

THEFT DETERRENT / KEYLESS ENTRY: ID CODE BOX: COMPONENTS

THEFT DETERRENT / KEYLESS ENTRY: ID CODE BOX: COMPONENTS

ILLUSTRATION
