Installation

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Power Tilt and Power Telescopic Steering Column):

INSTALLATION

1. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

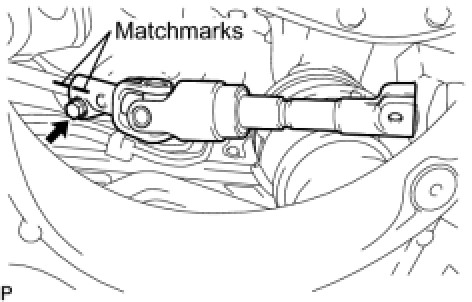

(a) Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering main shaft.
(b) Install the bolt.
Torque: 35 Nm (360 kgf-cm, 26 ft-lbf)
2. INSTALL STEERING COLUMN ASSEMBLY

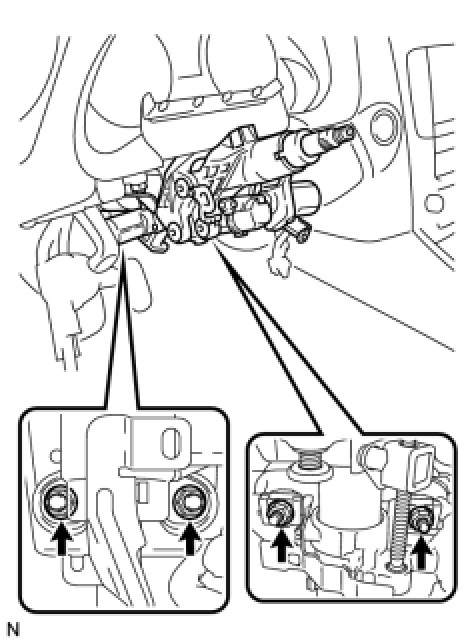

(a) Install the steering column assembly with the 4 nuts.
Torque: 26 Nm (260 kgf-cm, 19 ft-lbf)
(b) Connect the connectors and wire harness clamps to the steering column assembly.

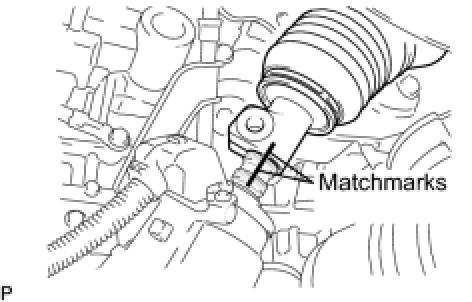

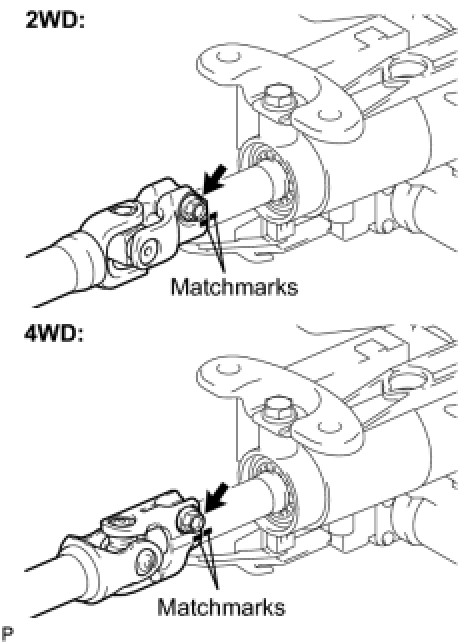

(a) Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering sliding yoke sub-assembly.
(b) Temporarily install the bolt.
NOTE: Do not tighten the bolt.

(d) Install bolt (A) and tighten the 2 bolts.
Torque: 35 Nm (360 kgf-cm, 26 ft-lbf)

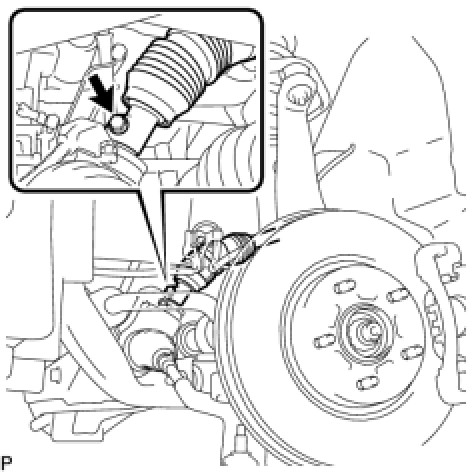

4. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 4WD)

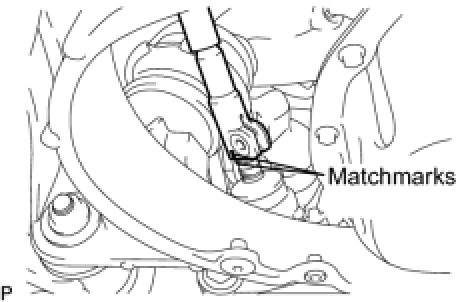

(a) Align the matchmarks on the No. 2 steering intermediate shaft assembly and the power steering gear assembly.

(b) Install the bolt.
Torque: 35 Nm (360 kgf-cm, 26 ft-lbf)

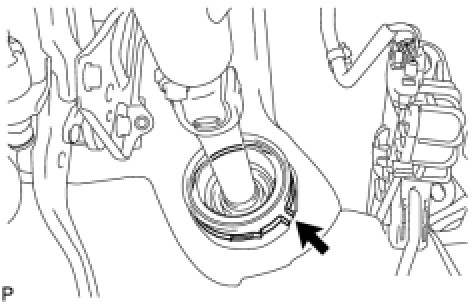

5. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

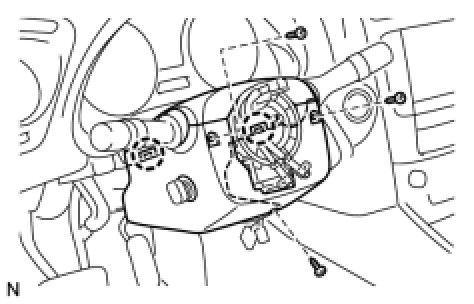

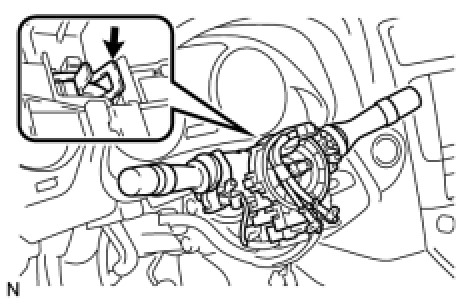

6. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

(a) Install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly with the clamp.
(b) Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
7. INSTALL TILT AND TELESCOPIC SWITCH

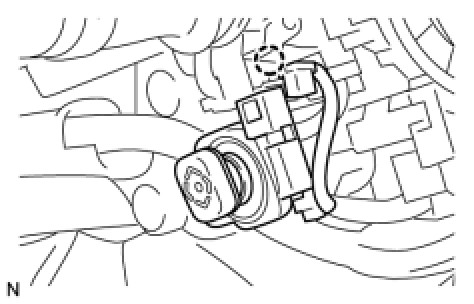

(a) Engage the claw to install the tilt and telescopic switch.
(b) Connect the connector.
8. INSTALL STEERING COLUMN COVER

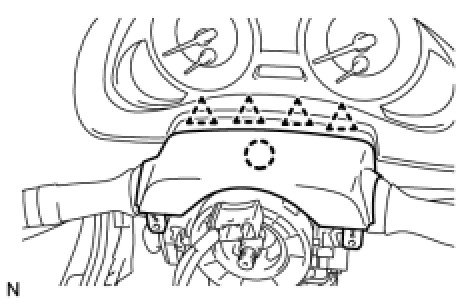

(a) Engage the claw to install the steering column cover upper.
(b) Engage the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.

(c) Engage the 2 claws to install the steering column cover lower.
NOTE: Do not damage the tilt and telescopic switch.

(d) Install the 3 screws.
Torque: 2.0 Nm (20 kgf-cm, 18 in-lbf)
9. ADJUST SPIRAL CABLE SUB- ASSEMBLY Installation

10. INSTALL STEERING WHEEL ASSEMBLY

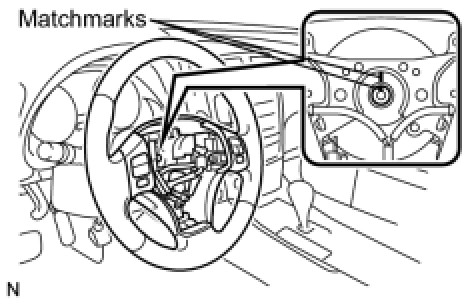

(a) Align the matchmarks on the steering wheel assembly and steering main shaft assembly.
(b) Install the steering wheel assembly set nut.
Torque: 50 Nm (510 kgf-cm, 37 ft-lbf)
11. INSPECT STEERING WHEEL CENTER POINT
12. INSTALL NO. 1 AIR DUCT

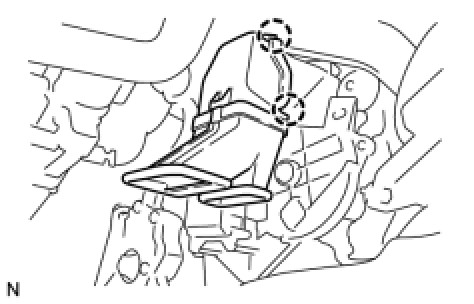

(a) Engage the 2 claws to install the No. 1 air duct.
13. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

14. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Installation

15. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

16. INSTALL INSTRUMENT SIDE PANEL LH Installation

17. INSPECT STEERING WHEEL PAD Installation

18. INSTALL STEERING WHEEL PAD Installation

19. INSTALL NO. 3 STEERING WHEEL COVER LOWER Installation

20. INSTALL NO. 2 STEERING WHEEL COVER LOWER Installation

21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

22. INSPECT SRS WARNING LIGHT Check Mode Procedure
