Removal

SEAT BELT: SEAT BELT CONTROL ECU:

REMOVAL

1. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER
2. REMOVE SPARE WHEEL COVER
3. REMOVE DECK SIDE TRIM BOX LH
4. REMOVE DECK SIDE TRIM BOX RH
5. REMOVE ROPE HOOK ASSEMBLY Removal

6. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER Removal

7. REMOVE NO. 2 ROOM LIGHT ASSEMBLY Removal

8. REMOVE ROPE HOOK Removal

9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal

10. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal

11. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER LH Removal

12. REMOVE SEAT BELT CONTROL ECU

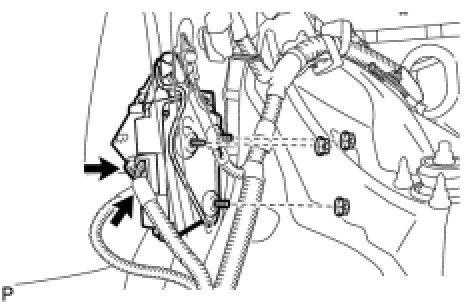

(a) Disconnect the connectors.

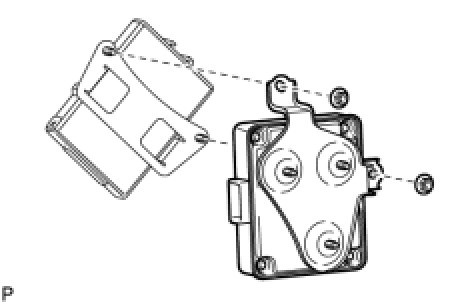

(b) Remove the 3 nuts and remove the seat belt control ECU and the clearance warning ECU as a unit.
