Installation

4GR-FSE STARTING: ENGINE SWITCH:

INSTALLATION

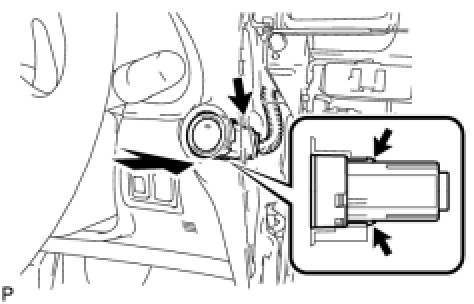

1. INSTALL ENGINE SWITCH






(a) Attach the 2 claws to install the switch.
(b) Connect the switch connector.
2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) Installation

3. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) Installation

4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Installation

5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

6. INSTALL CONSOLE BOX Installation

7. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

8. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY Installation

9. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

10. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

11. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation

12. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

13. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
