Installation

AIR CONDITIONING AMPLIFIER:

INSTALLATION

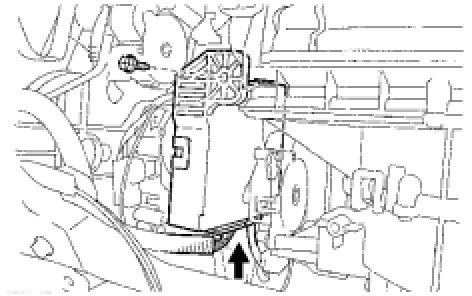

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY






(a) Install the air conditioning amplifier with the screw and connect the connector.

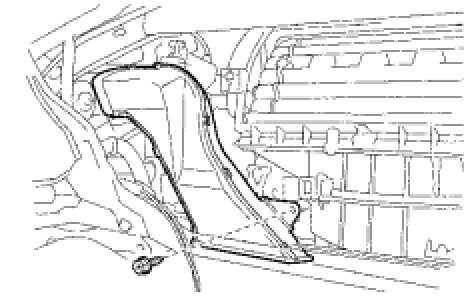

2. INSTALL NO.2 AIR DUCT






(a) Install the No. 2 air duct and screw.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

4. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

6. INSTALL SIDE INSTRUMENT PANEL RH Installation

7. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation

8. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
9. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. PERFORM INITIALIZATION
NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal Repair Instruction - Initialization

12. INSPECT SRS WARNING LIGHT Diagnosis System
