Installation

NAVIGATION ECU:

INSTALLATION

1. INSTALL NAVIGATION ECU






(a) Install the navigation ECU with the 4 bolts.






(b) Connect the connectors.
2. INSTALL MULTI-DISPLAY ASSEMBLY
3. INSTALL NO. 2 RADIO BRACKET Installation

4. INSTALL NO. 1 RADIO BRACKET Installation

5. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY Installation

6. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Installation

7. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation

8. INSTALL CONSOLE BOX Installation

9. INSTALL CONSOLE BOX REGISTER ASSEMBLY Installation

10. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY Installation

11. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

12. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Installation

13. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Installation

14. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

15. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) Installation

16. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
17. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
18. INSERT MAP DISC

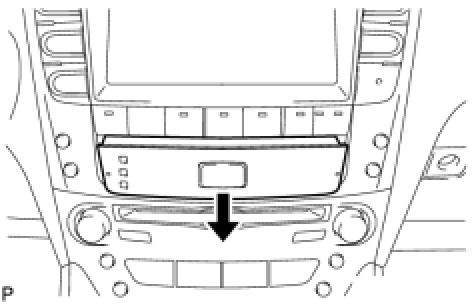

(a) Remove the clock assembly
(b) Turn the engine switch on (ACC).

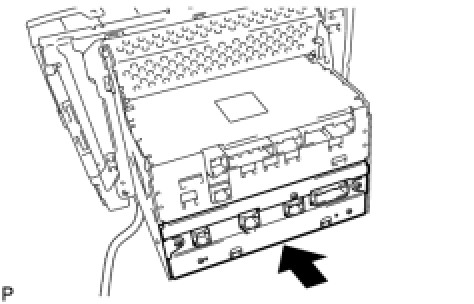

(c) Insert the map disc.

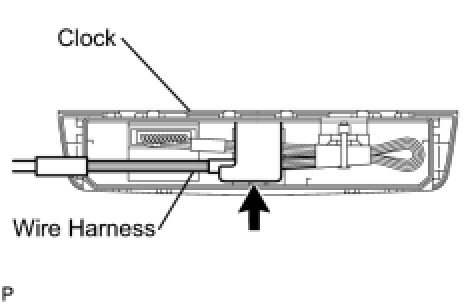

(d) Check that the wire harness is in the position shown in the illustration.

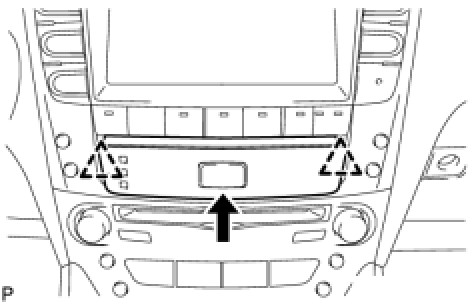

(e) Install the clock assembly.
19. ADJUST CLOCK
