A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Pre-Collision System
Pre-Collision System
PRE-COLLISION SYSTEM:
DIAGNOSTIC TROUBLE CODE CHART
PRE-COLLISION SYSTEM DIAGNOSTIC TROUBLE CODE CHART

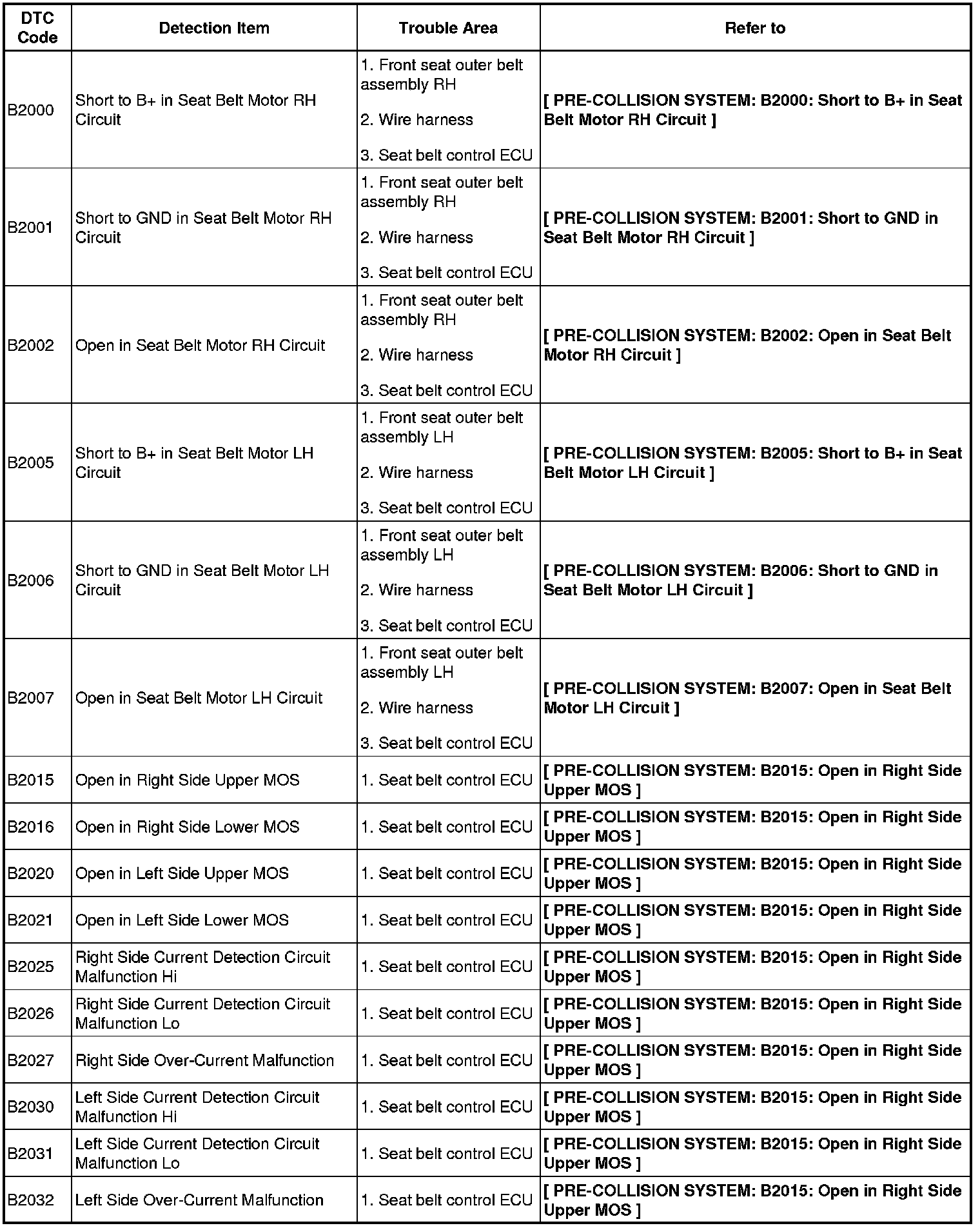

B2000 - B2032:

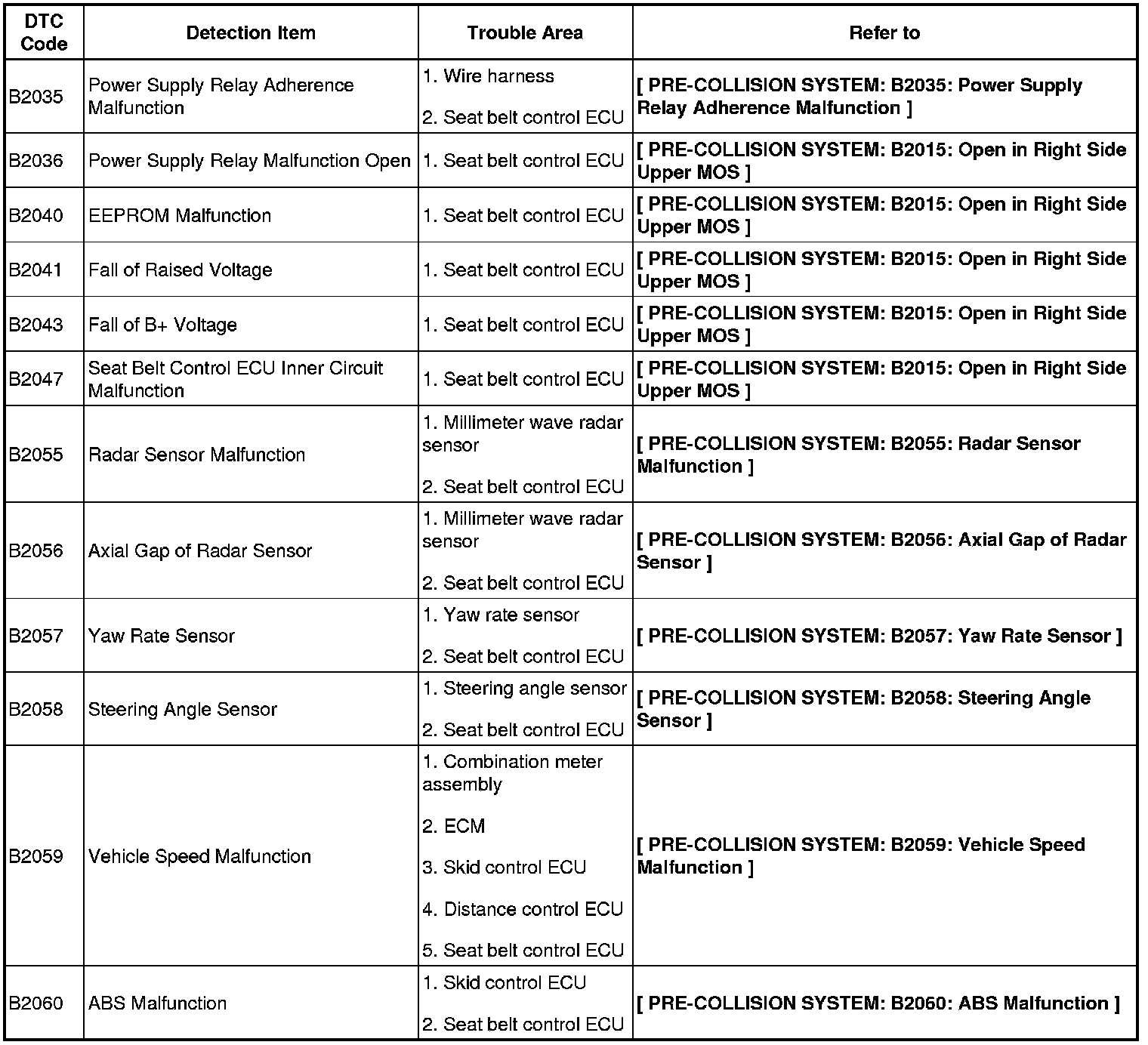

B2035 - B2060:

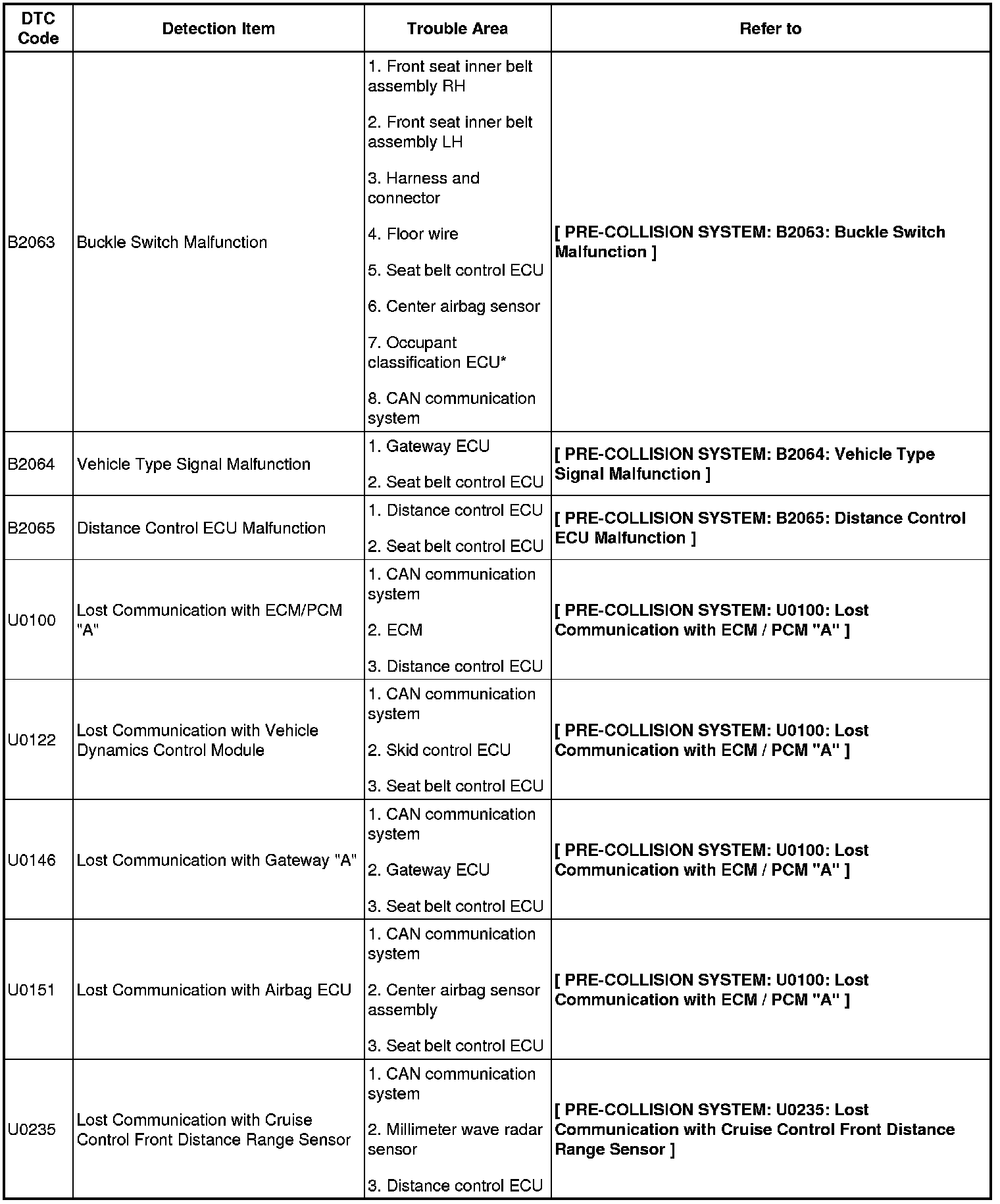

B2063 - U0235:

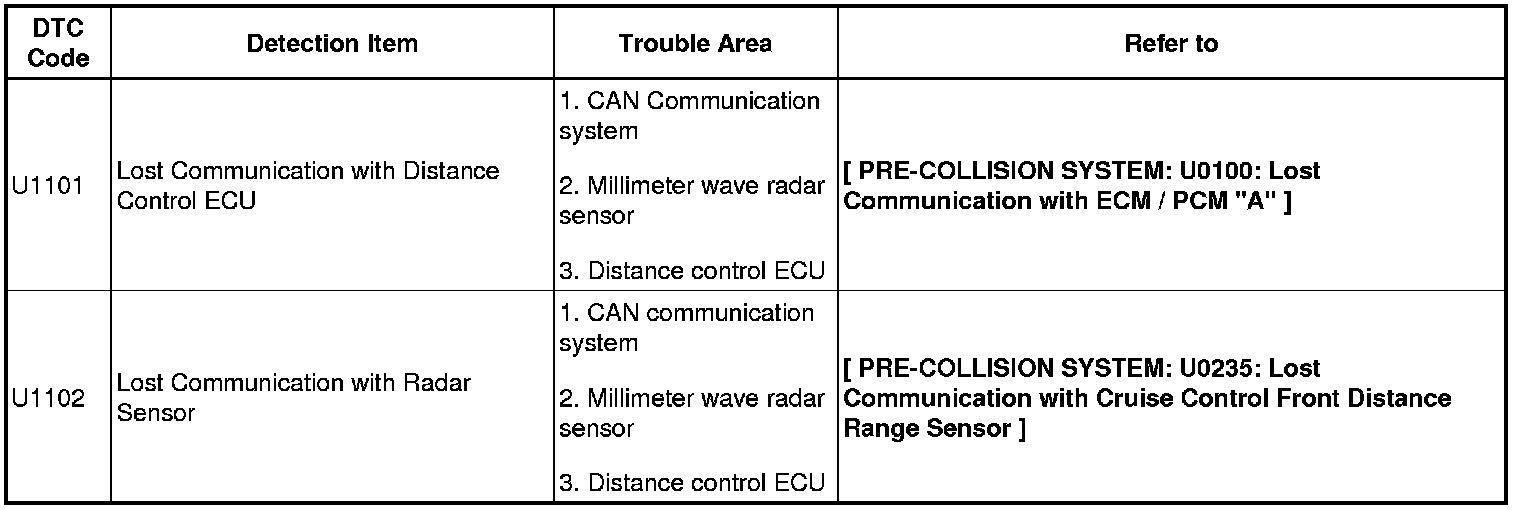

U1101 - U1102:
HINT:
w/ Occupant classification system
