Differential Assembly: Testing and Inspection









DIFFERENTIAL: DIFFERENTIAL SYSTEM: PROBLEM SYMPTOMS TABLE

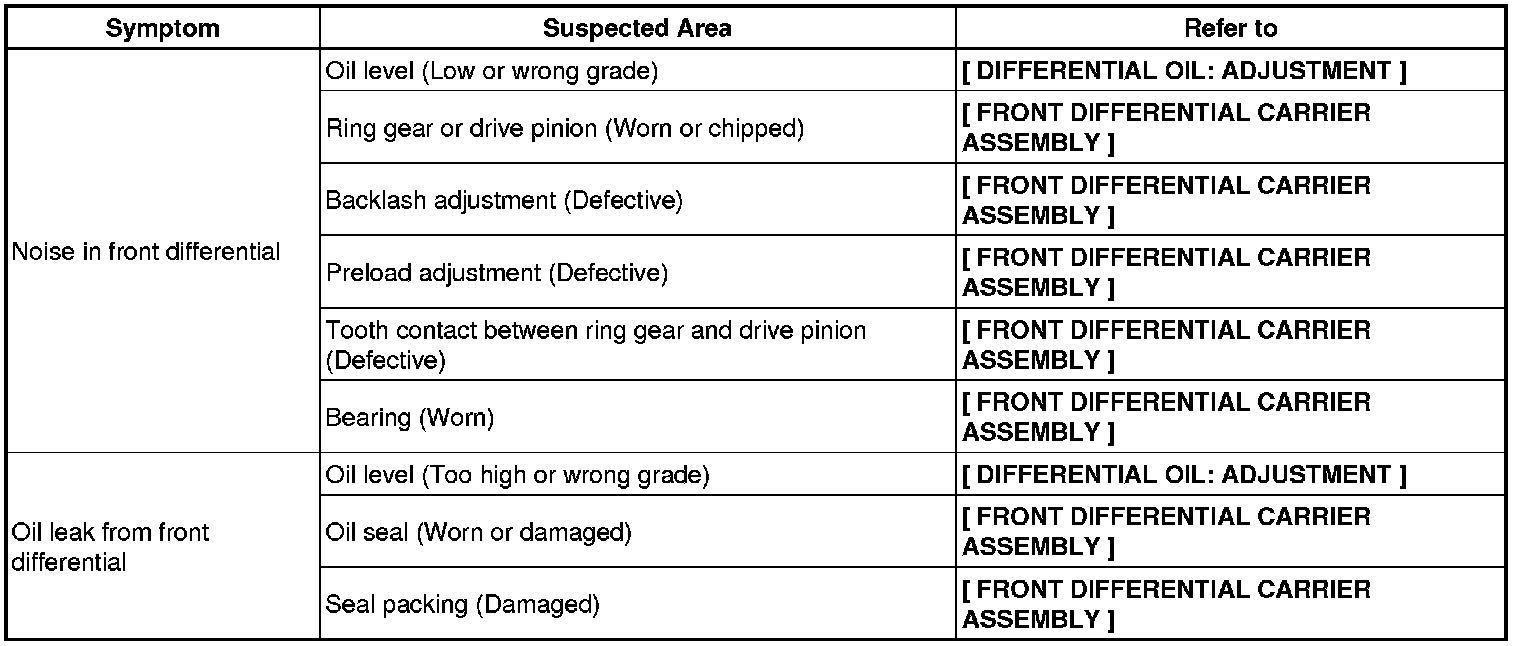

Front Differential (for 4WD)

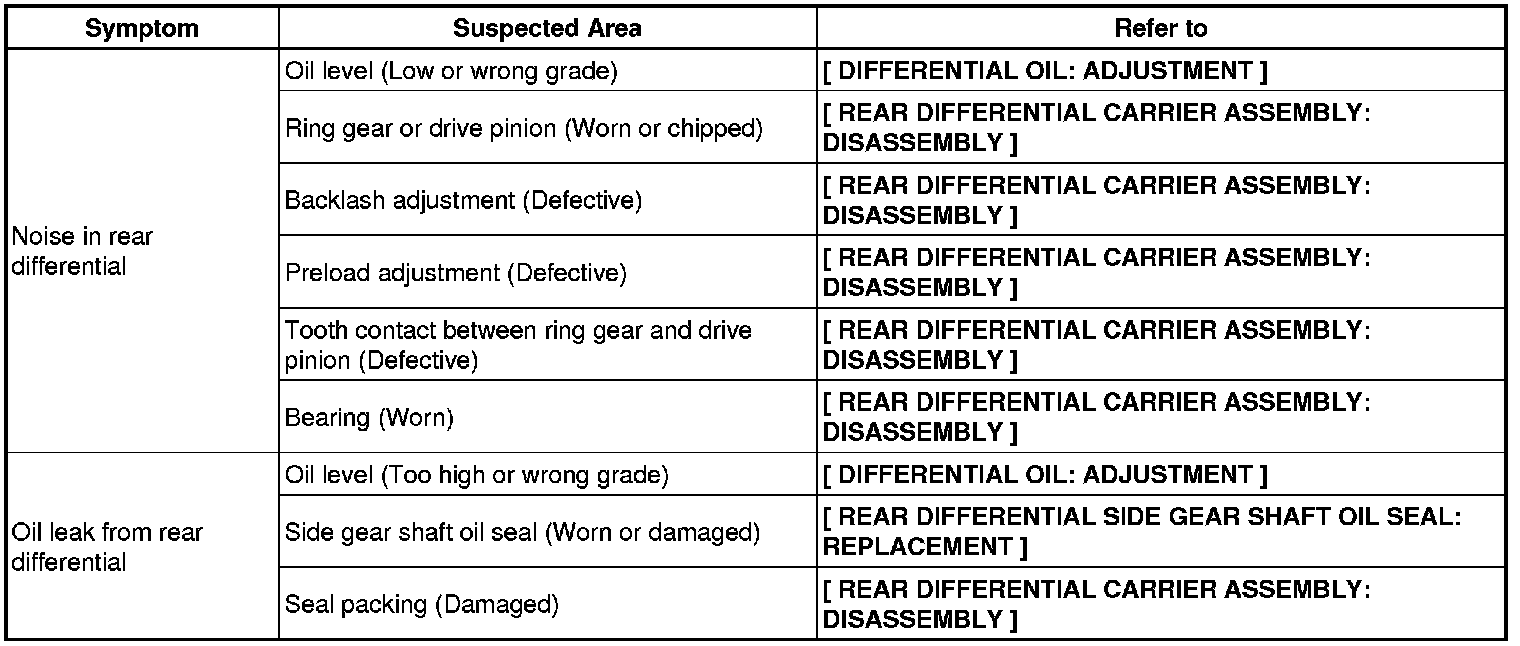

Rear Differential
