Removal

2GR-FSE CHARGING: GENERATOR: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE ENGINE UNDER COVER (for 2WD)
3. REMOVE ENGINE UNDER COVER (for 4WD)
4. REMOVE COOL AIR INTAKE DUCT SEAL Removal

5. REMOVE ENGINE ROOM SIDE COVER LH Removal

6. REMOVE ENGINE ROOM SIDE COVER RH Removal

7. REMOVE V-BANK COVER Removal

8. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

9. REMOVE NO. 1 AIR CLEANER INLET Removal

10. DRAIN ENGINE COOLANT Service and Repair

11. REMOVE RADIATOR RESERVOIR ASSEMBLY Removal

12. REMOVE V-RIBBED BELT Removal







13. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY
(a) Remove the bolt, pulley cover plate and idler pulley.
14. REMOVE COMPRESSOR ASSEMBLY
(a) Remove the compressor with pulley for 2WD Removal or 4WD Removal.
15. REMOVE GENERATOR ASSEMBLY

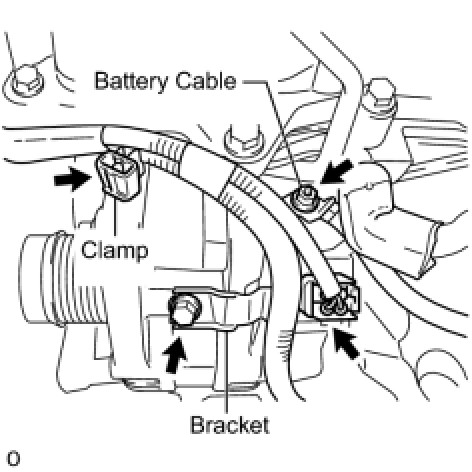

(a) Detach the clamp, and remove the bolt from the generator.
(b) Disconnect the generator connector.
(c) Detach the rubber cap, and then remove the nut and battery cable.






(d) Remove the nut, bolt and generator bracket.






(e) Remove the 2 bolts and generator.
