A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Pre-Collision System
Pre-Collision System

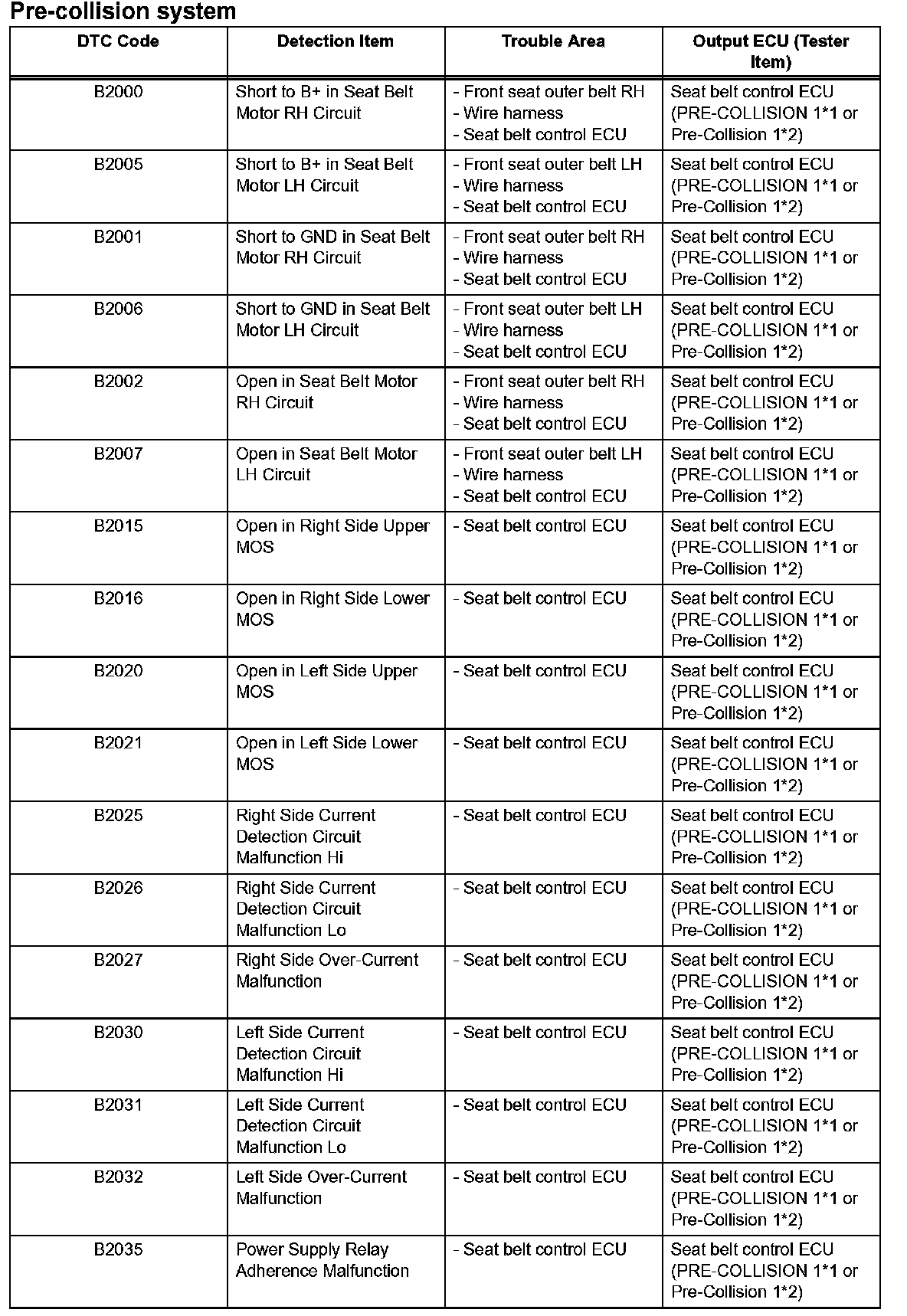

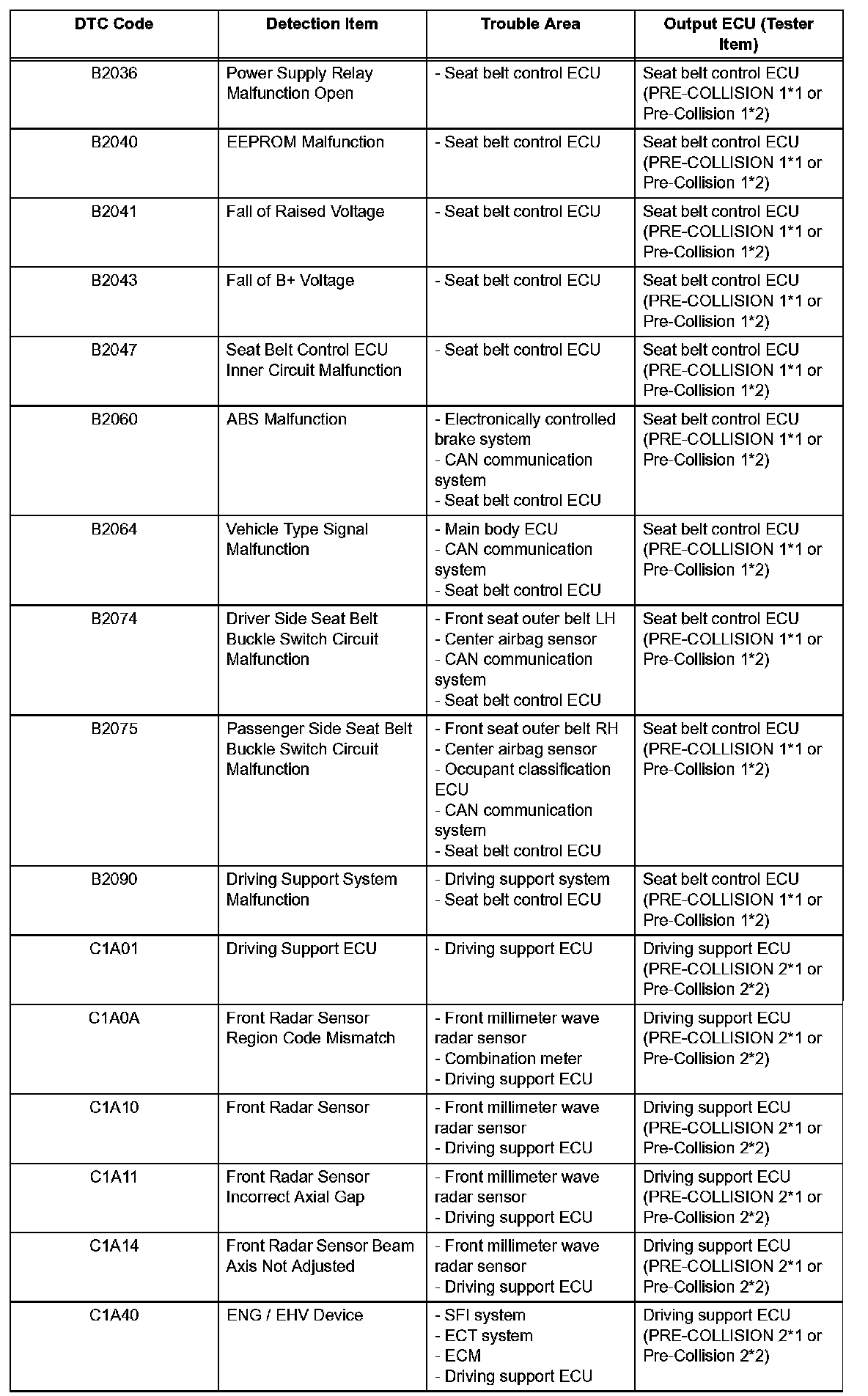

DIAGNOSTIC TROUBLE CODE CHART
B2000-B2035:
B2036-C1A40:
C1A41-U1104:
HINT:
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code.
