ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

NOTE: When removing the part, turn the ignition switch OFF.

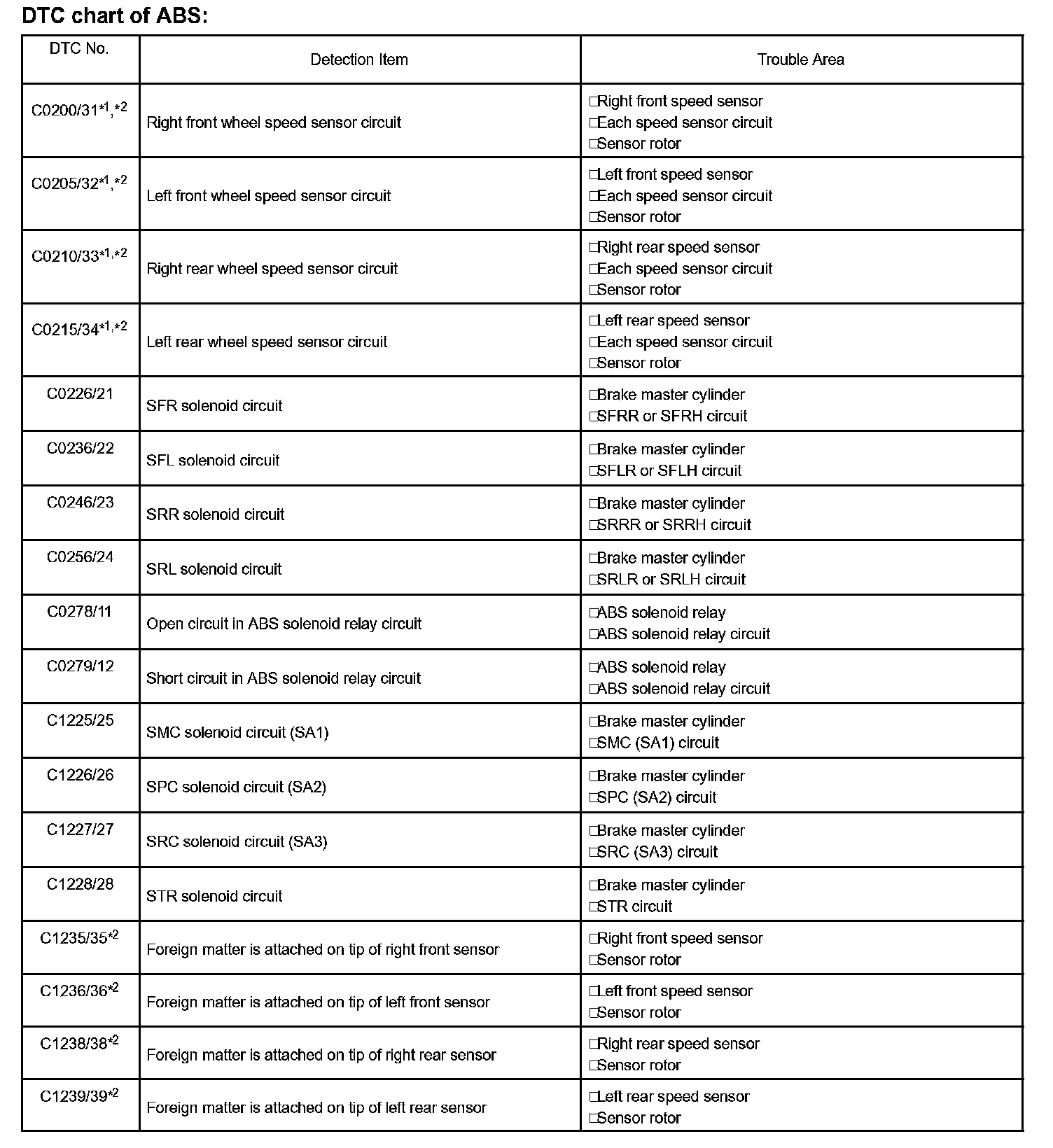

C0200/31*1*2 - C1239/39*2:

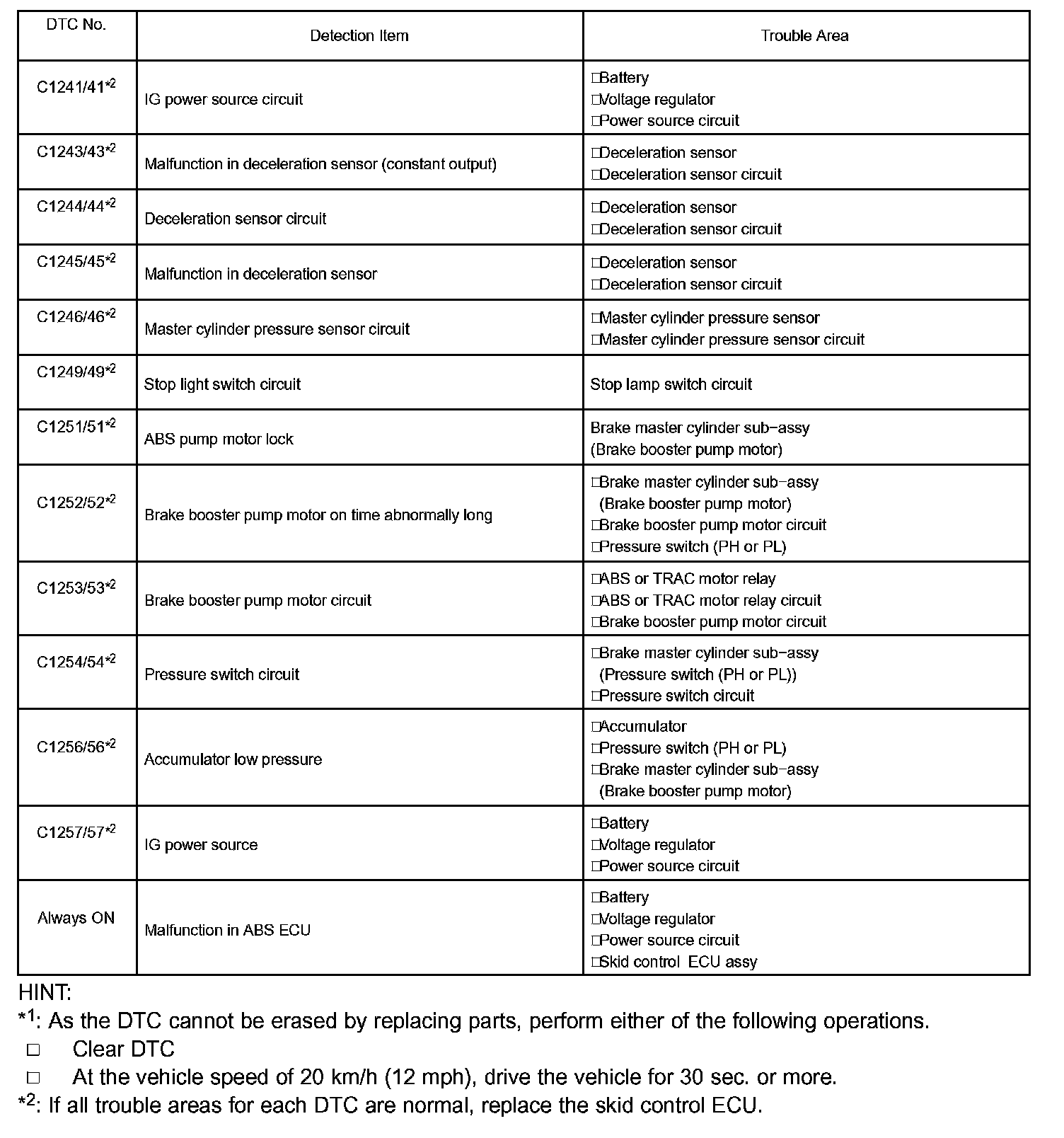

C1241/41*2 - Always On:

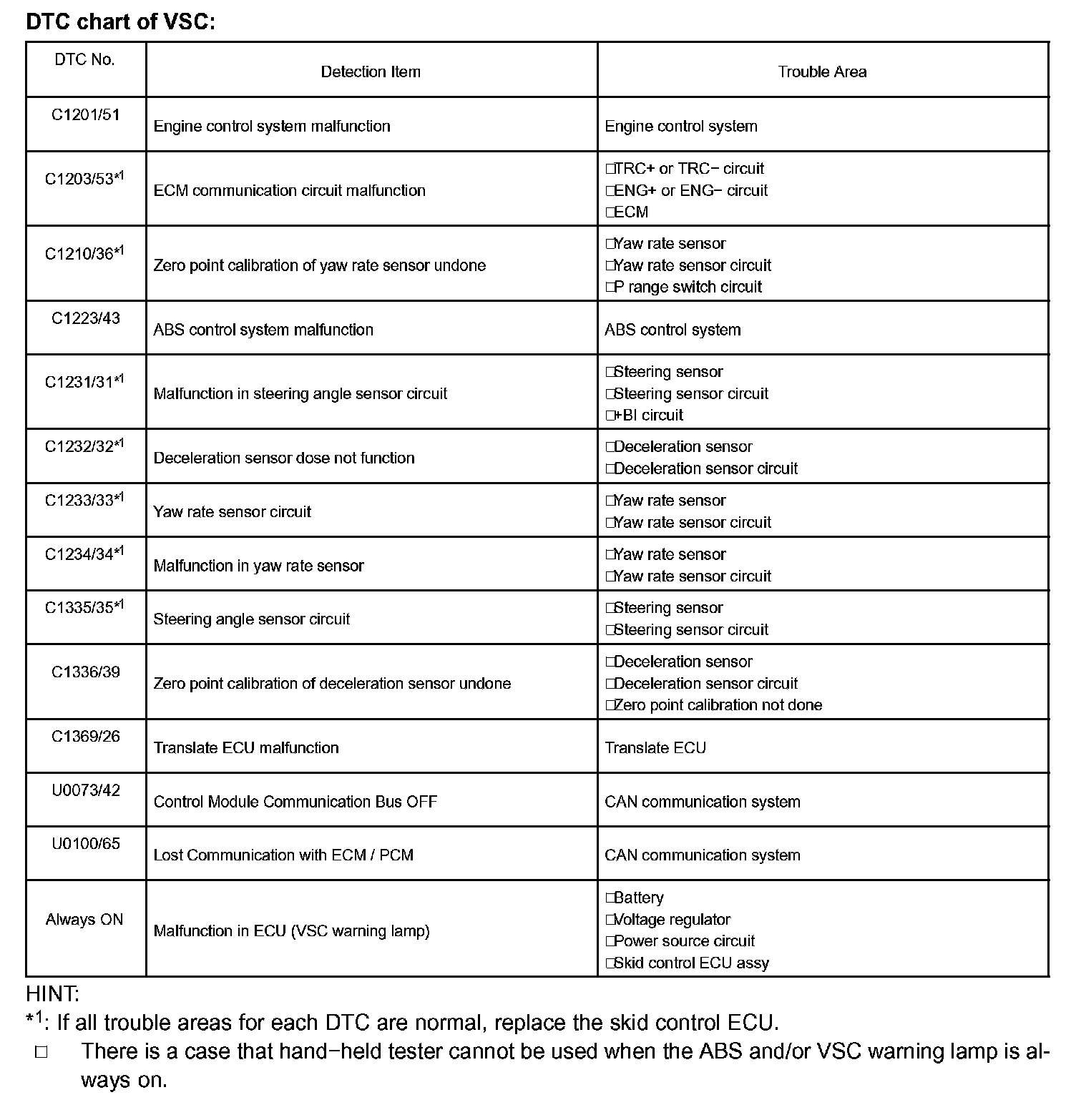

C1201/51 - Always On:

HINT:
- If an abnormality is not found when inspecting parts, inspect the ECU and ground points for poor contact.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the image number of the DTC in the chart.
- When 2 or more DTCs are detected, perform inspections on each circuit until the problem is identified.

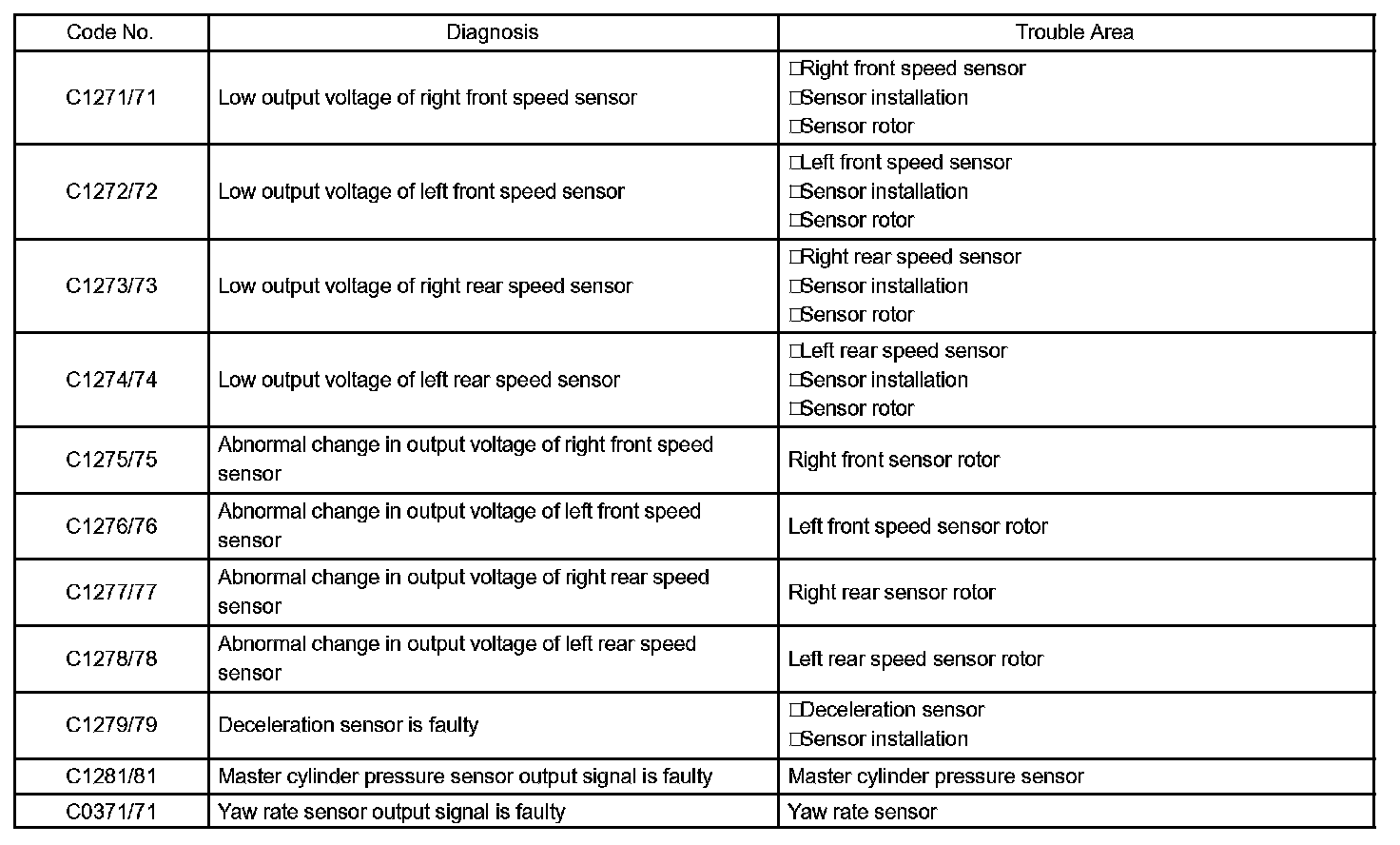

C1271/71-C0371/71:

DTC of TEST MODE CODE

HINT: The codes in this table are output only in TEST MODE.
