Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

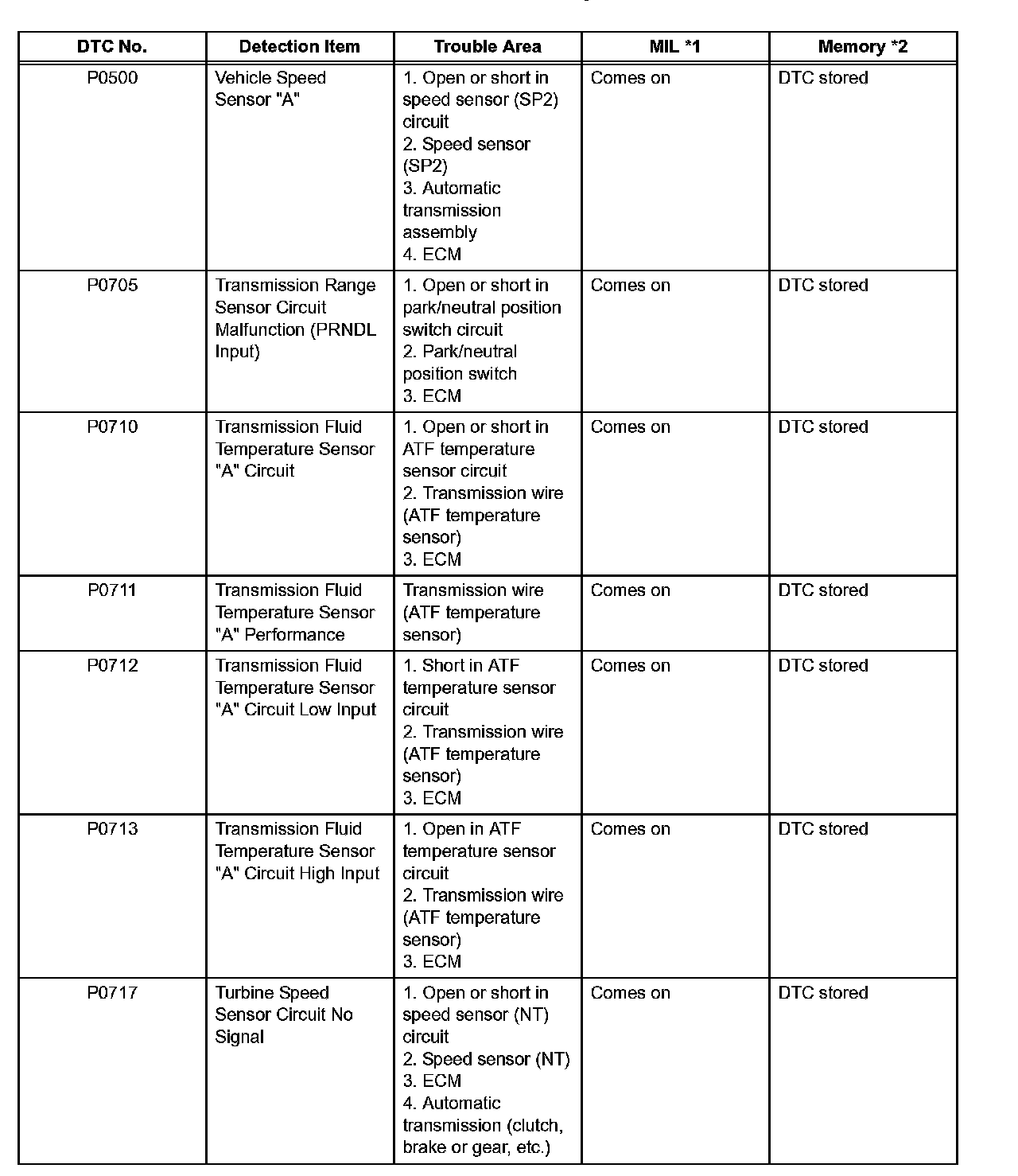

DTC P0500-P0717:

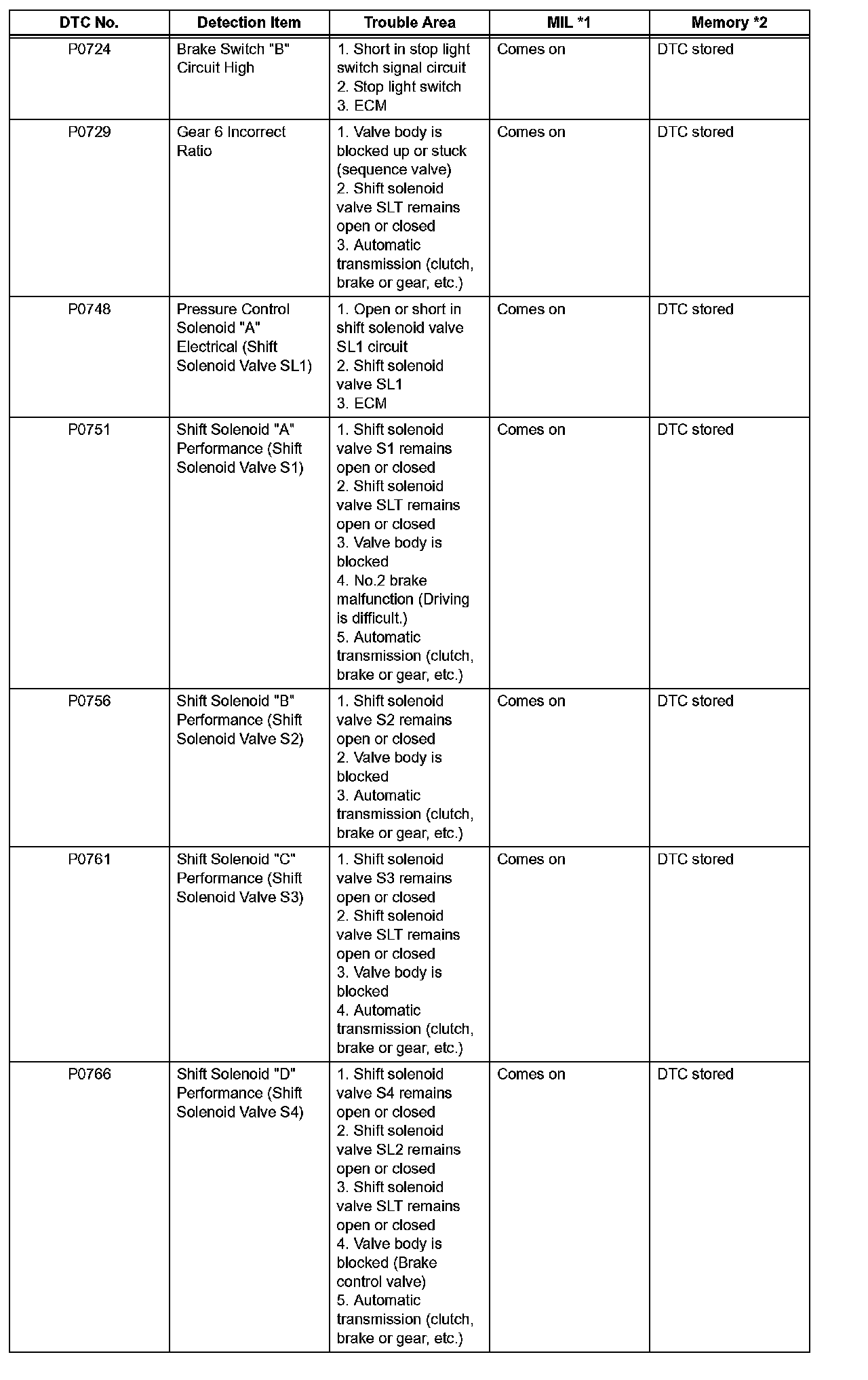

DTC P0724-P0766:

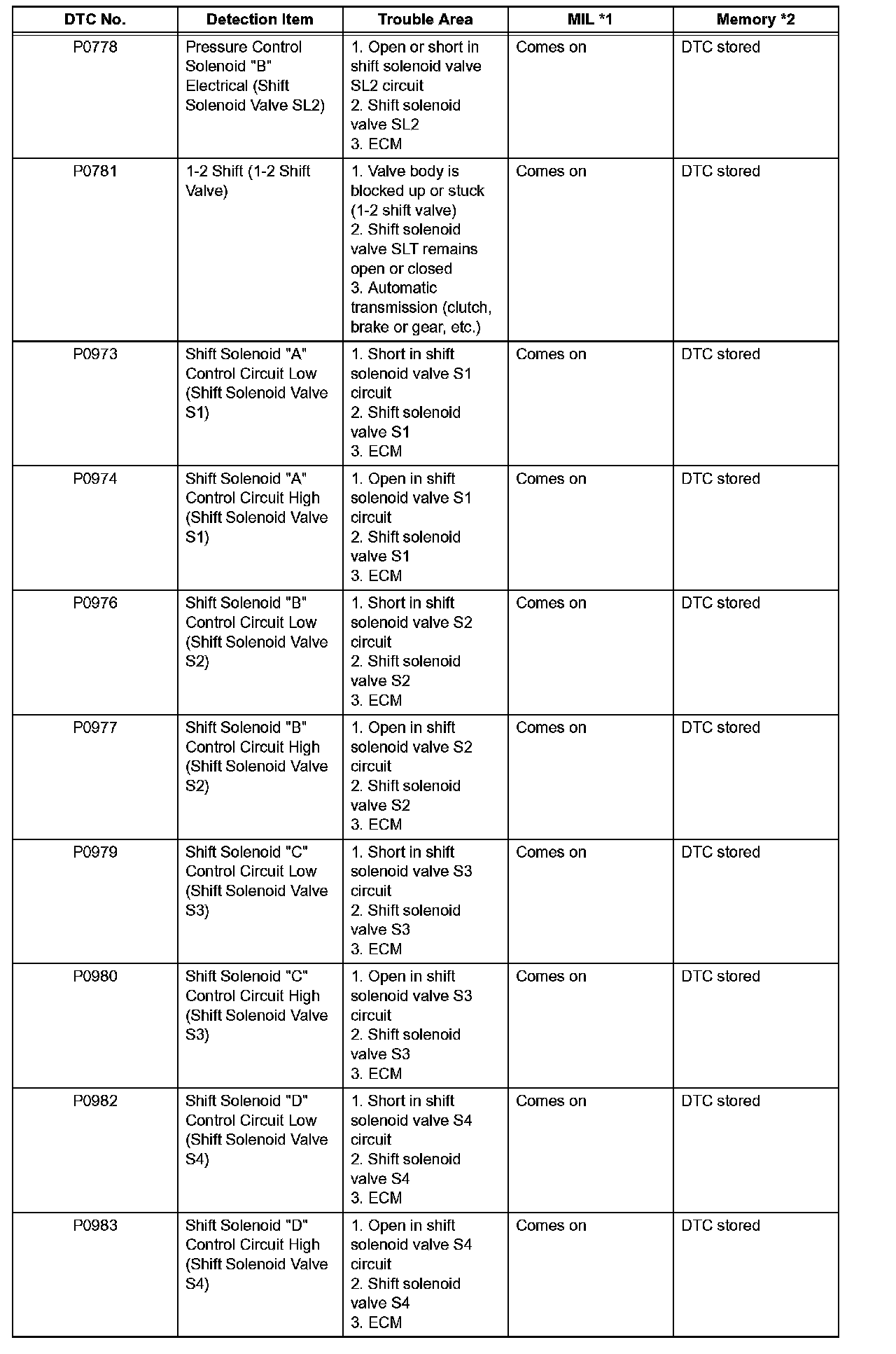

DTC P0778-P0983:

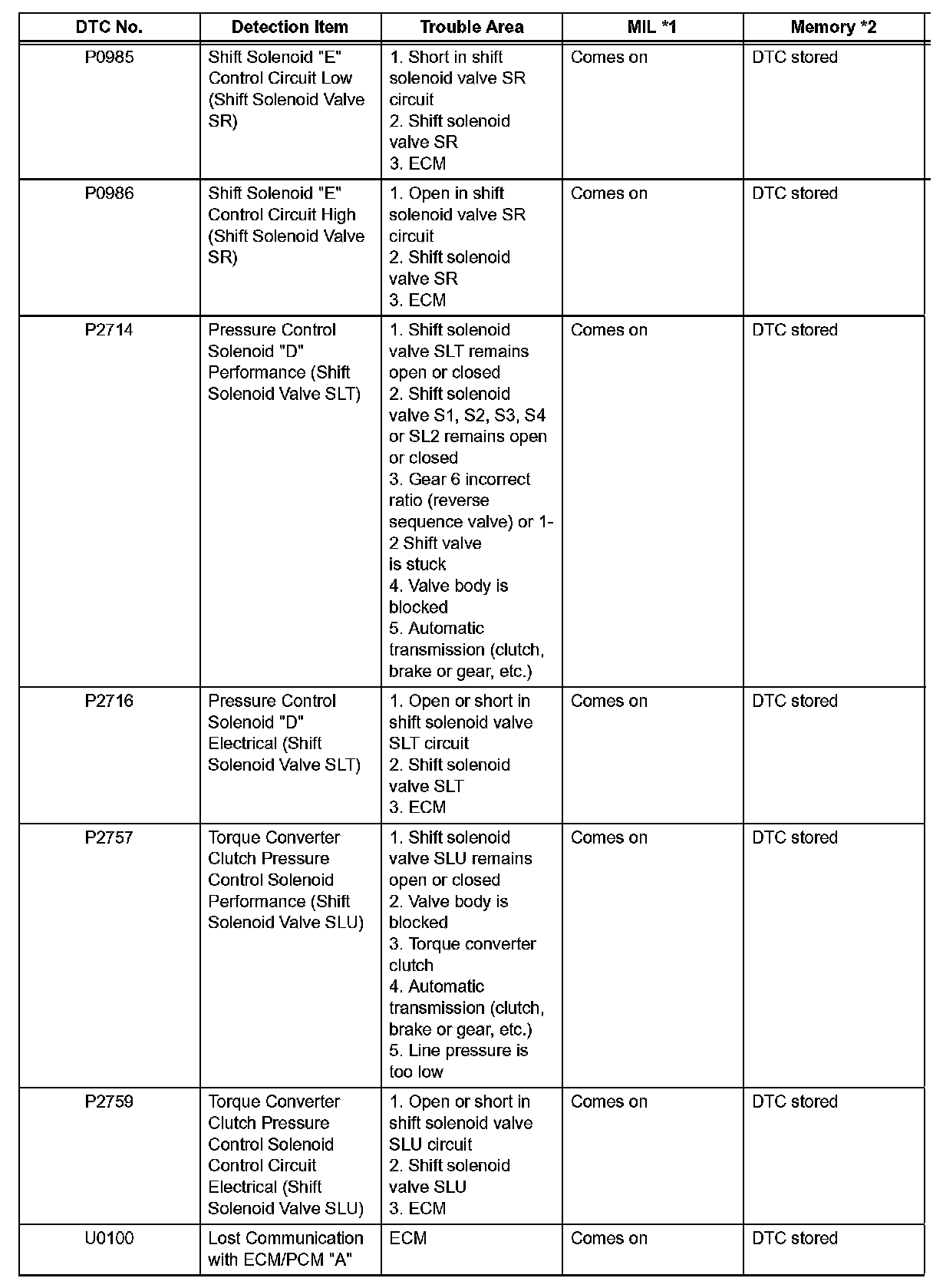

DTC P0985-U0100:

If a DTC is displayed during the DTC check, check the parts listed in the table and proceed.

HINT:
^ *1: Comes on MIL (Malfunction Indicator Lamp) light up
^ *2: "DTC stored" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
^ This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
