SFI System

DIAGNOSTIC TROUBLE CODE CHART

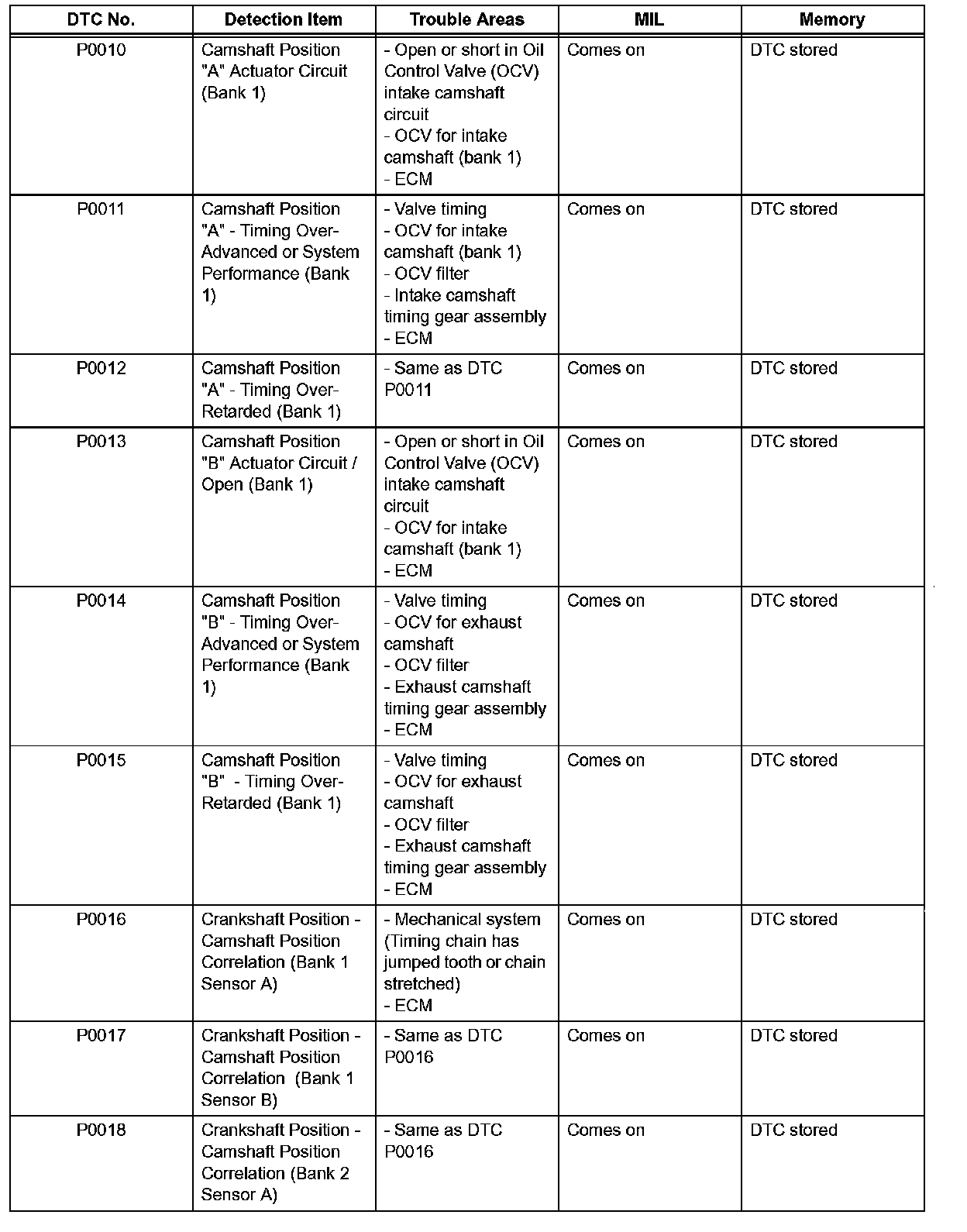

P0010-P0018:

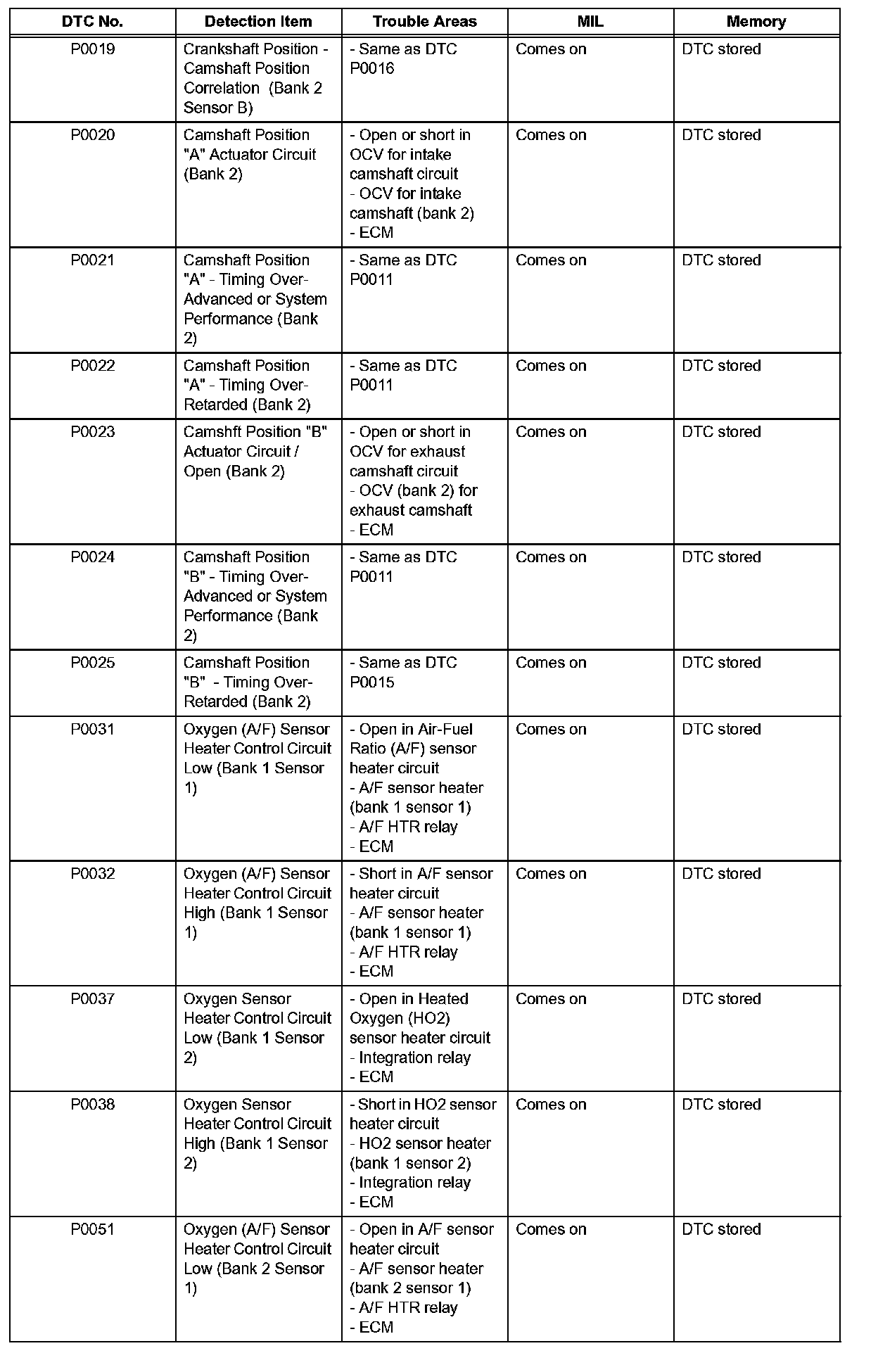

P0019-P0051:

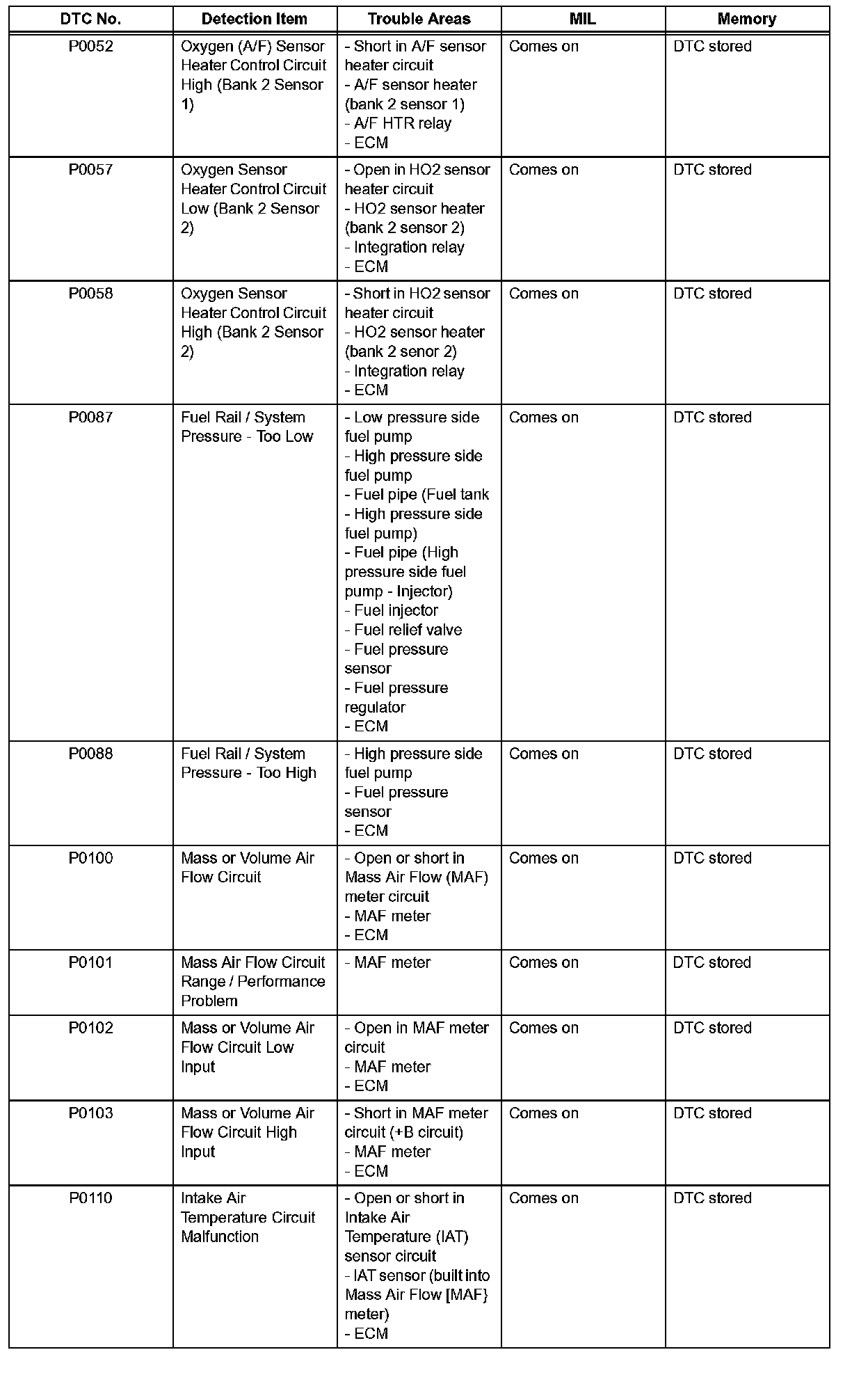

P0052-P0110:

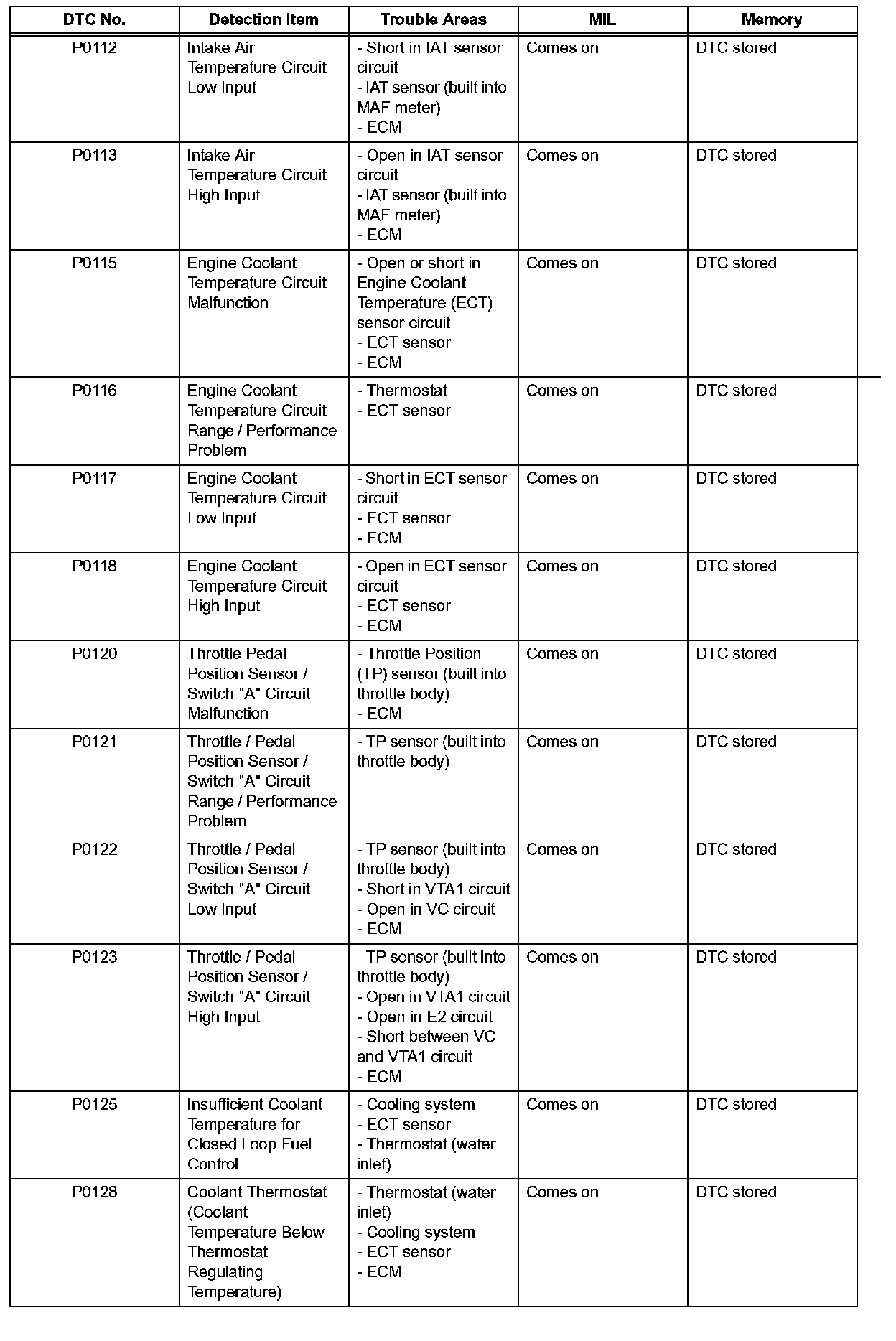

P0112-P0128:

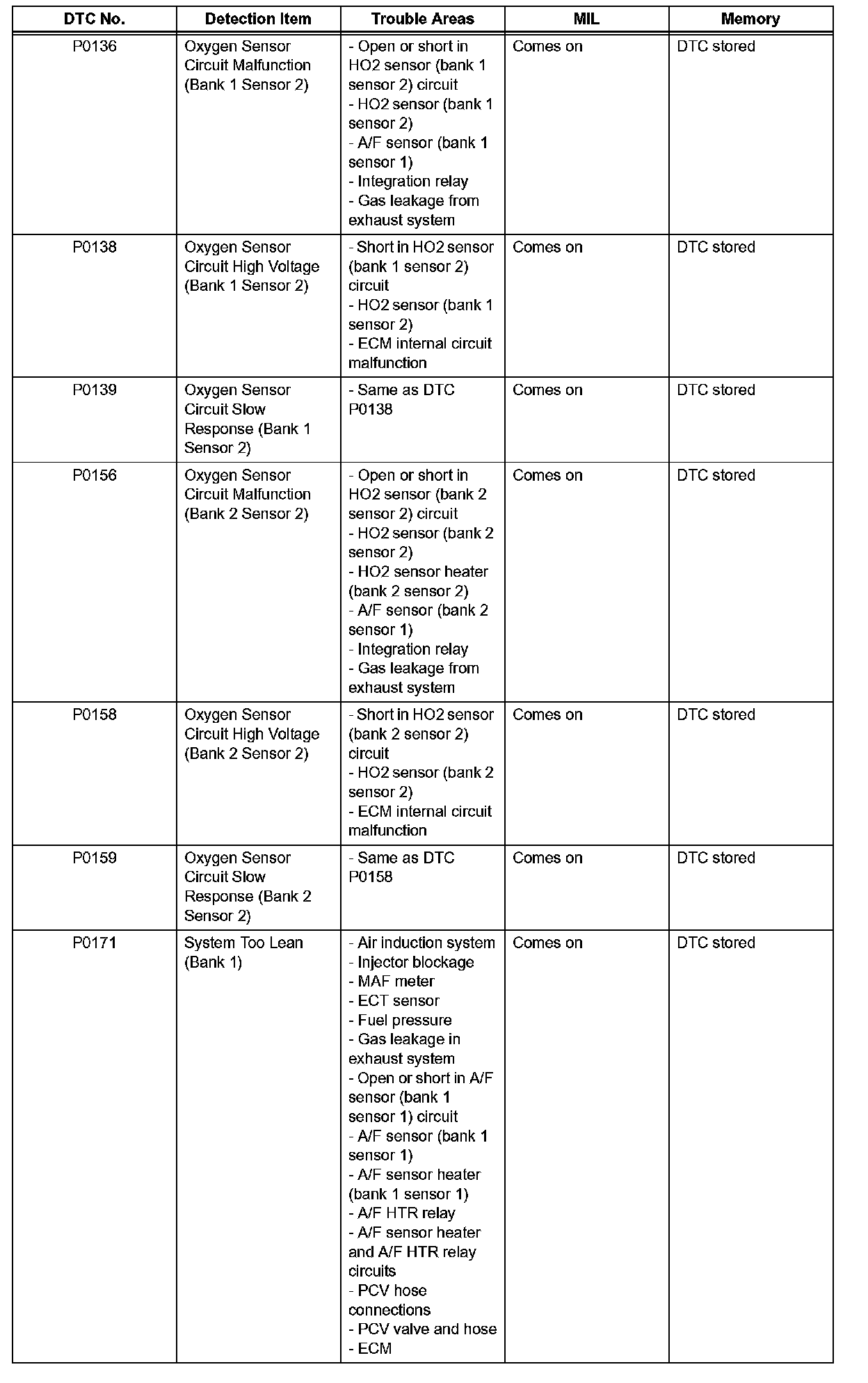

P0136-P0171:

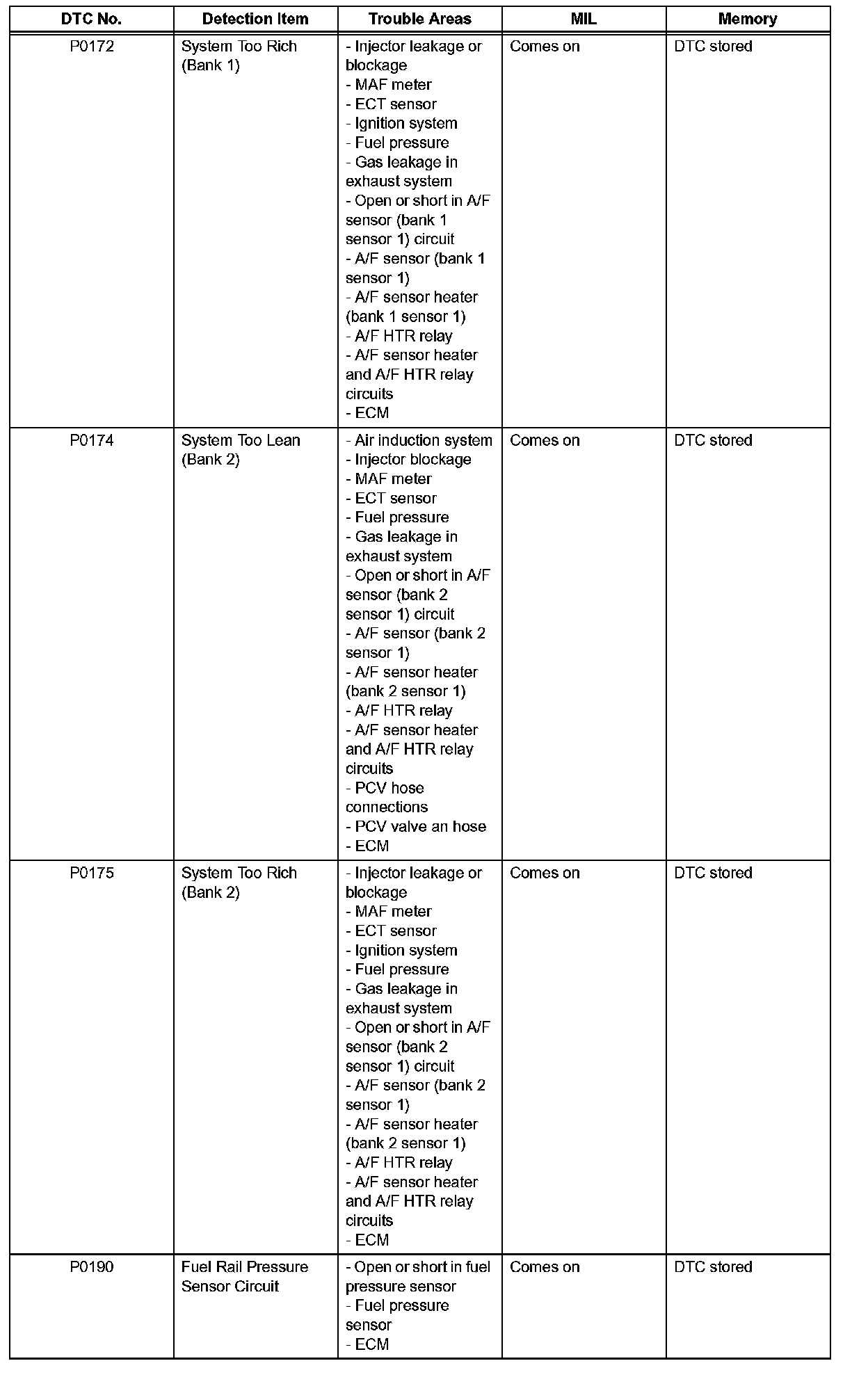

P0172-P0190:

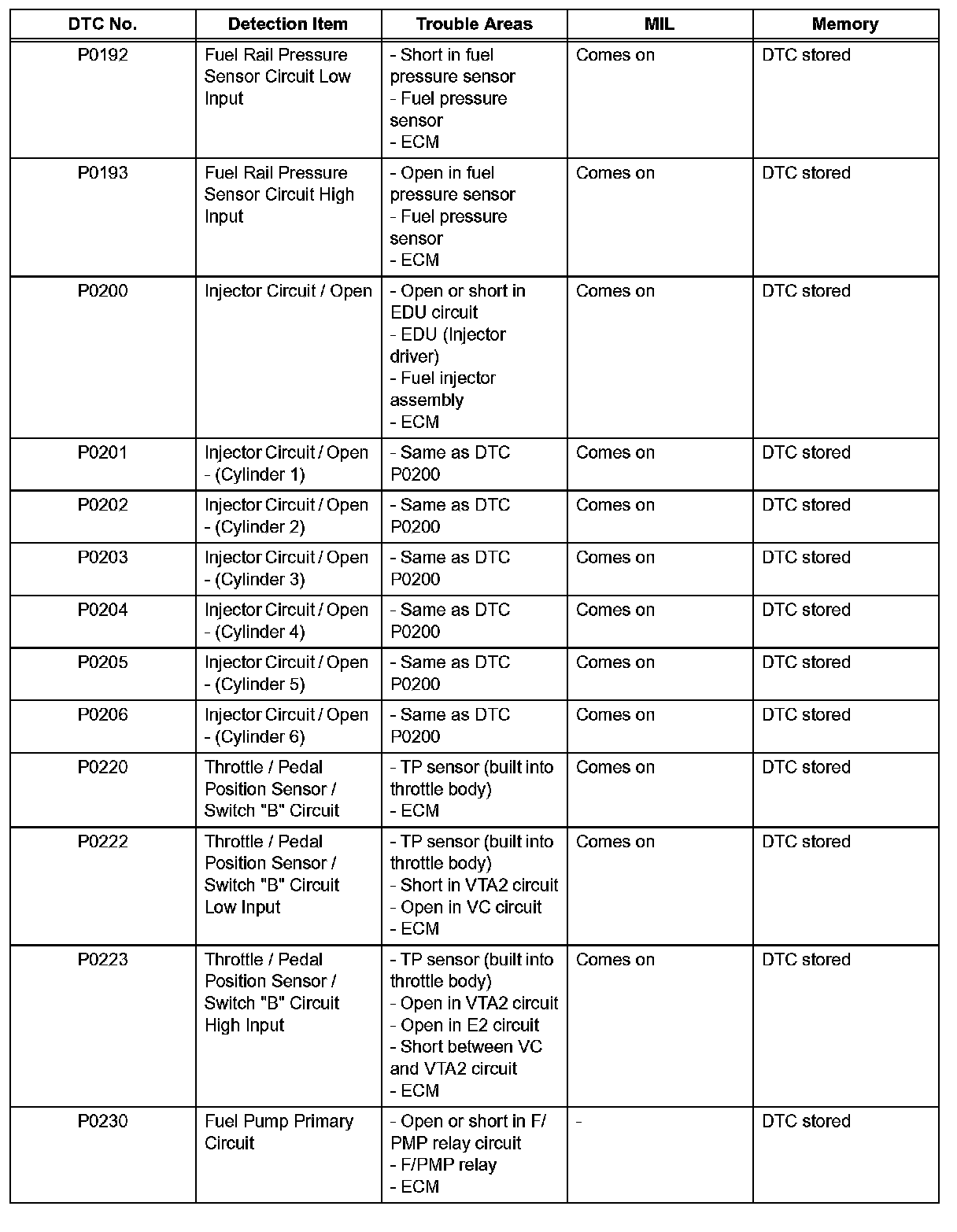

P0192-P0230:

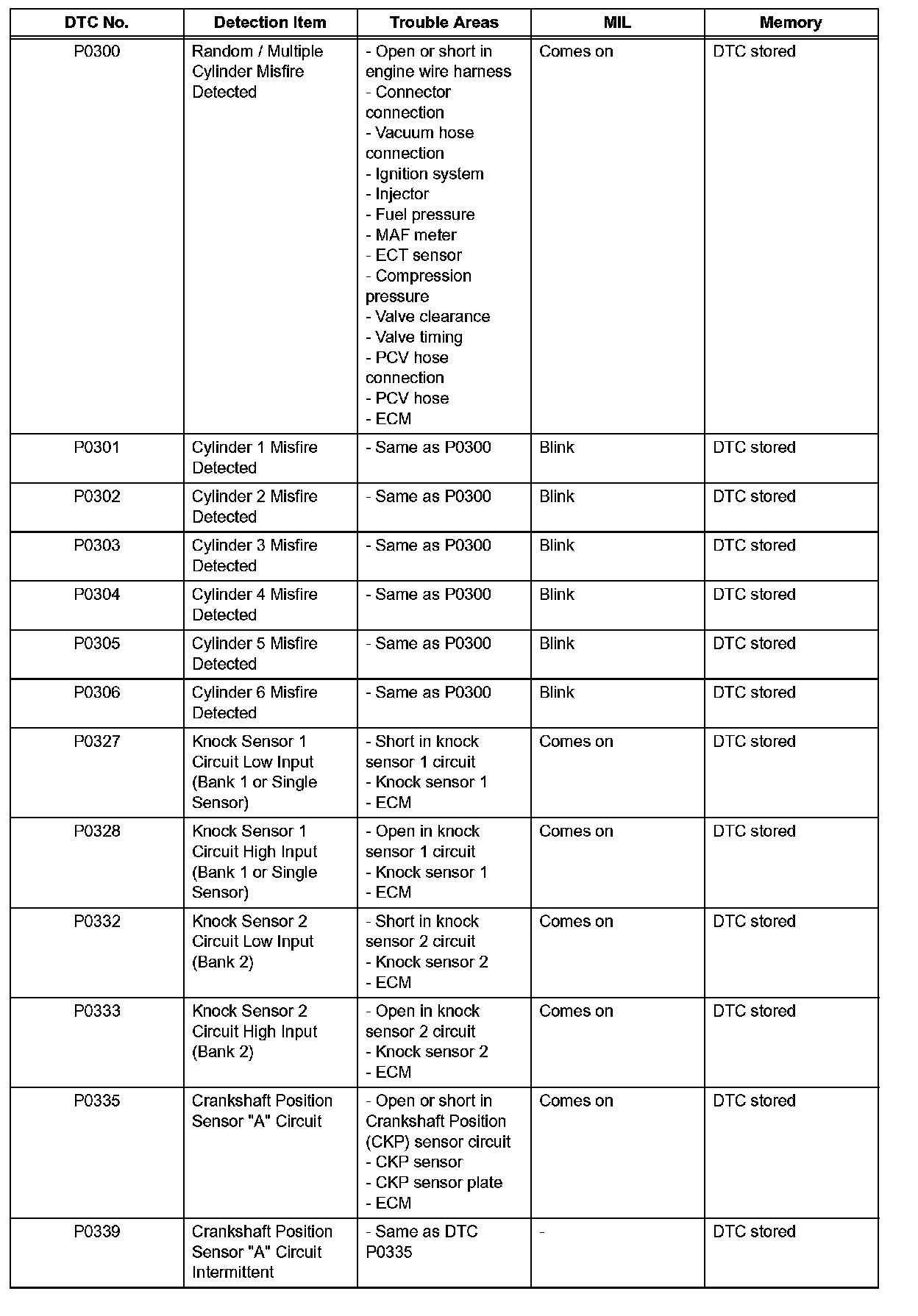

P0300-P0339:

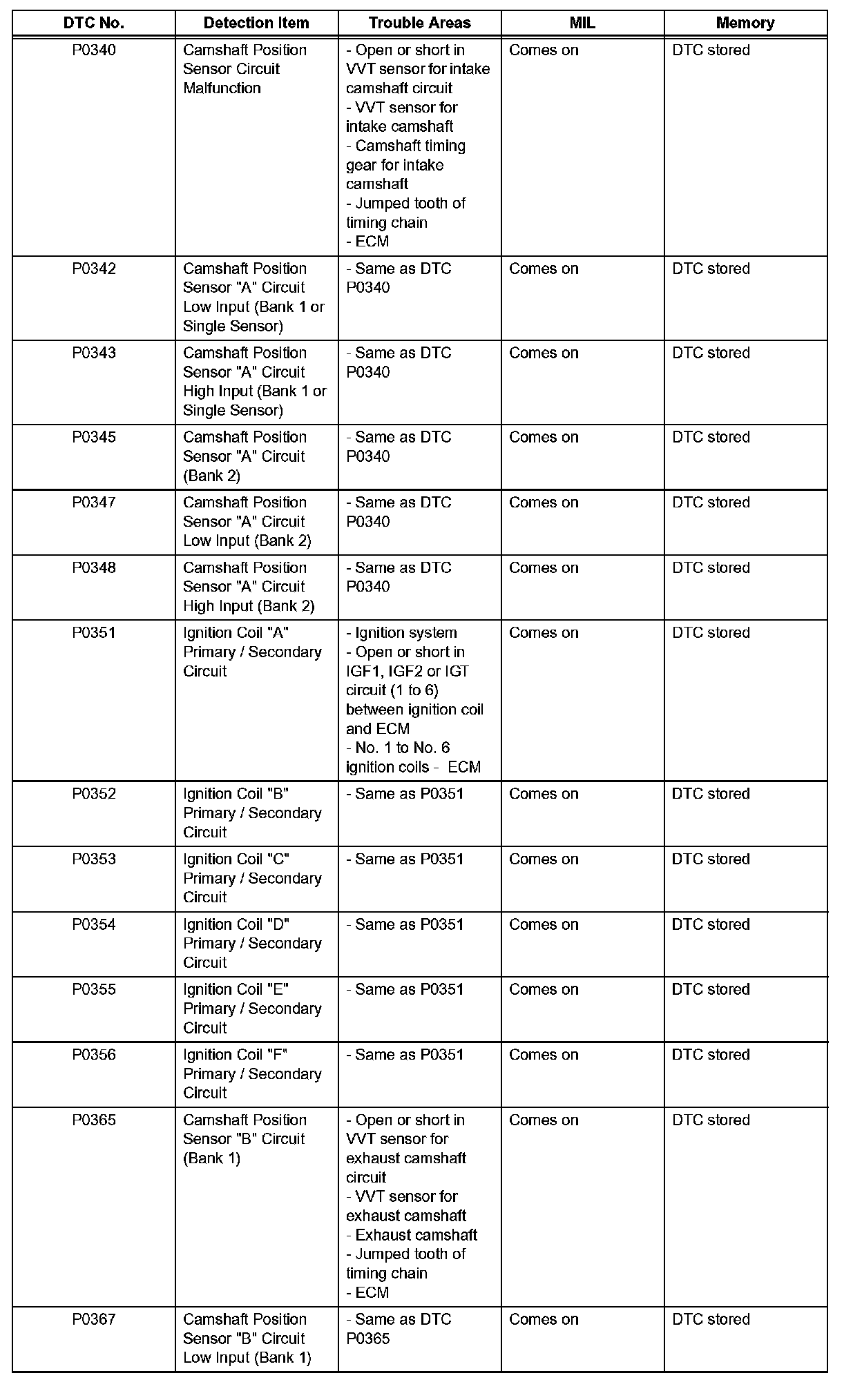

P0340-P0367:

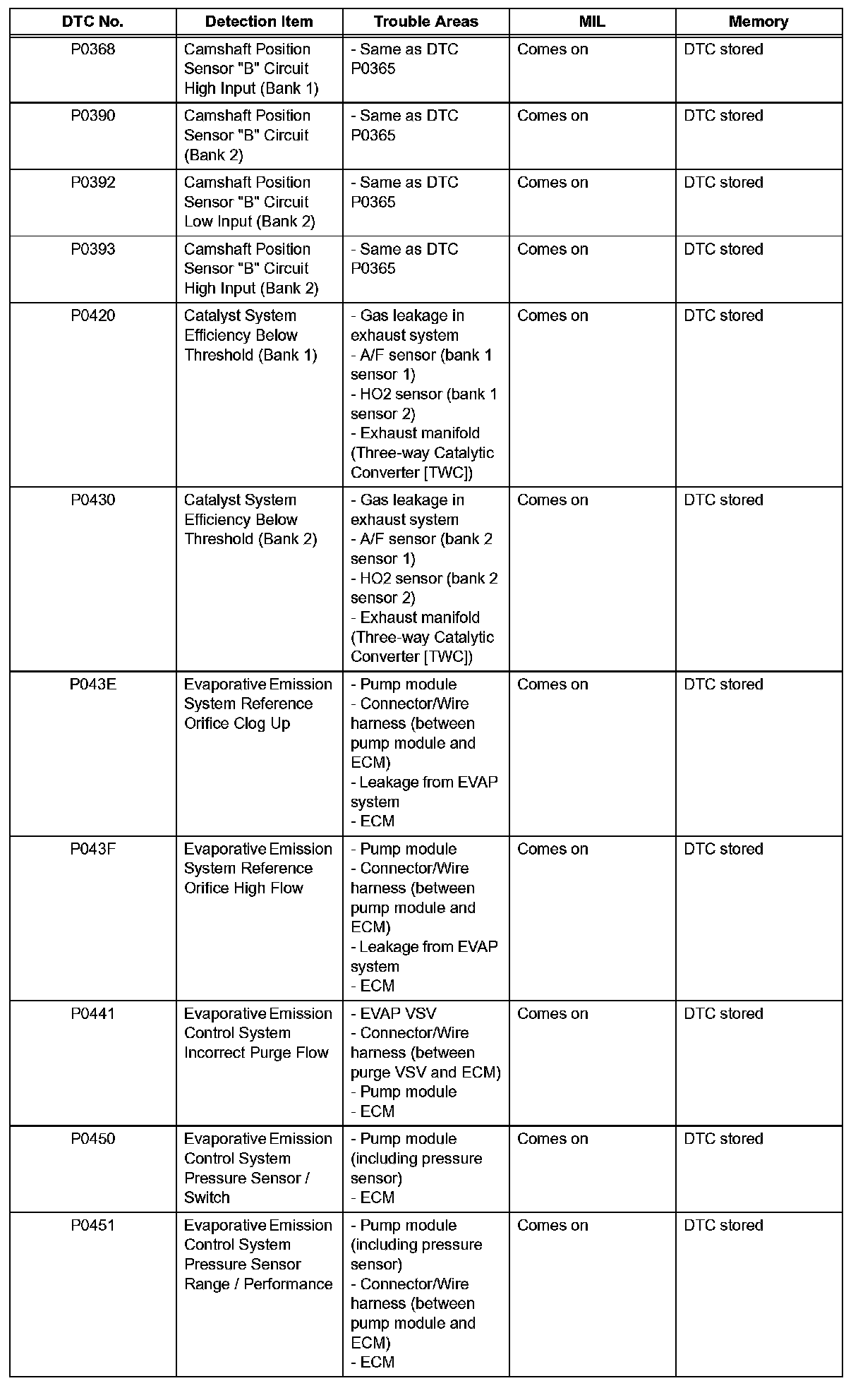

P0368-P0451:

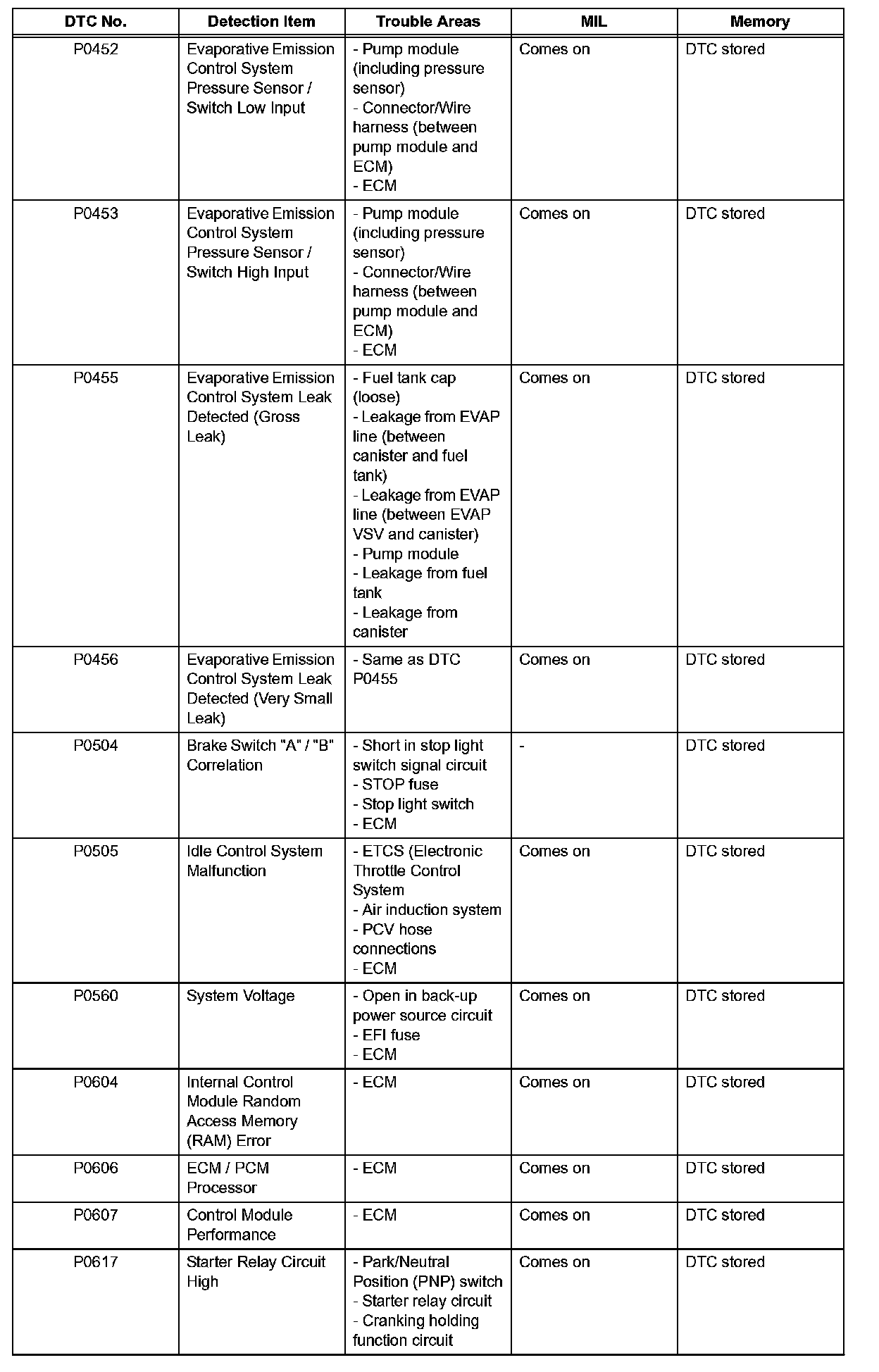

P0452-P0617:

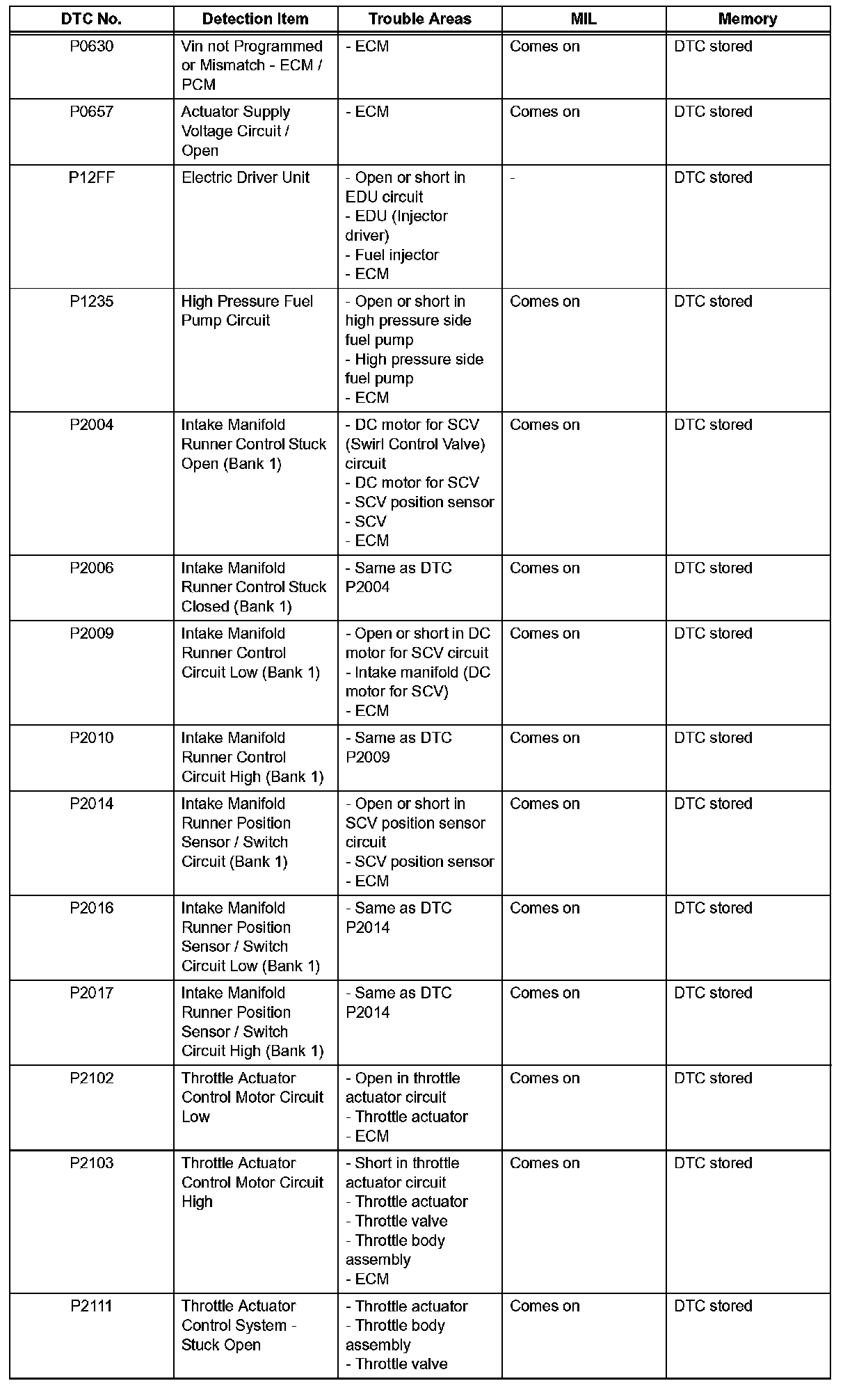

P0630-P2111:

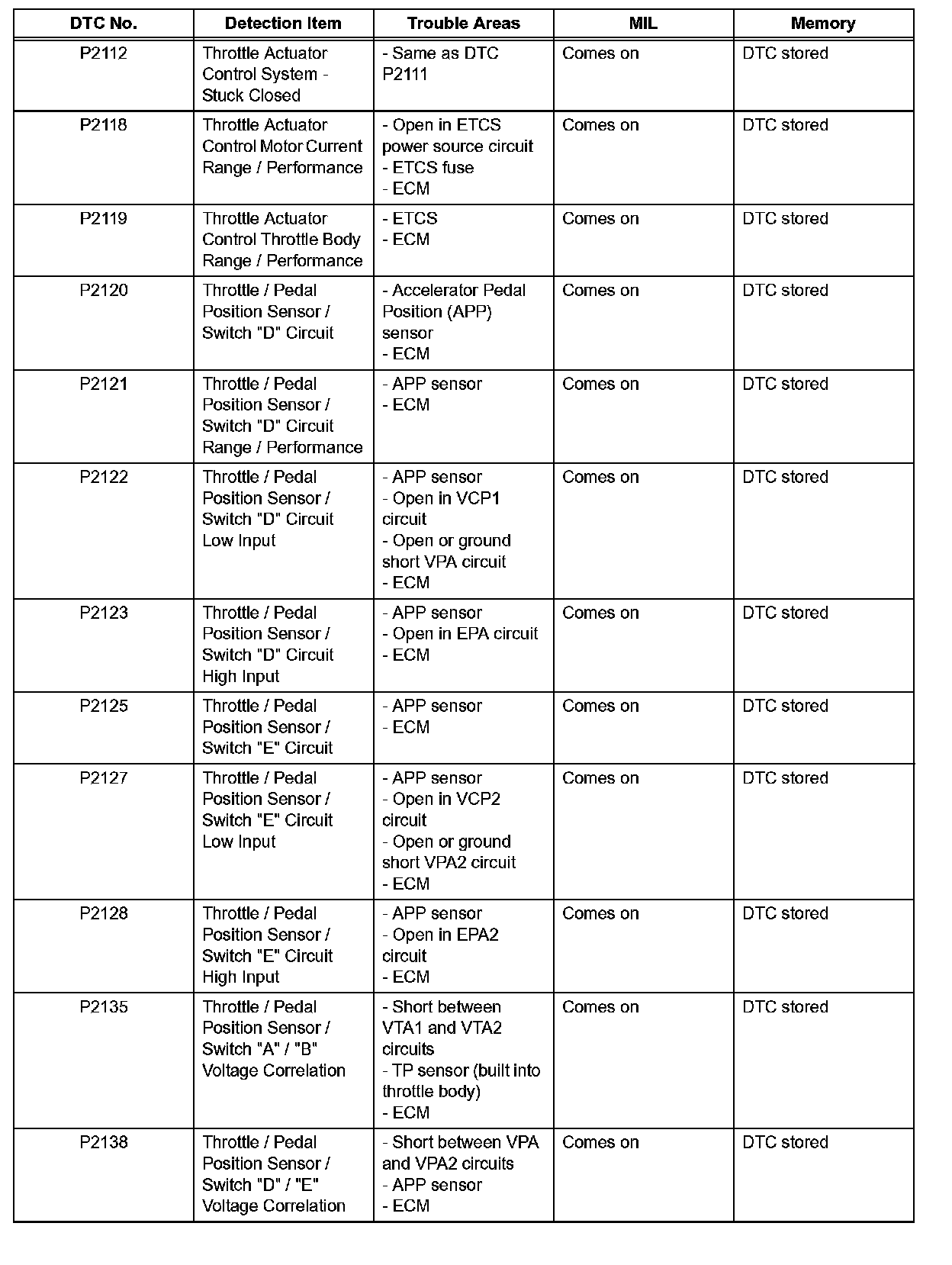

P2112-P2138:

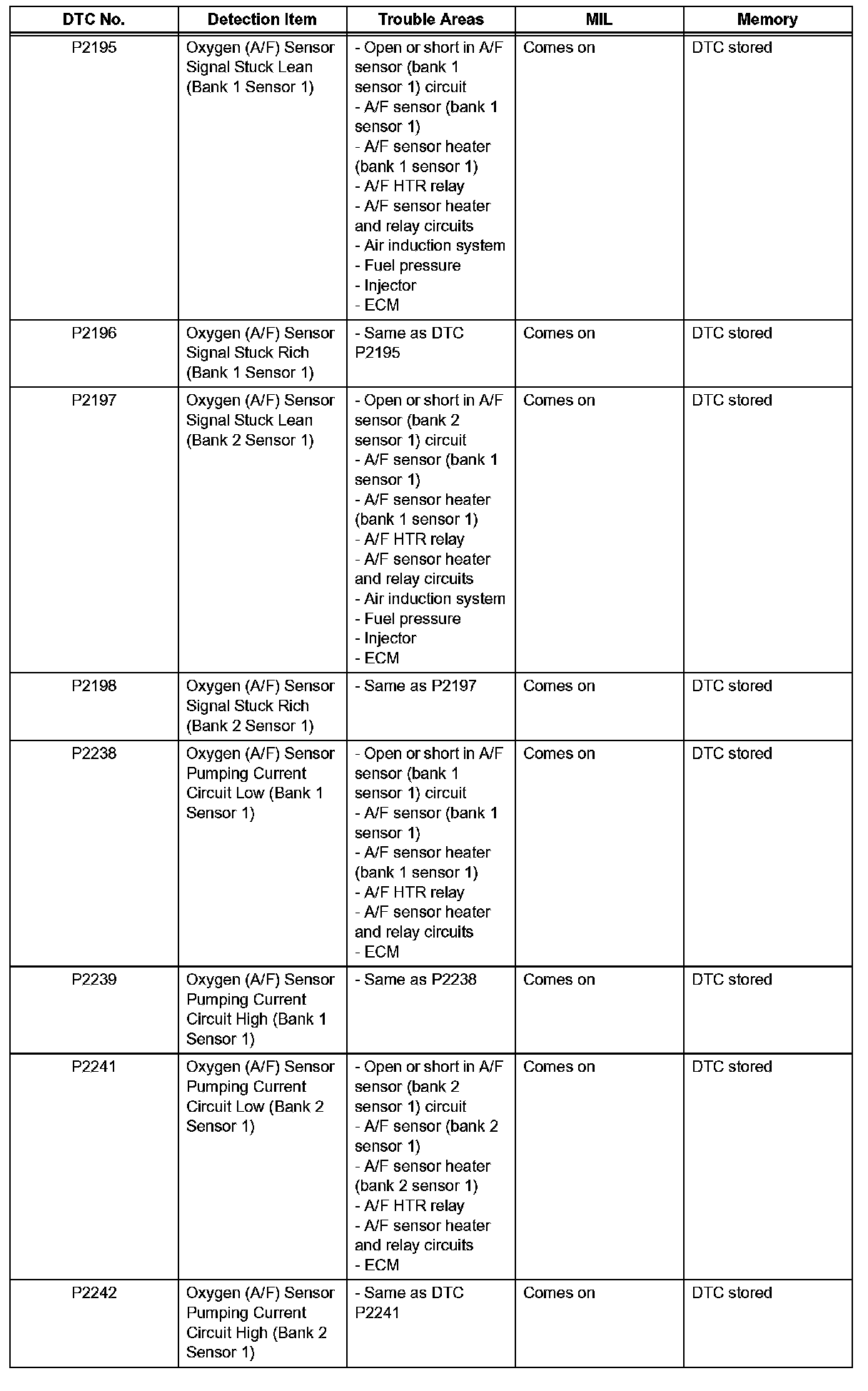

P2195-P2242:

P2252-P2A00:

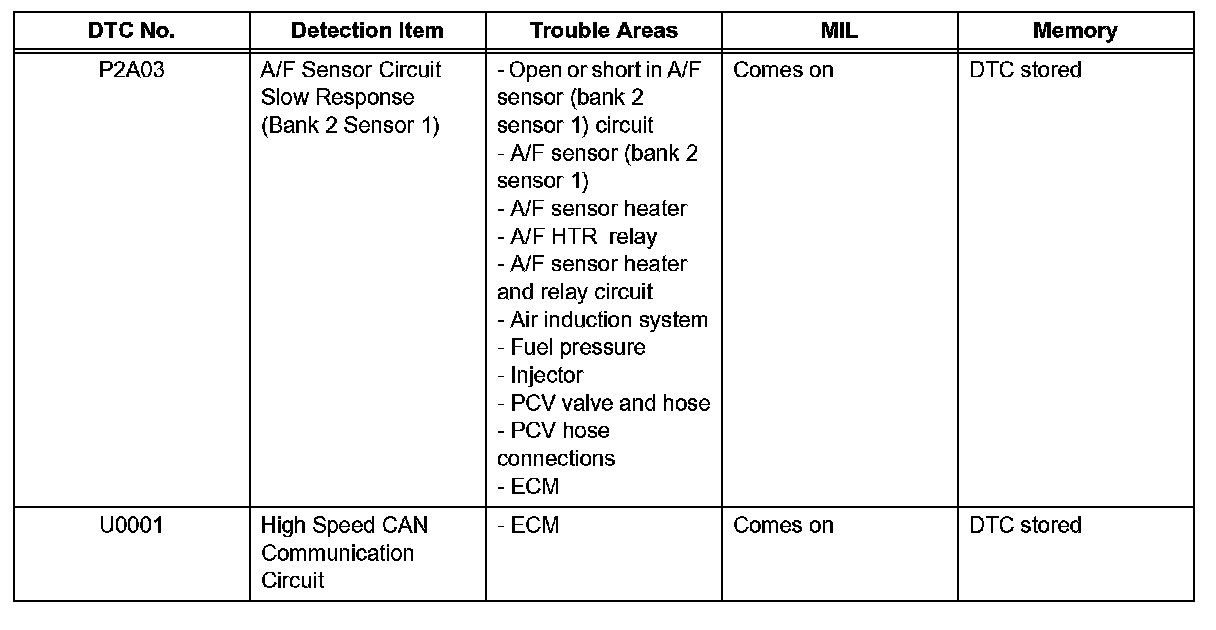

P2A03-U0001:

HINT: The parameters listed in the chart are for reference only. Factors such as instrument type may cause readings to differ slightly from stated values.

If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table. For details of each DTC, refer to the page indicated.
