Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Electronic Power Steering System >> C Codes

C Codes

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a trouble code is displayed during the DTC check, inspect the circuit or part listened for that code.

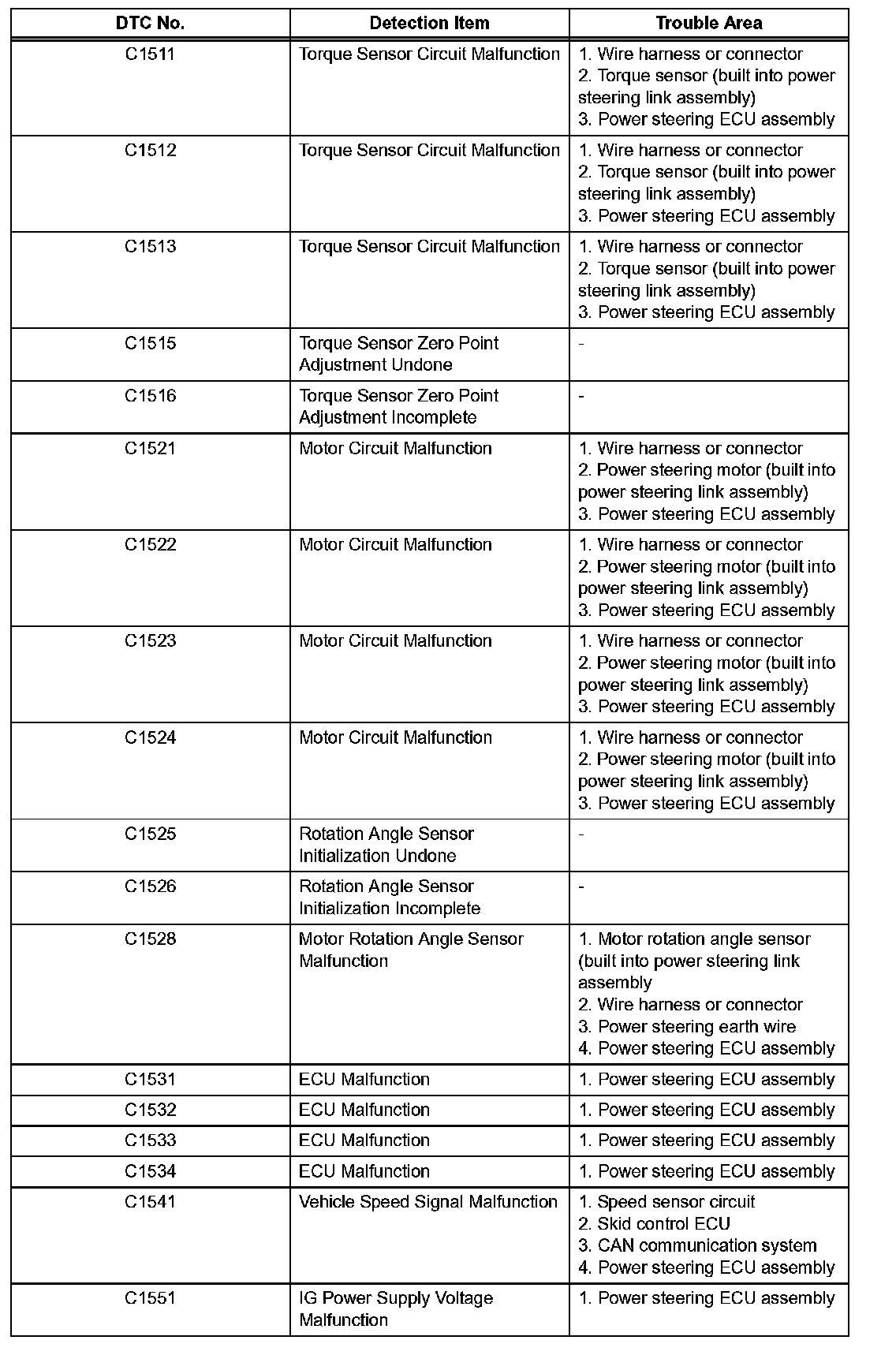

DTC C1511-C1551:




DTC C1552-C1581 & DTC U0073-U0130:
