Clearance Sonar System
Clearance Sonar System

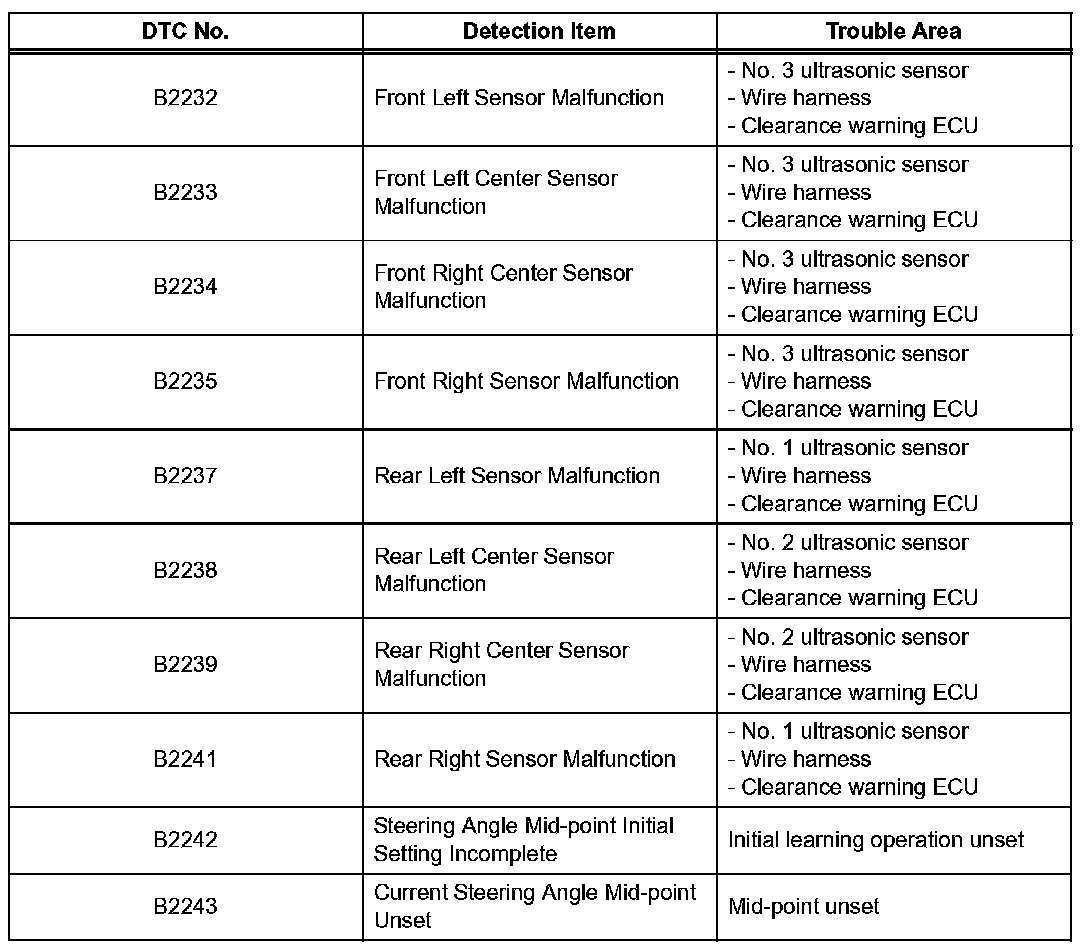

DIAGNOSTIC TROUBLE CODE CHART
B2232-B2243:
If a trouble code is displayed during the DTC check, check the circuit listed for that code in the table and proceed.
