Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the parts listed in the table and proceed as required.

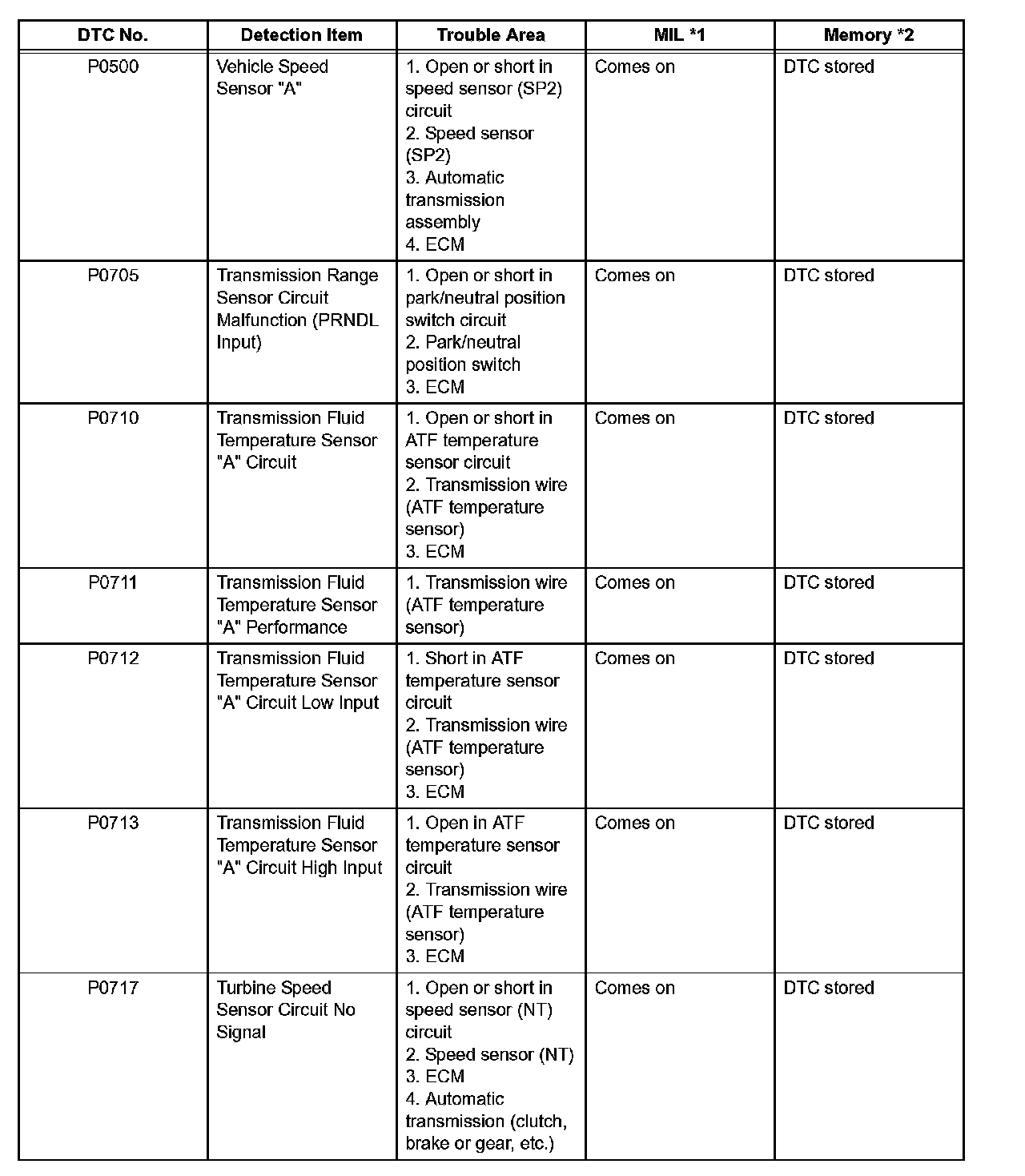

DTC P0500-P0717:

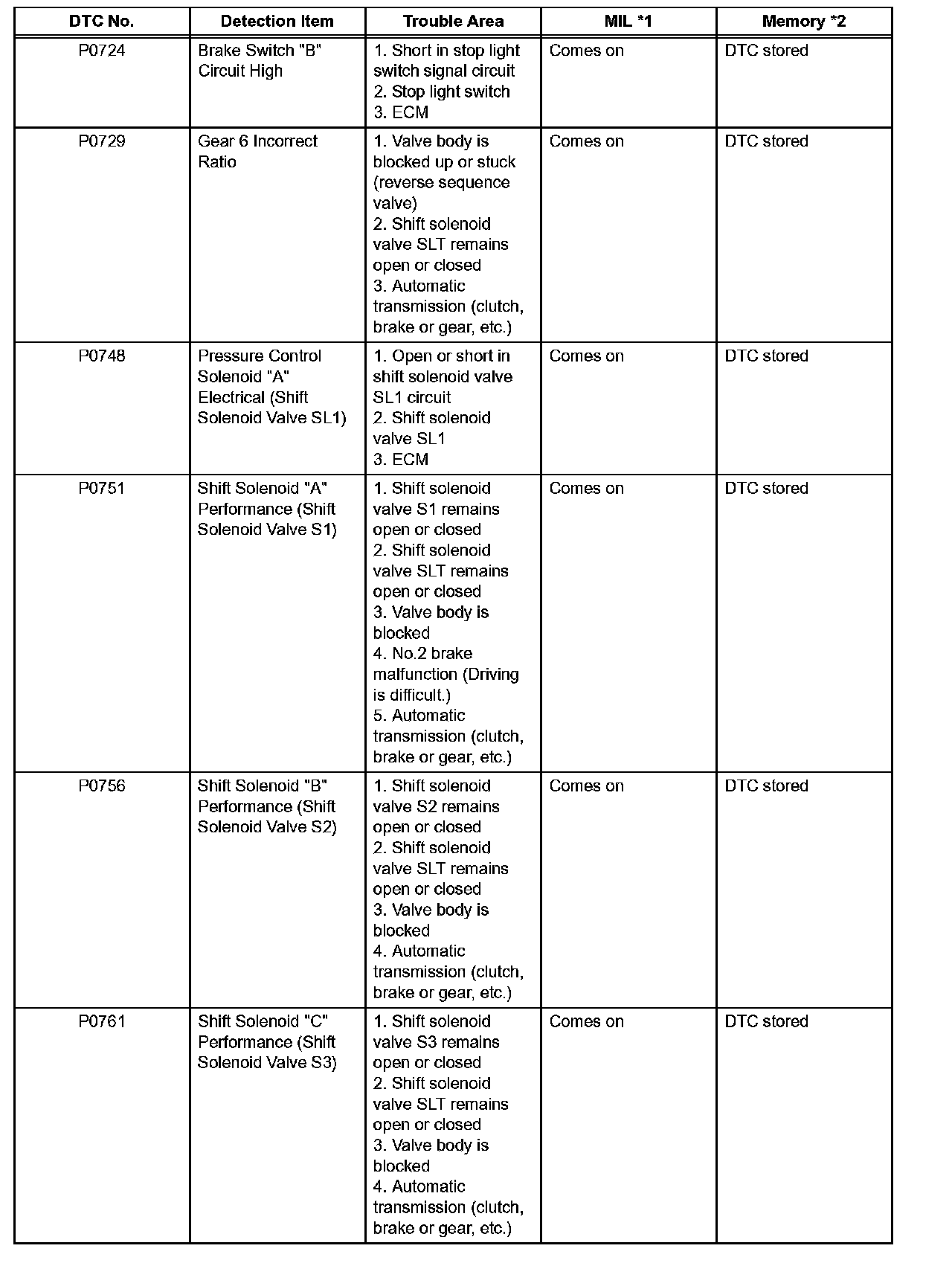

DTC P0724-P0761:

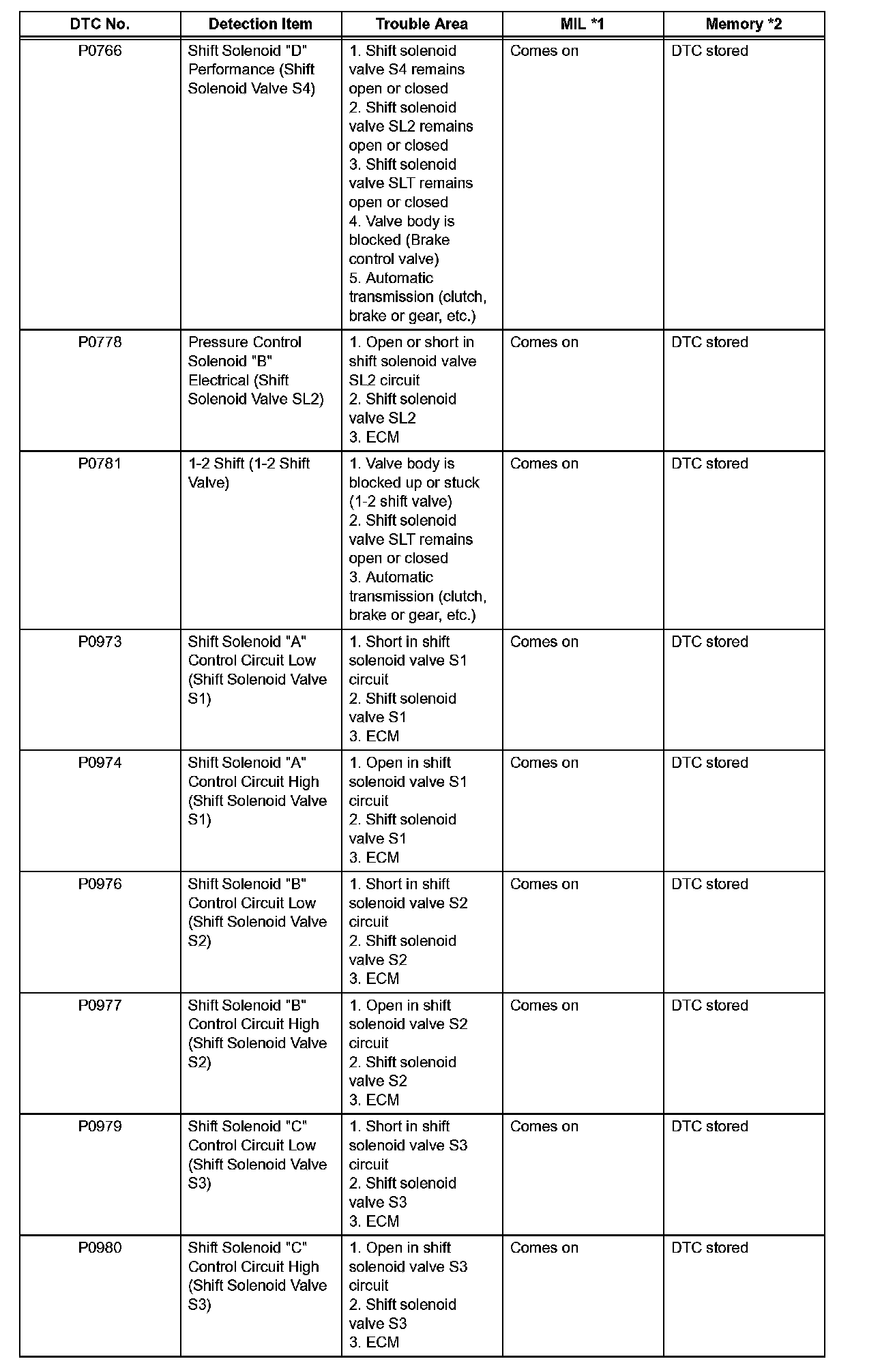

DTC P0766-P0980:

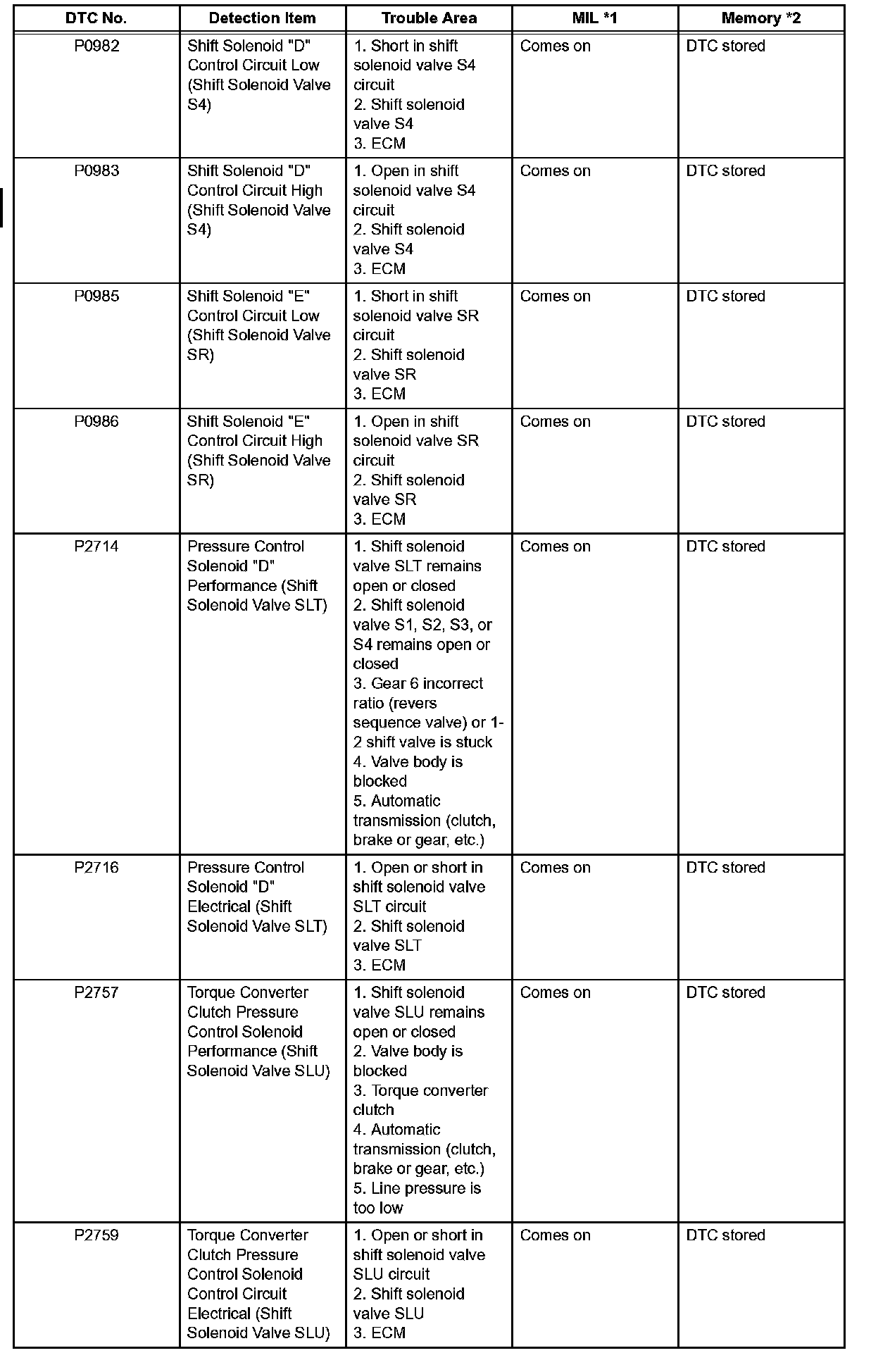

DTC P0982-P2750:

HINT:
^ *1: Comes on MIL (Malfunction Indicator Lamp) light up
^ *2: "DTC stored" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
^ This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
