Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

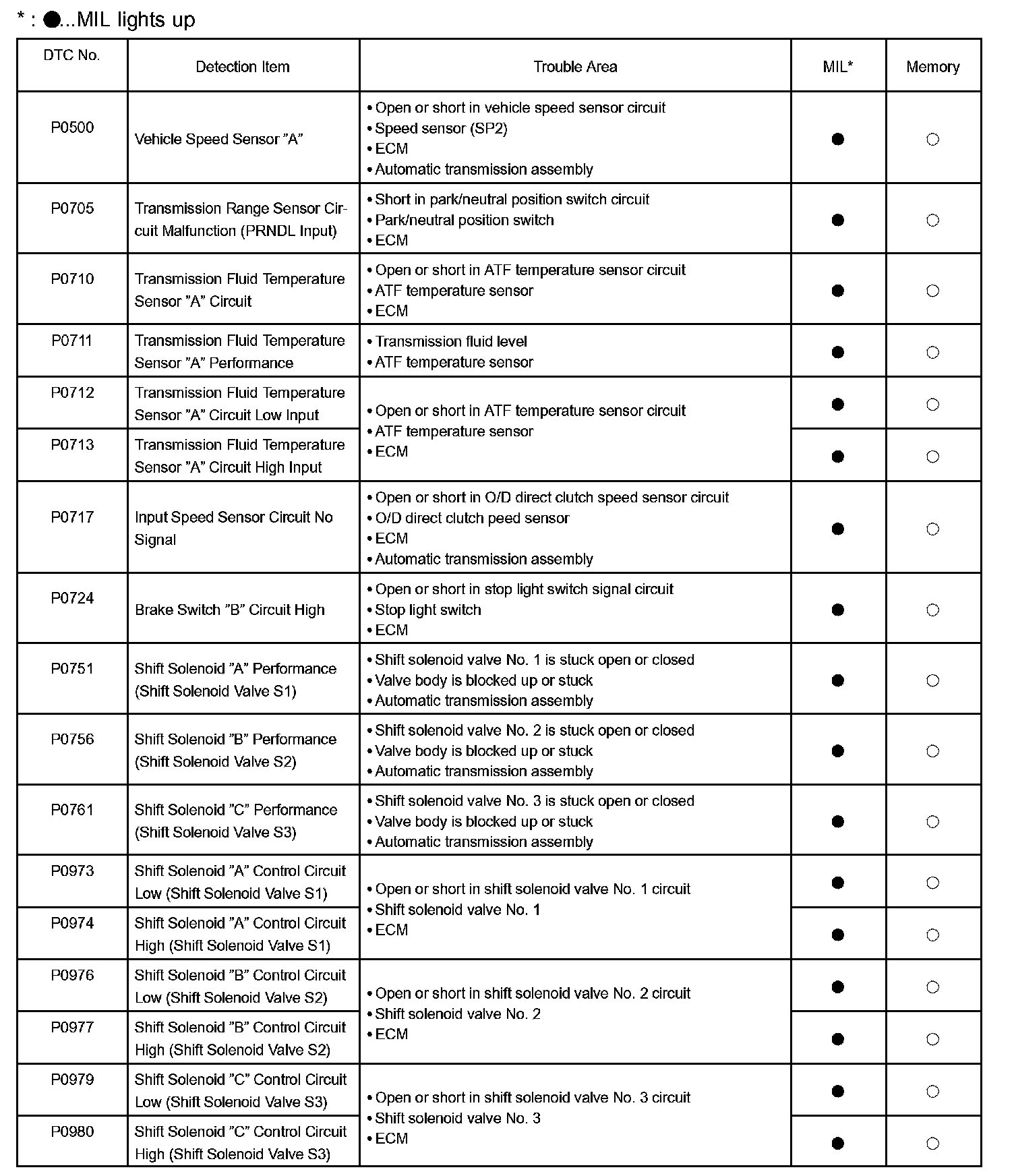

P0500 - P0980:

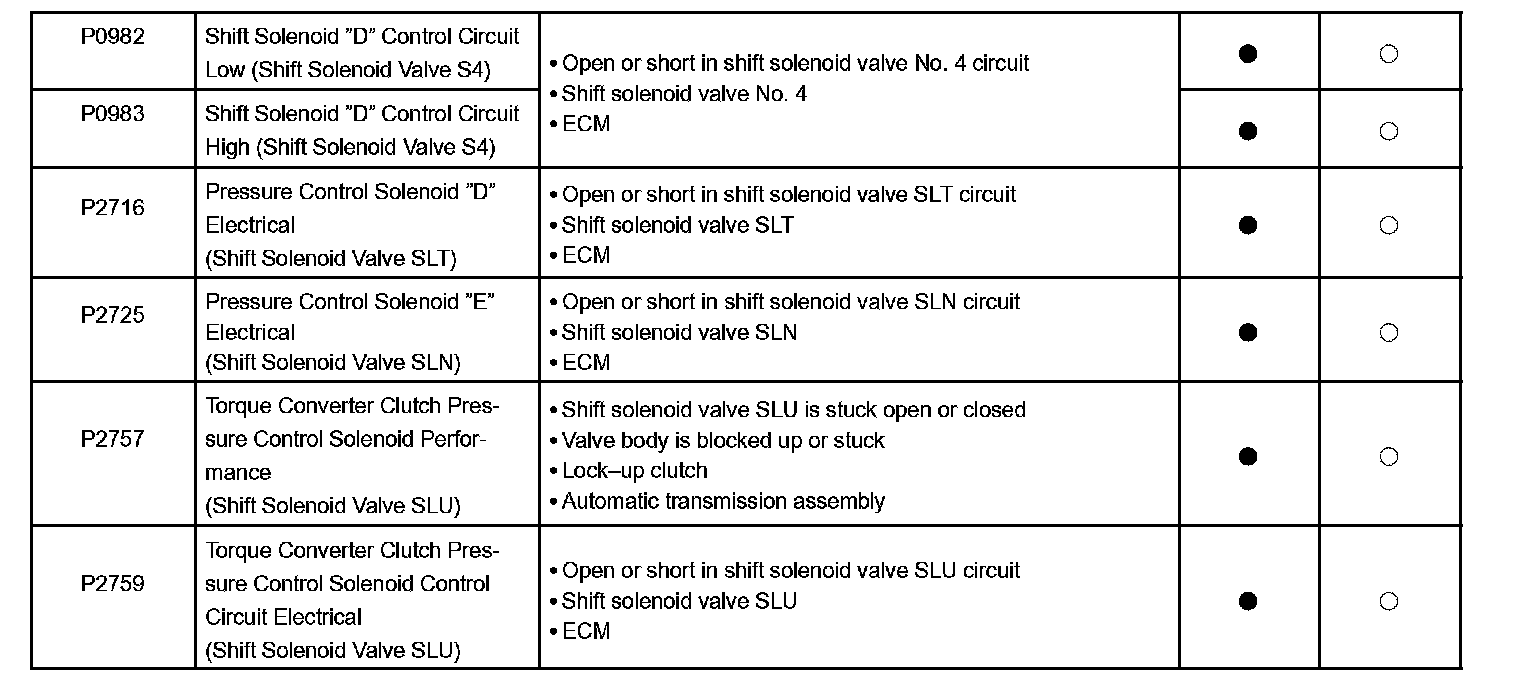

P0982 - P2759:

If a DTC is displayed during the DTC check, check the circuit listed in the table and proceed to the corresponding troubleshooting.

HINT: This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
