SFI System

DIAGNOSTIC TROUBLE CODE CHART

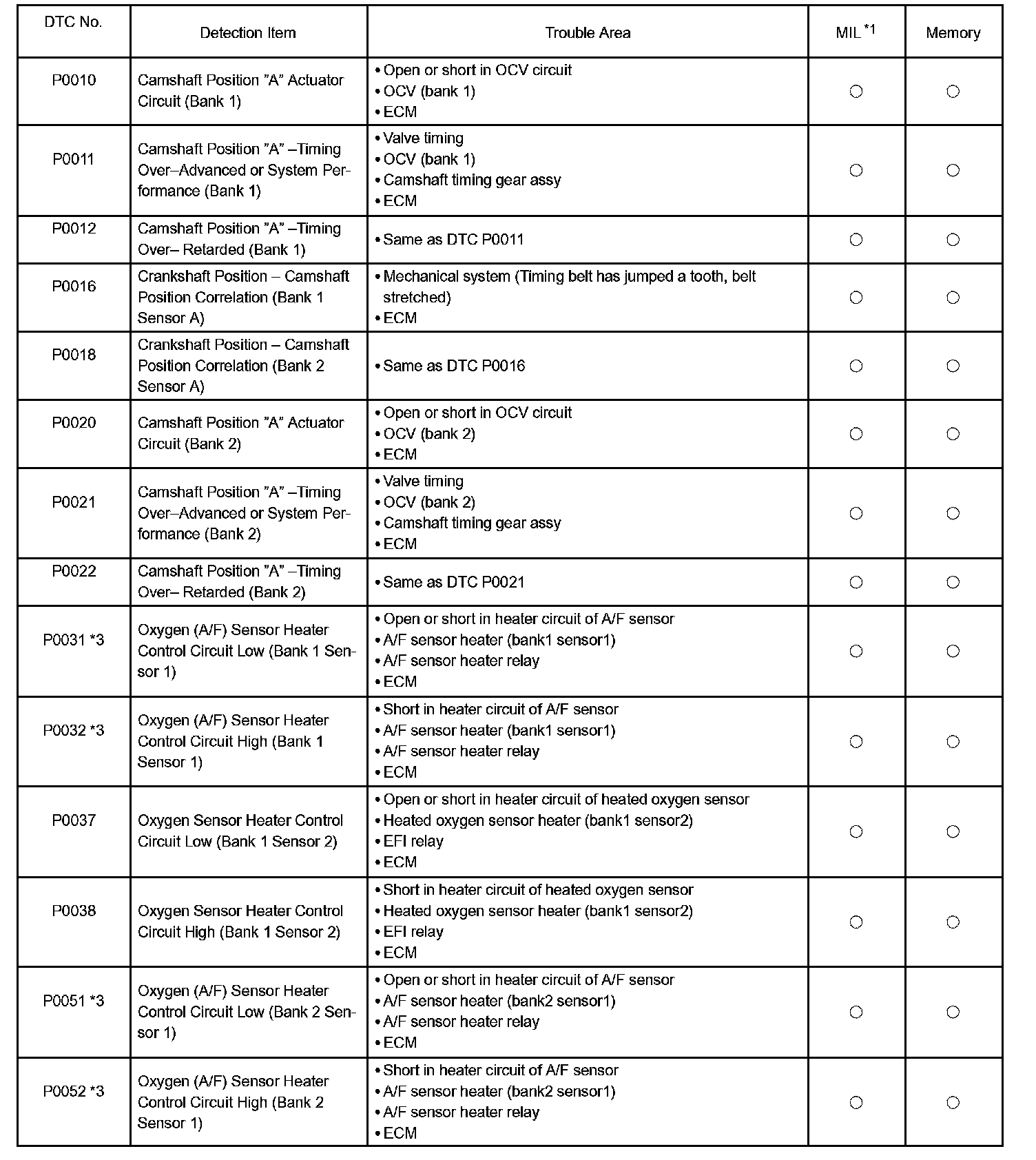

P0010 - P0052:

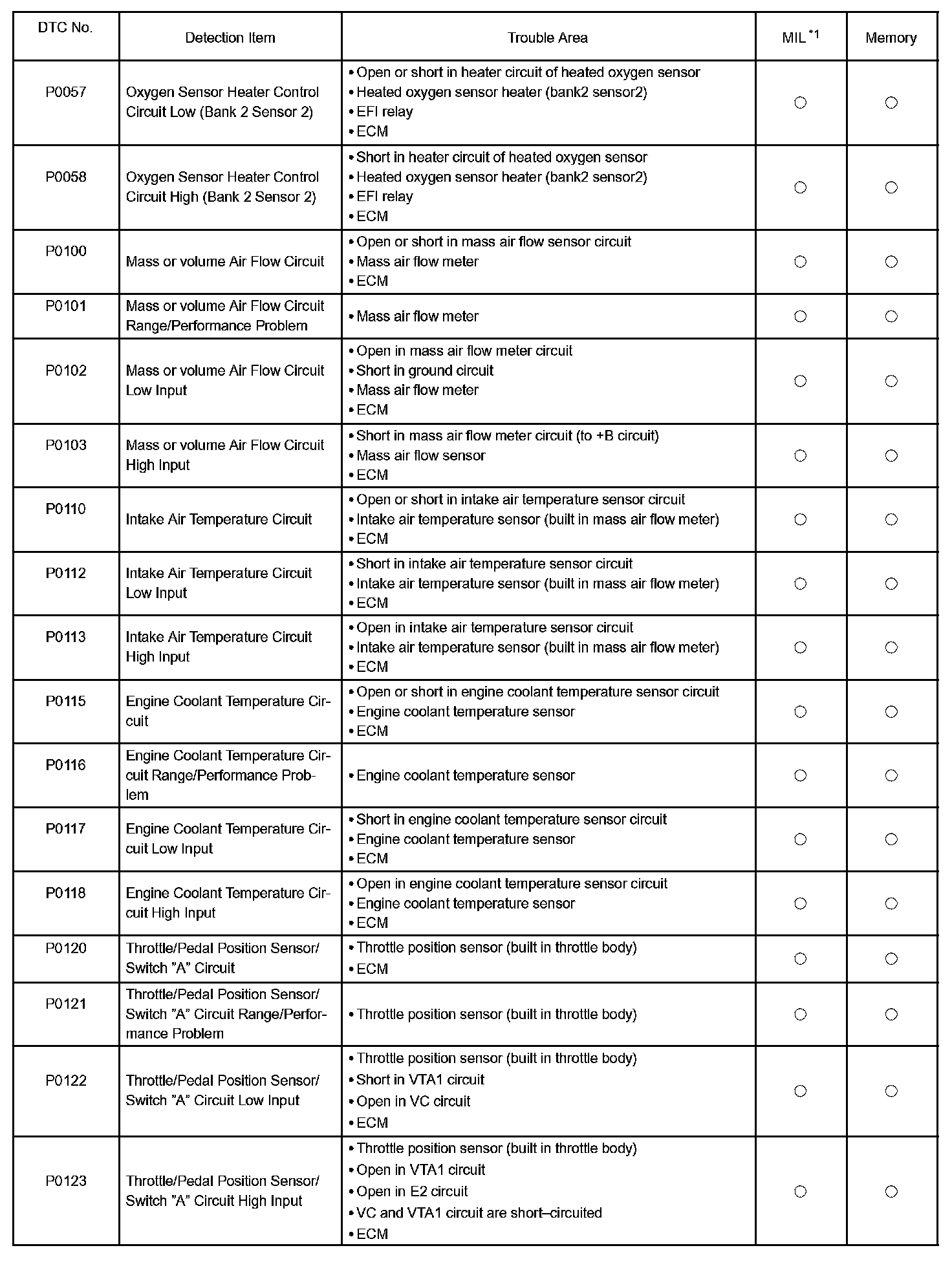

P0057 - P0123:

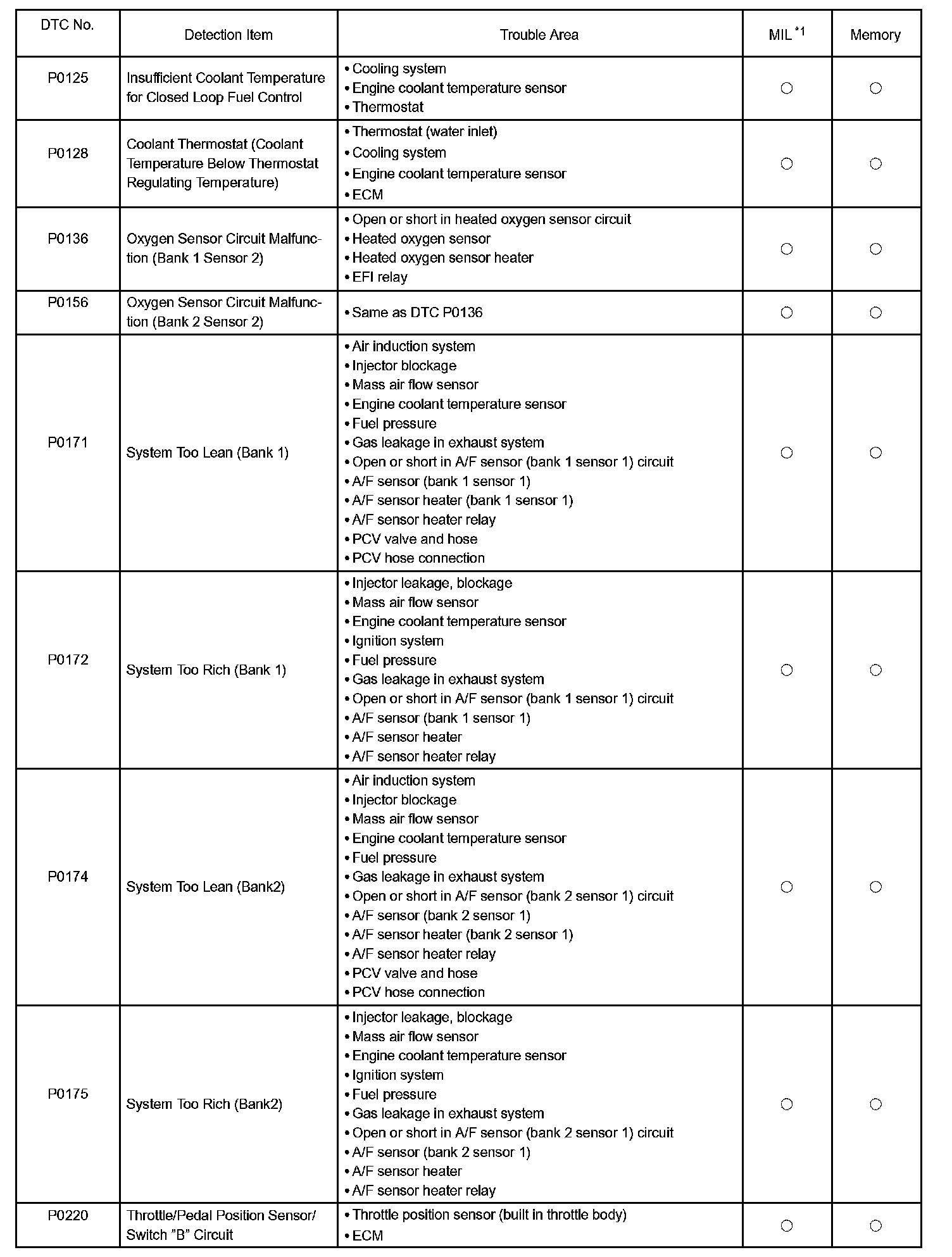

P0125 - P0220:

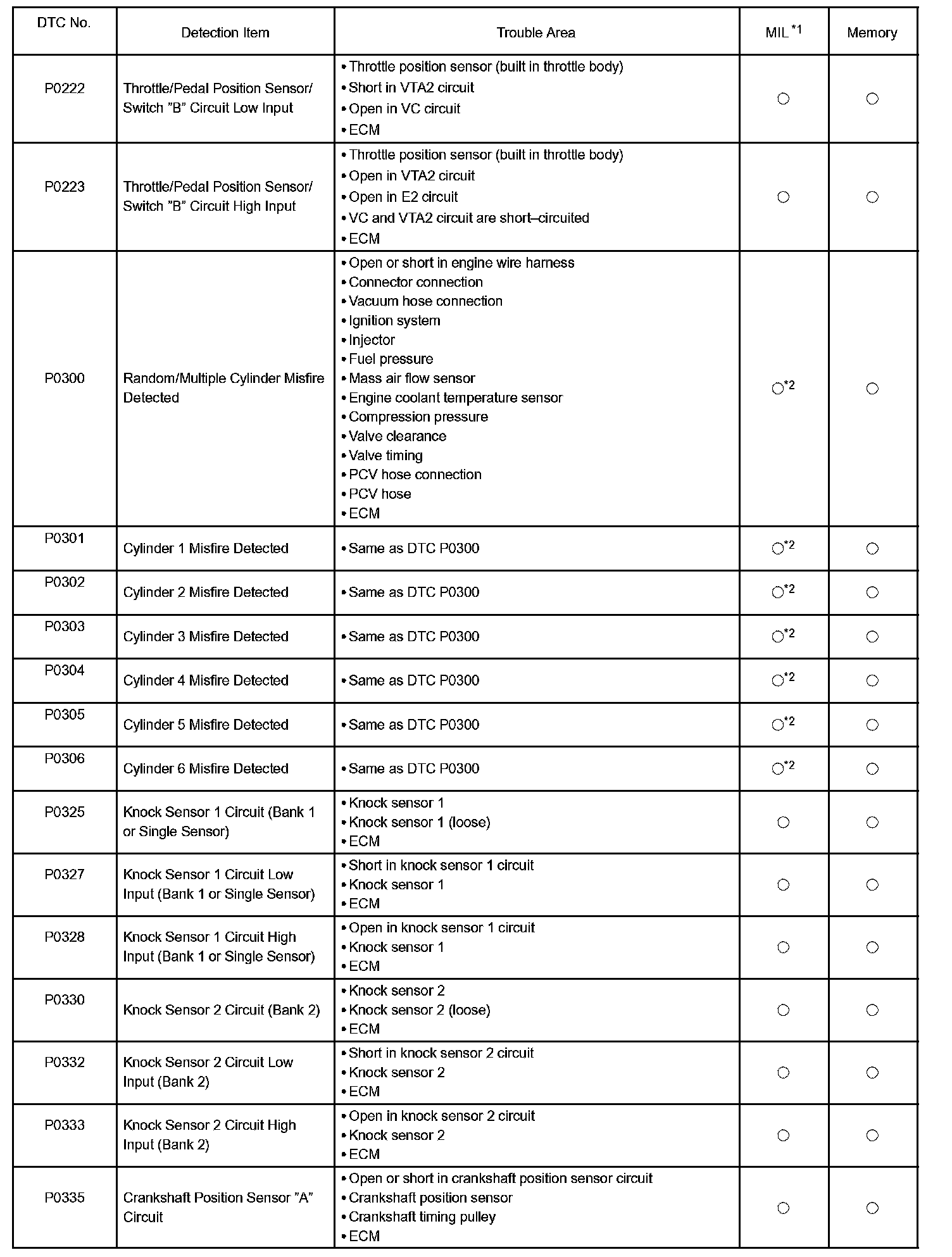

P0222 - P0335:

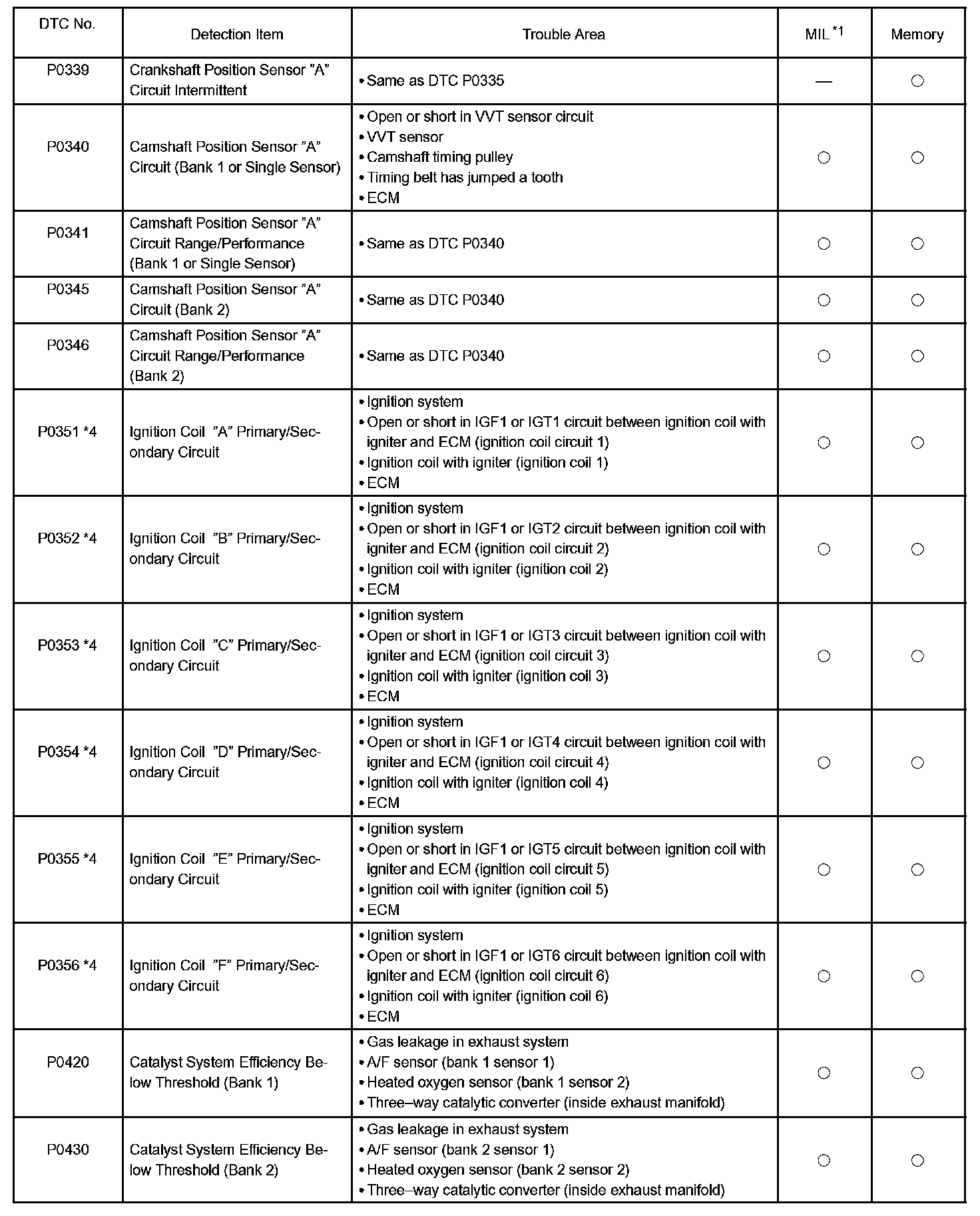

P0339 - P0430:

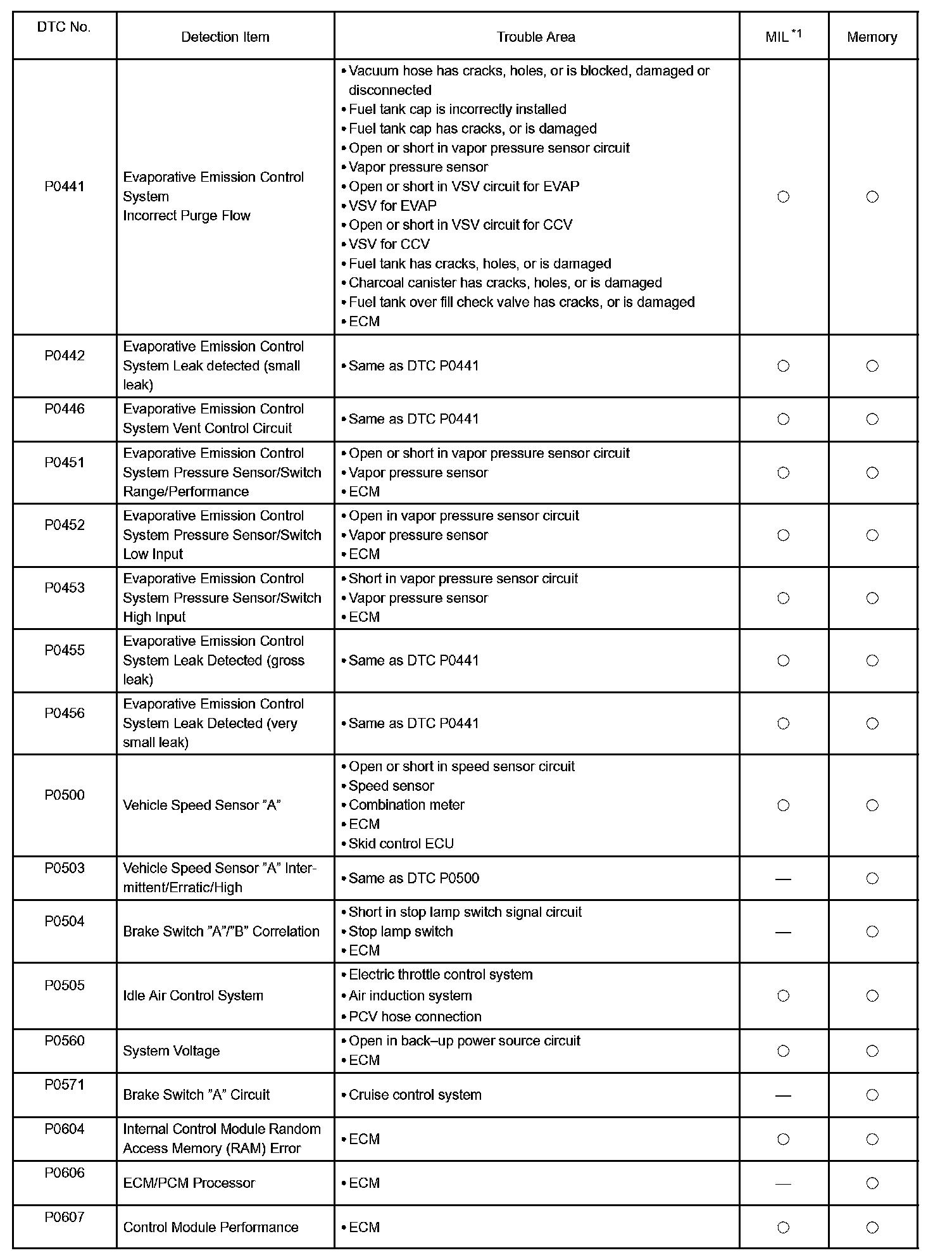

P0441 - P0607:

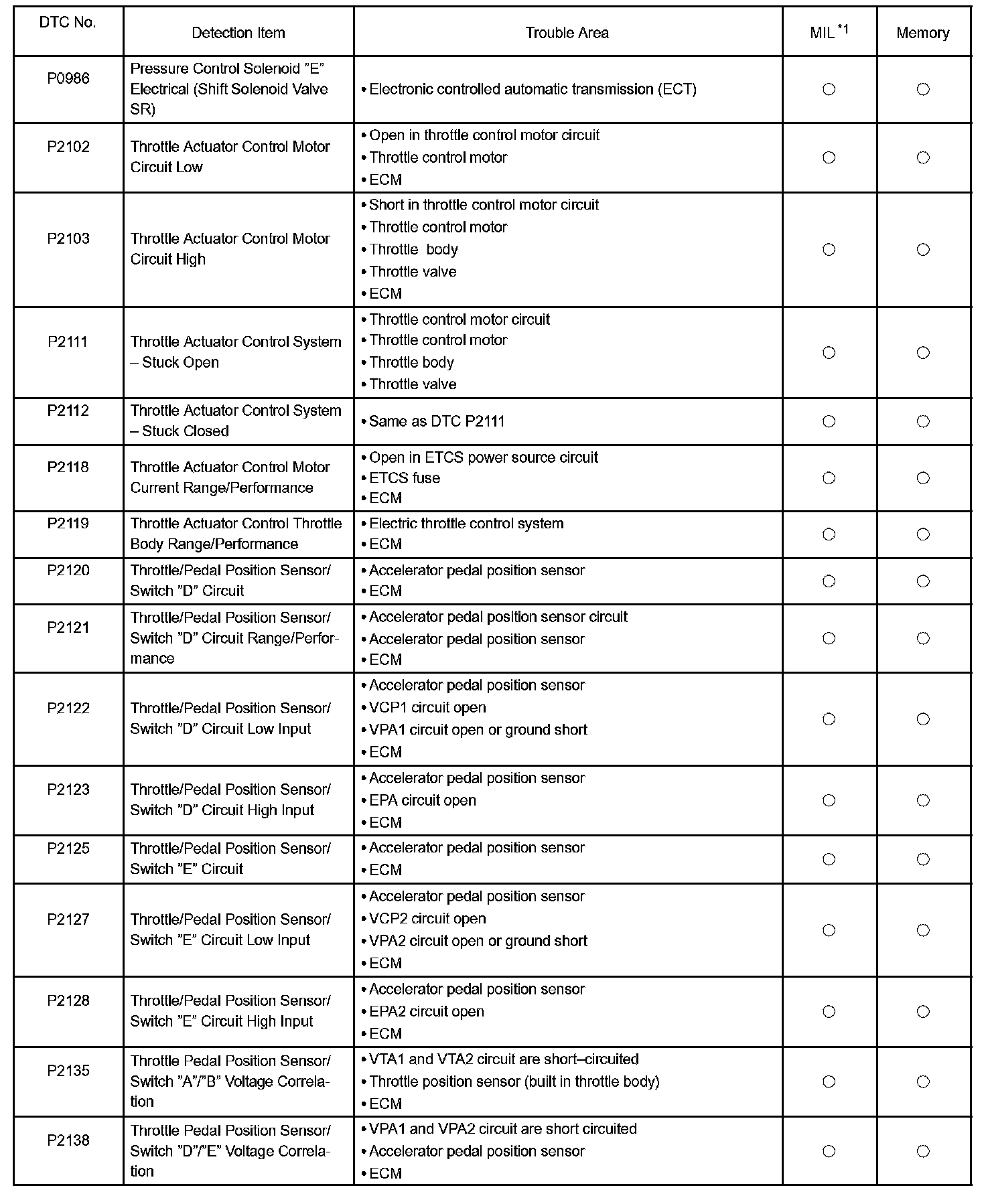

P0617 - P0985:

P0986 - P2138:

P2195 - P2253:

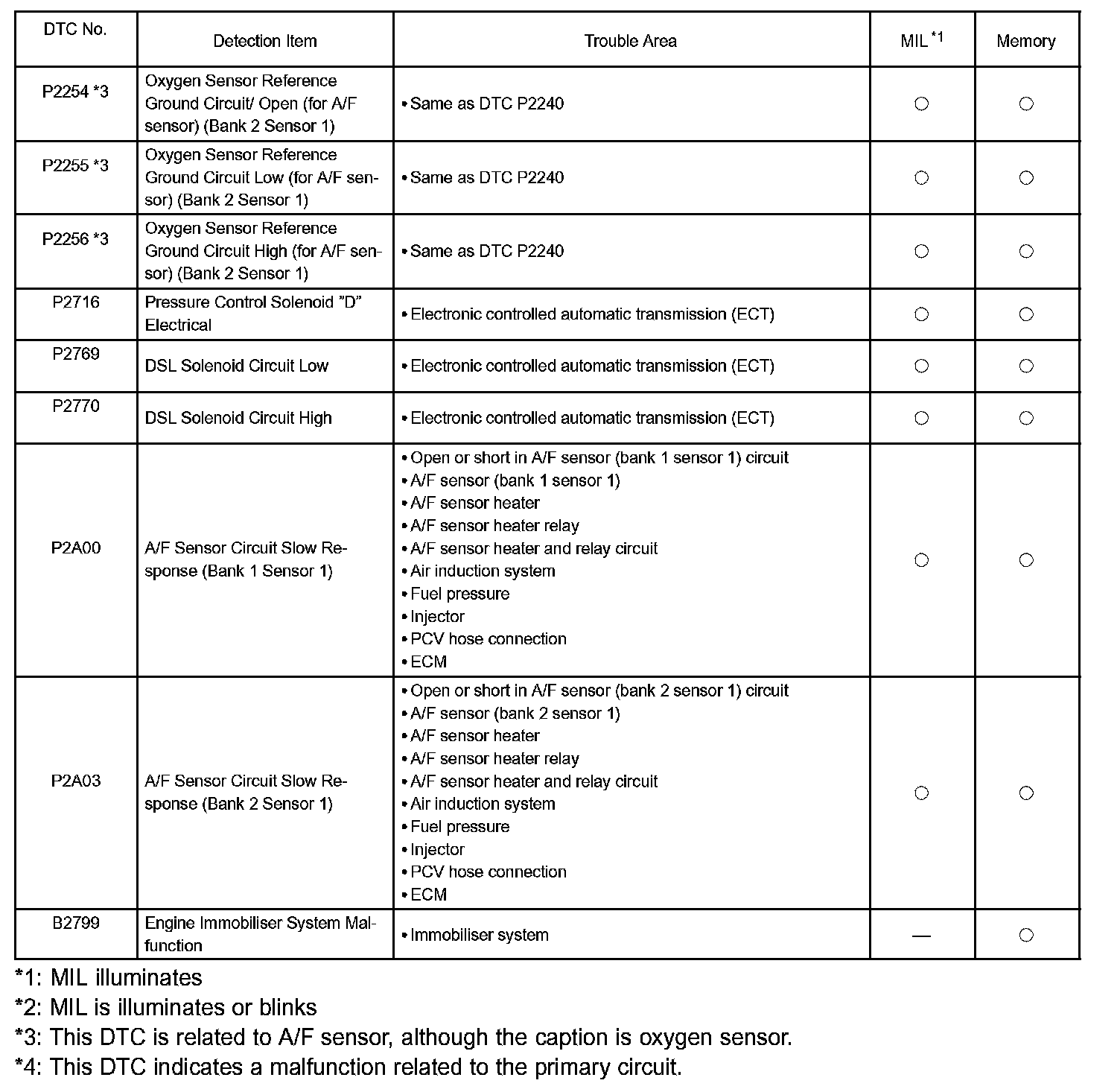

P2254 - B2799:

HINT: Parameters listed in the chart may be different than your readings depending on the type of instrument used and other factors.
During the DTC check, refer to the table if a malfunction code is displayed. For details about each code, refer to DTC Chart's left column.
