Home >> Lexus >> 2004 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

Engine Compartment:

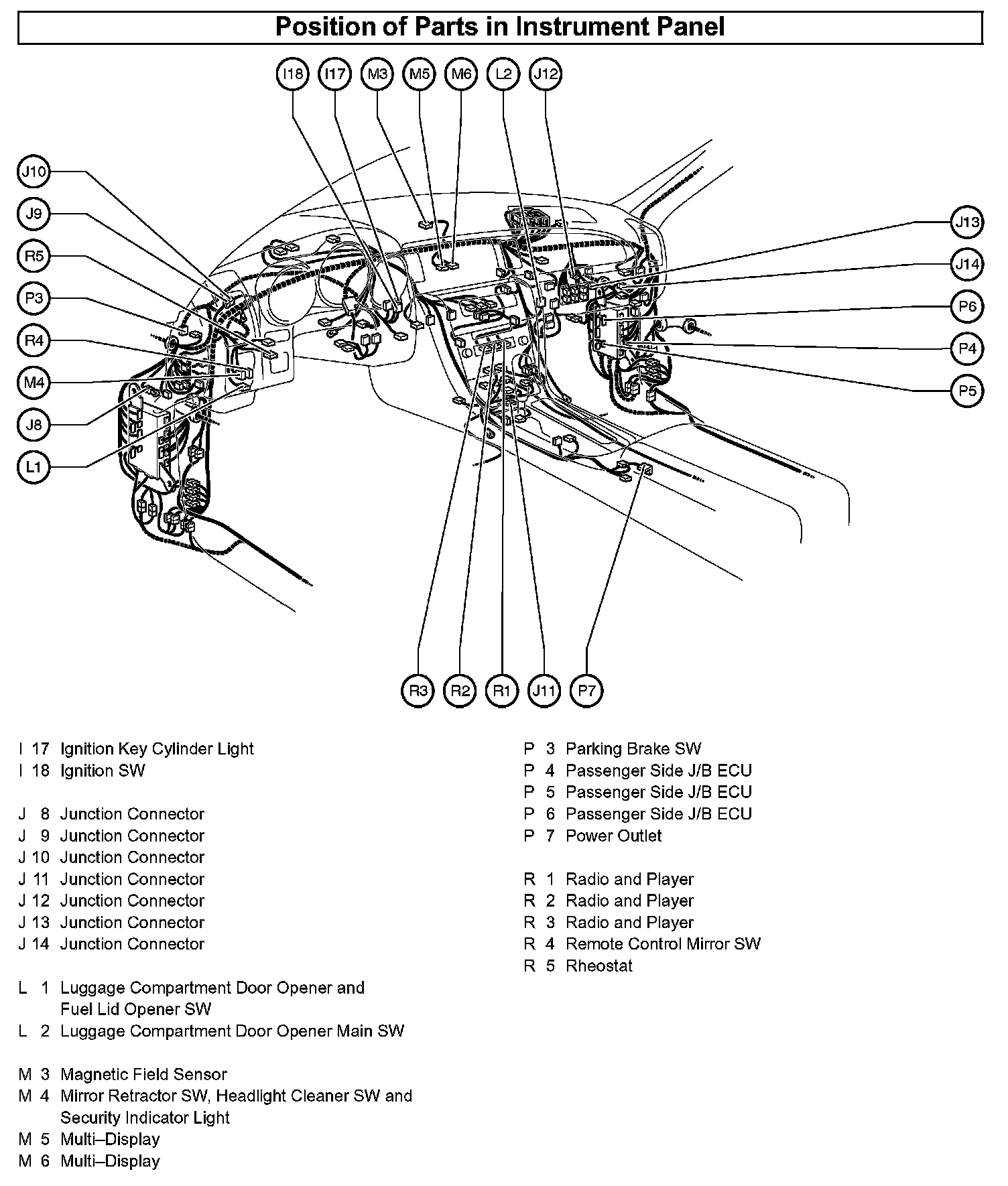

Instrument Panel:

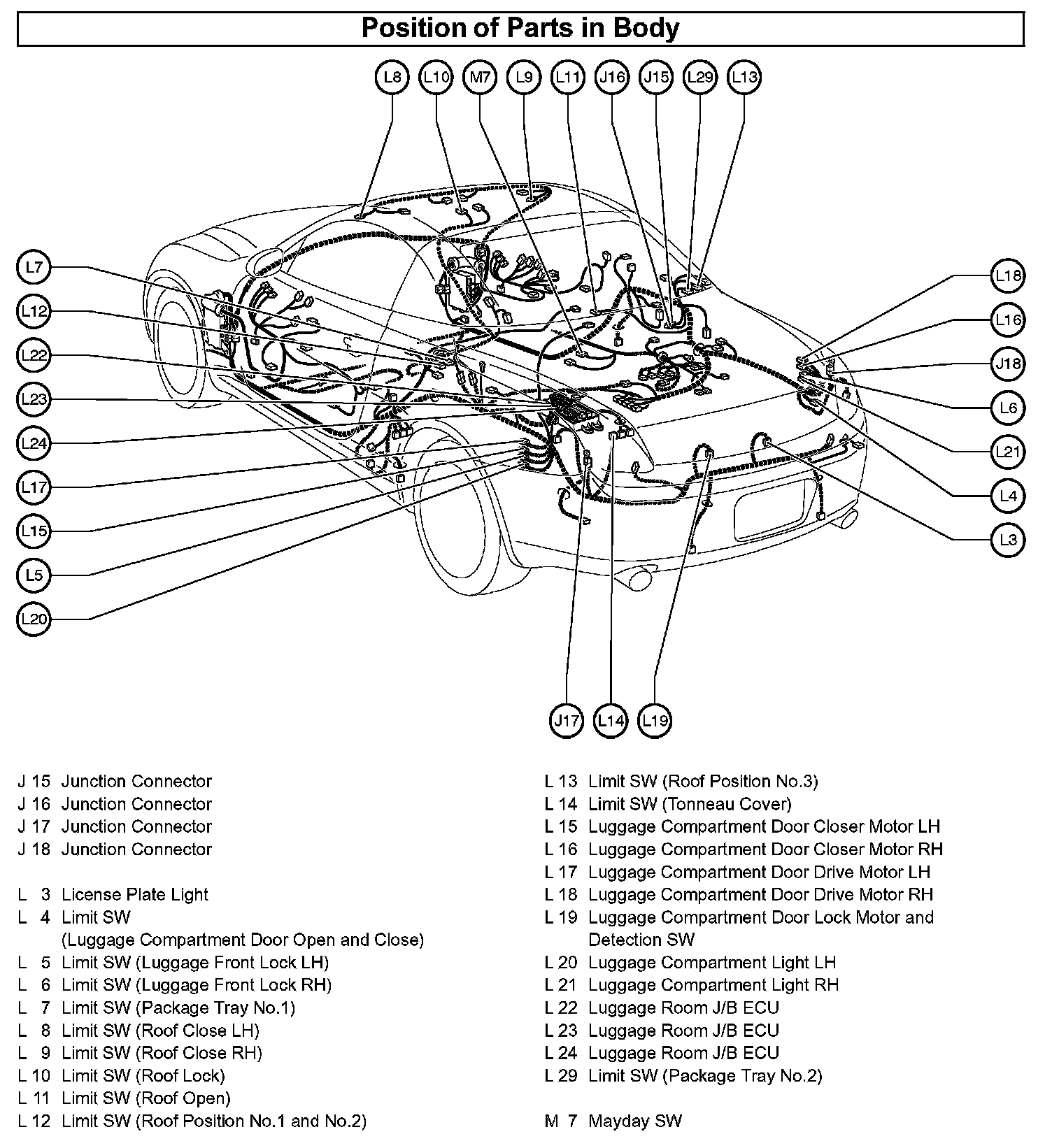

Body:




Ci - He:




Ig - Rh:




Ju - Ma:
