Parking Brake Lever: Testing and Inspection

1. Check Parking Brake Lever travel.

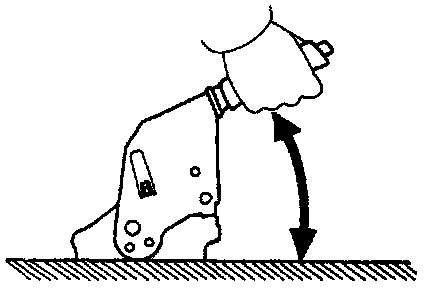

Checking Parking Brake Level Travel:

Pull the Parking Brake Lever all the way up, and count the number of clicks.
Parking Brake Lever travel at 196 N (20 kg, 44.1 lbs.): 5-8 clicks.
If incorrect, adjust the Parking Brake. Adjustments
