Activation When Disposing of Front Seat Outer Belt Pretensioner

When disposing of the front seat outer belt (with seat belt pretensioner) only. never use the customer's vehicle to deploy the seat belt pretensioner.

Remove the front seat outer belt from the vehicle and be sure to follow the procedure given below when deploying the seat belt pretensioner.

HINT: Have a battery ready as the power source to activate the seat belt pretensioner.





1. REMOVE FRONT SEAT OUTER BELT
Removal and Installation

- Cut the belt near the seat belt retractor.





2. CONFIRM FUNCTIONING OF SST

3. INSTALL SST

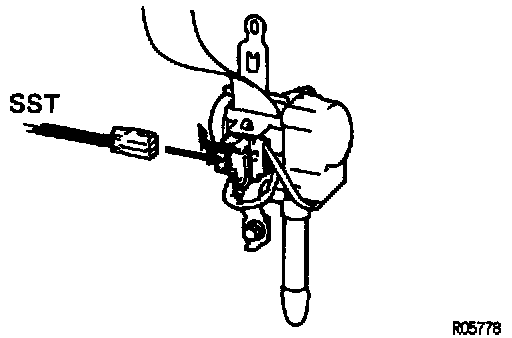

a. Connect the SST connector to the seat belt pretensioner connector.

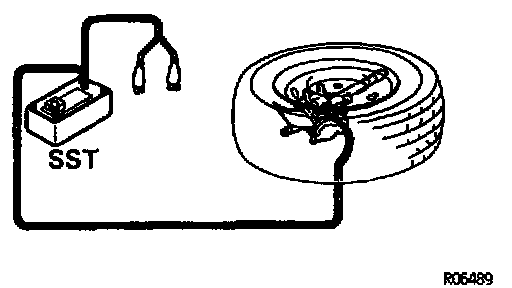

b. Locate the front seat outer belt on the ground and cover it by the disc wheel with tire.

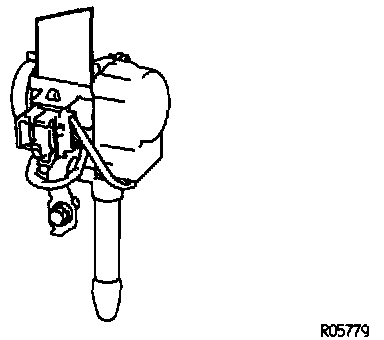

NOTICE: Place the front seat outer belt with the connector side facing up.

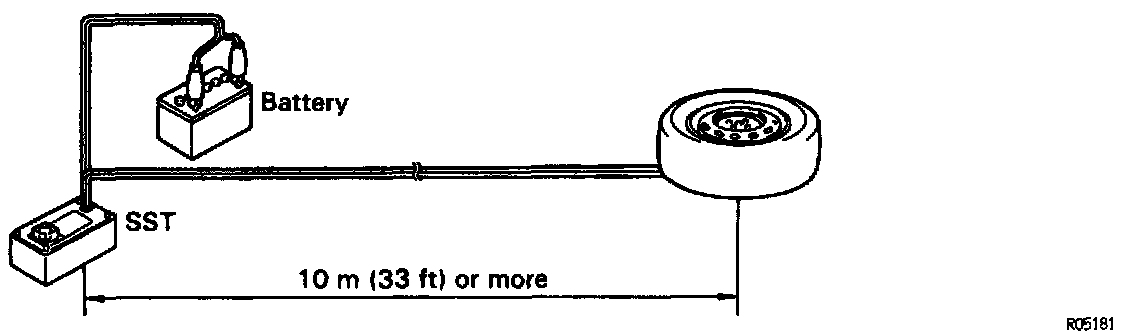

c. Move the SST to at least 10 m (33 ft) from the disc wheel.

NOTICE: Take care not to damage the SST wire harness.

d. Connect the SST red clip to the battery positive (+) terminal and black clip to the battery negative (-) terminal.

4. ACTIVATE SEAT BELT PRETENSIONER

CAUTION: Confirm that no-one is within 10 m (33 ft) of the disc wheel.

- Press the SST activation switch and activate the seat belt pretensioner.

HINT: The seat belt pretensioner operates simultaneously as the LED of the SST activation switch lights up.





5. DISPOSAL OF FRONT SEAT OUTER BELT (WITH SEAT BELT PRETENSIONER)
a. Remove the disc wheel and SST.

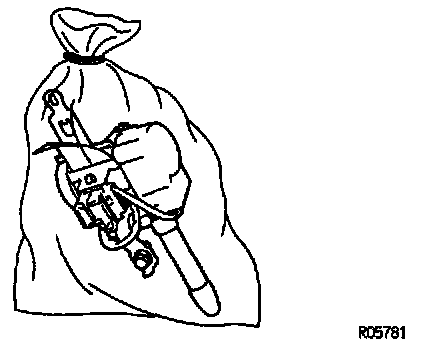

b. Place the front seat outer belt in a vinyl bag. Tie the end tightly and dispose of it the same way as other general parts.
