DTC 73

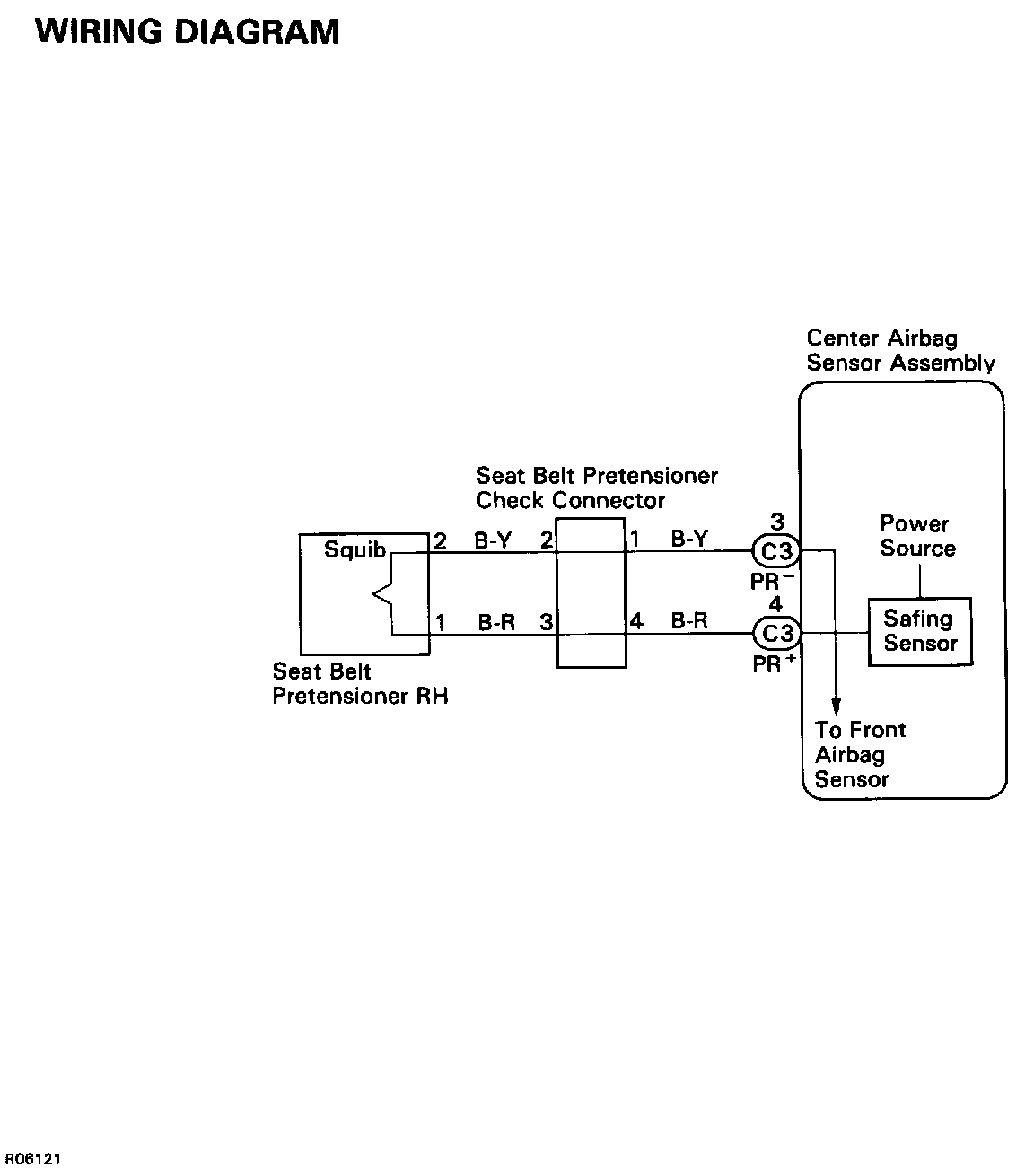

DTC 72 - Short in PR Squib Circuit (Between PR+ Wire Harness and PR- Wire Harness)The PR squib circuit consists of the center airbag sensor assembly, seat belt pretensioner check connector and seat belt pretensioner RH (squib). It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see FUNCTION OF COMPONENTS.
General Description

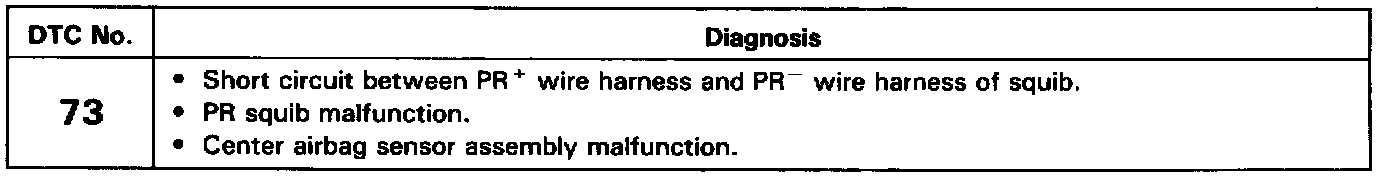

Diagnostic trouble code 73 is recorded when a short is detected in the PR+ wire harness and PR- wire harness of the squib circuit.

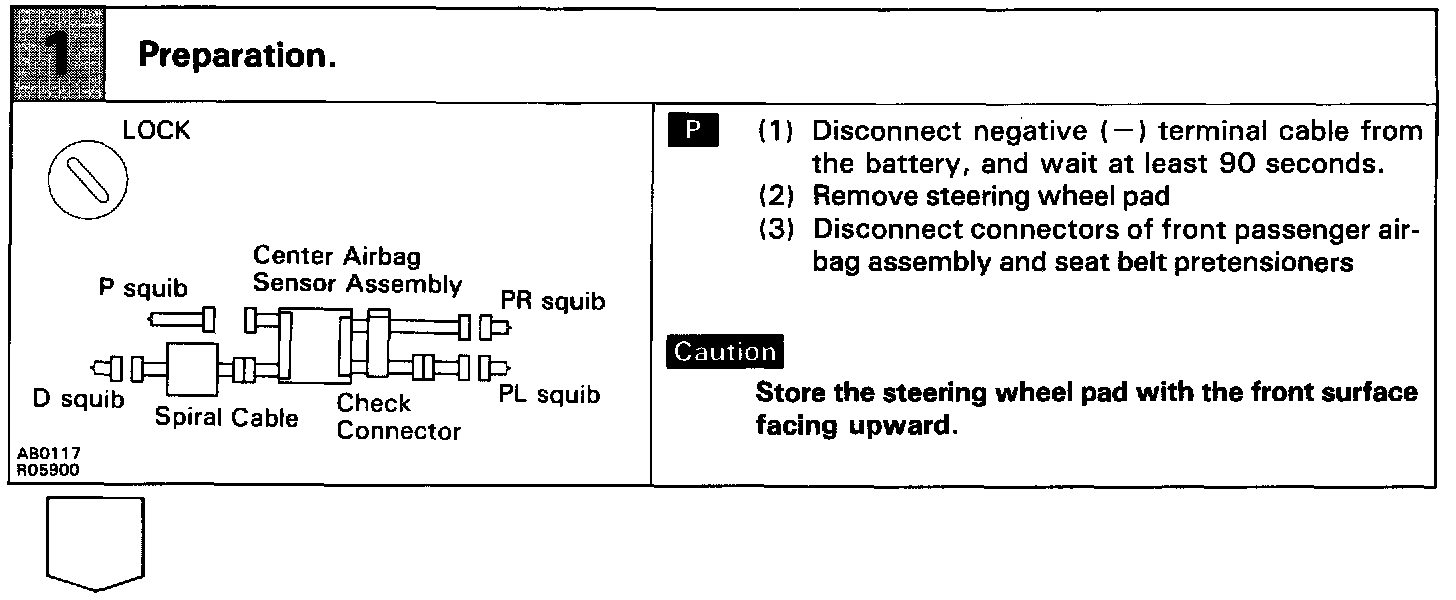

Inspection Procedures - Step 1:

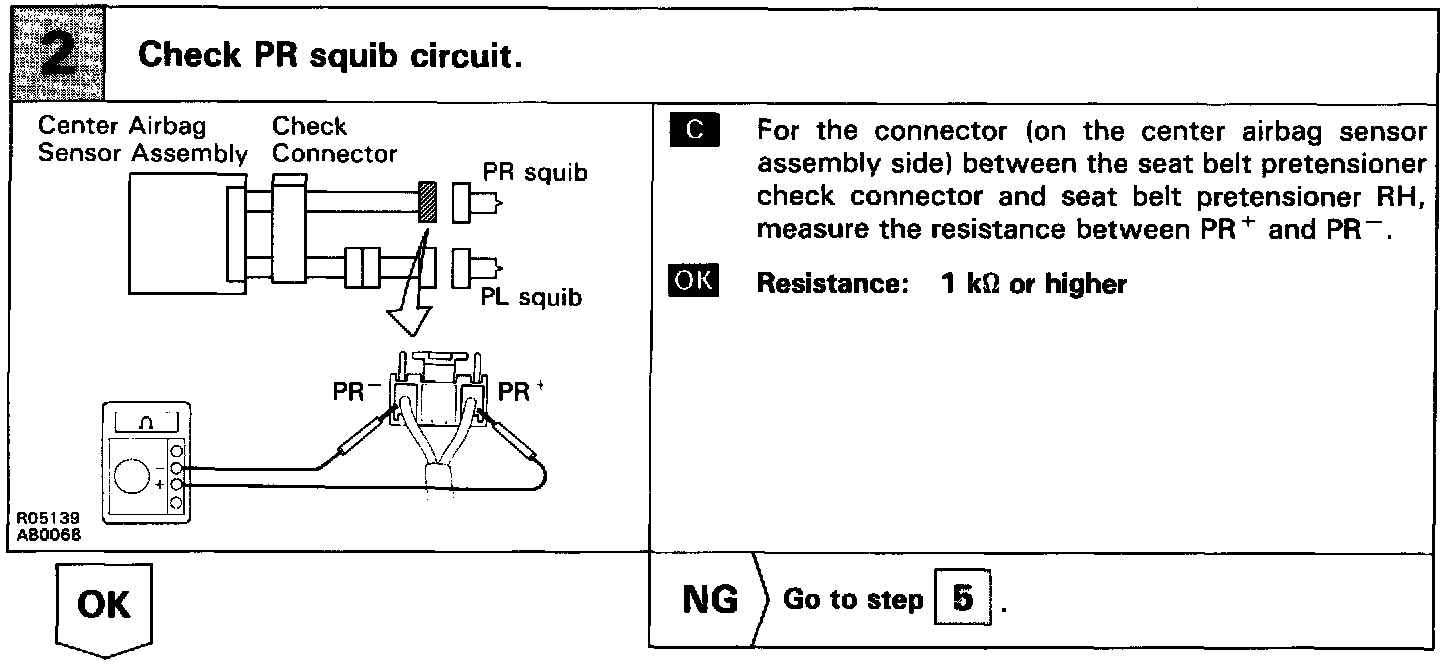

Step 2:

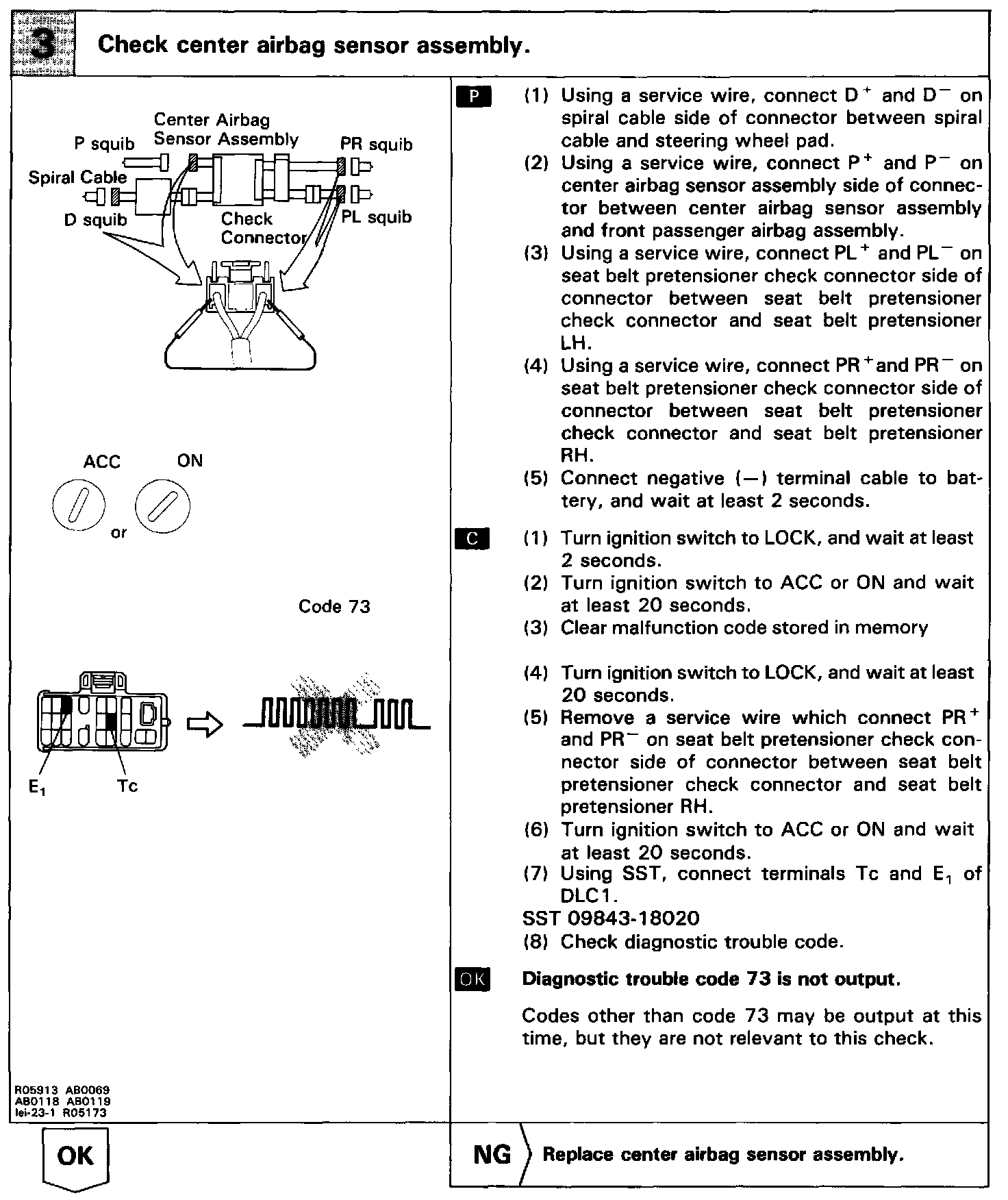

Step 3:

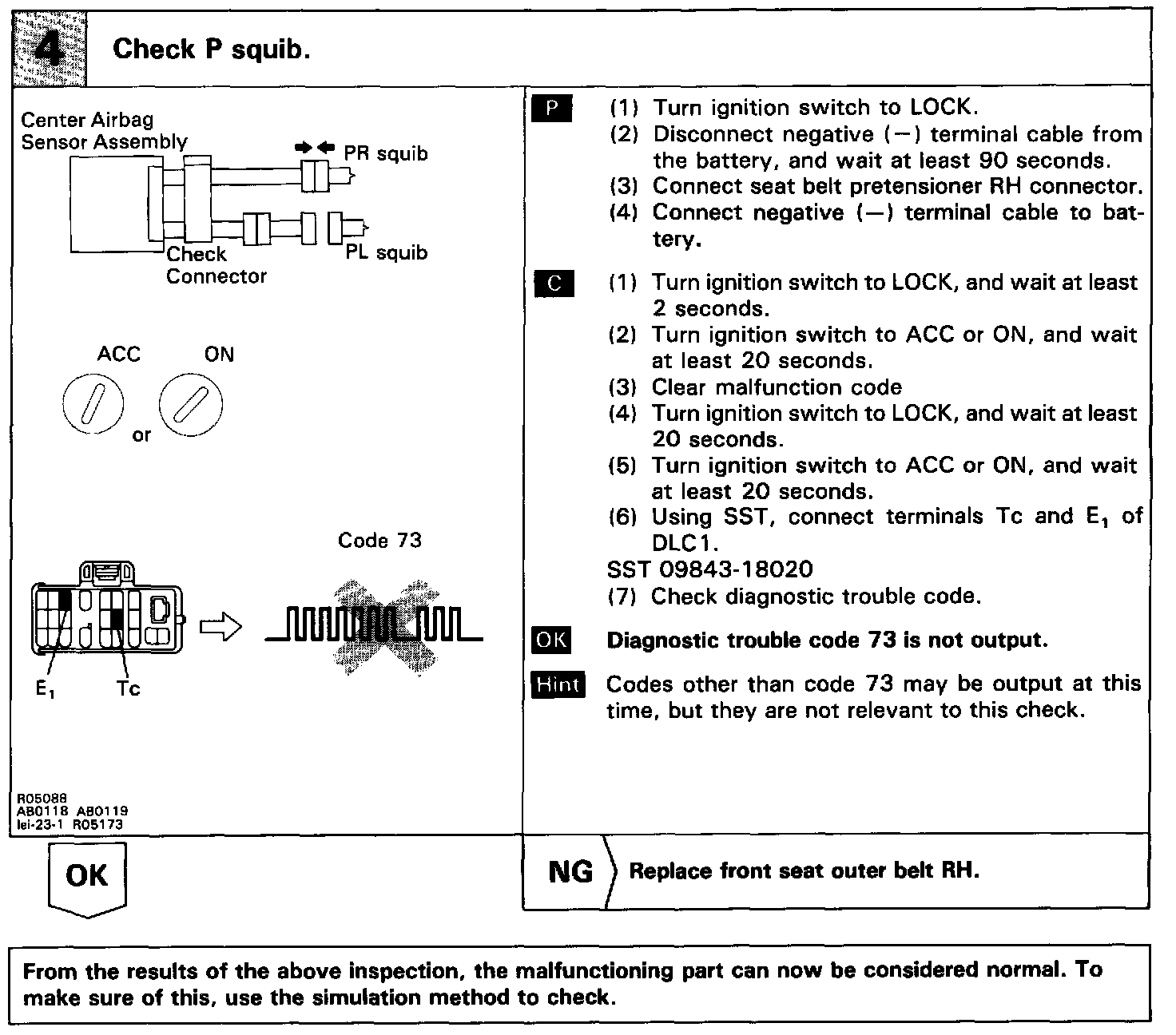

Step 4:

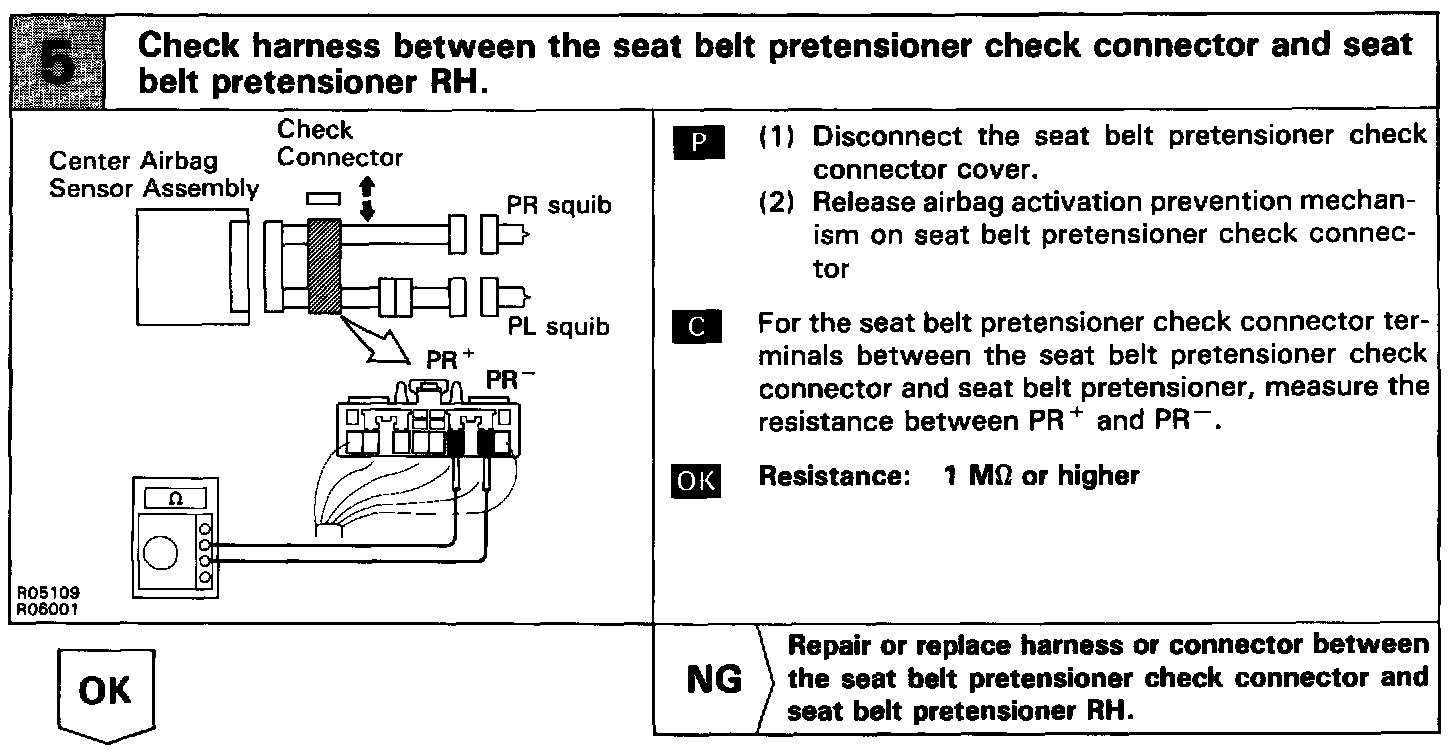

Step 5:

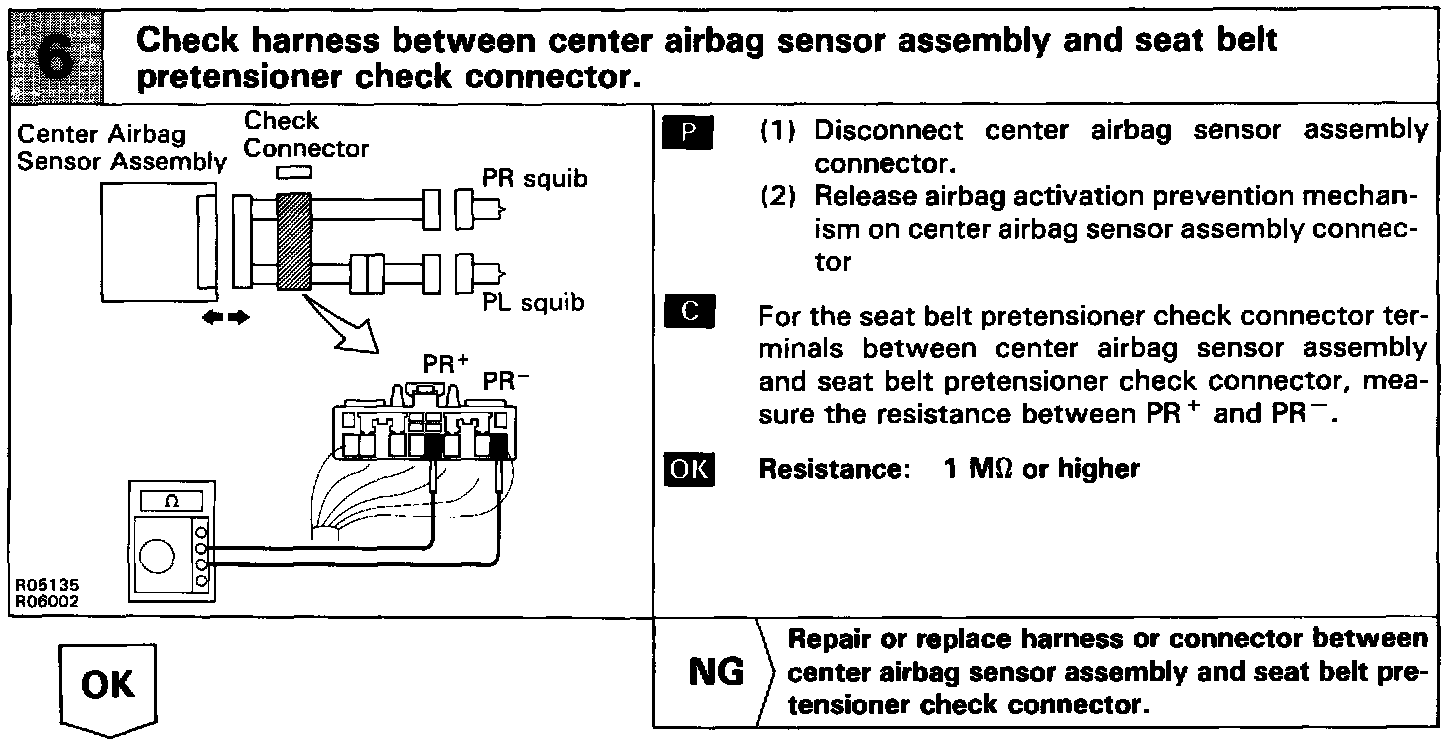

Step 6:
