DTC 64

DTC 64 - Open in PL Squib Circuit

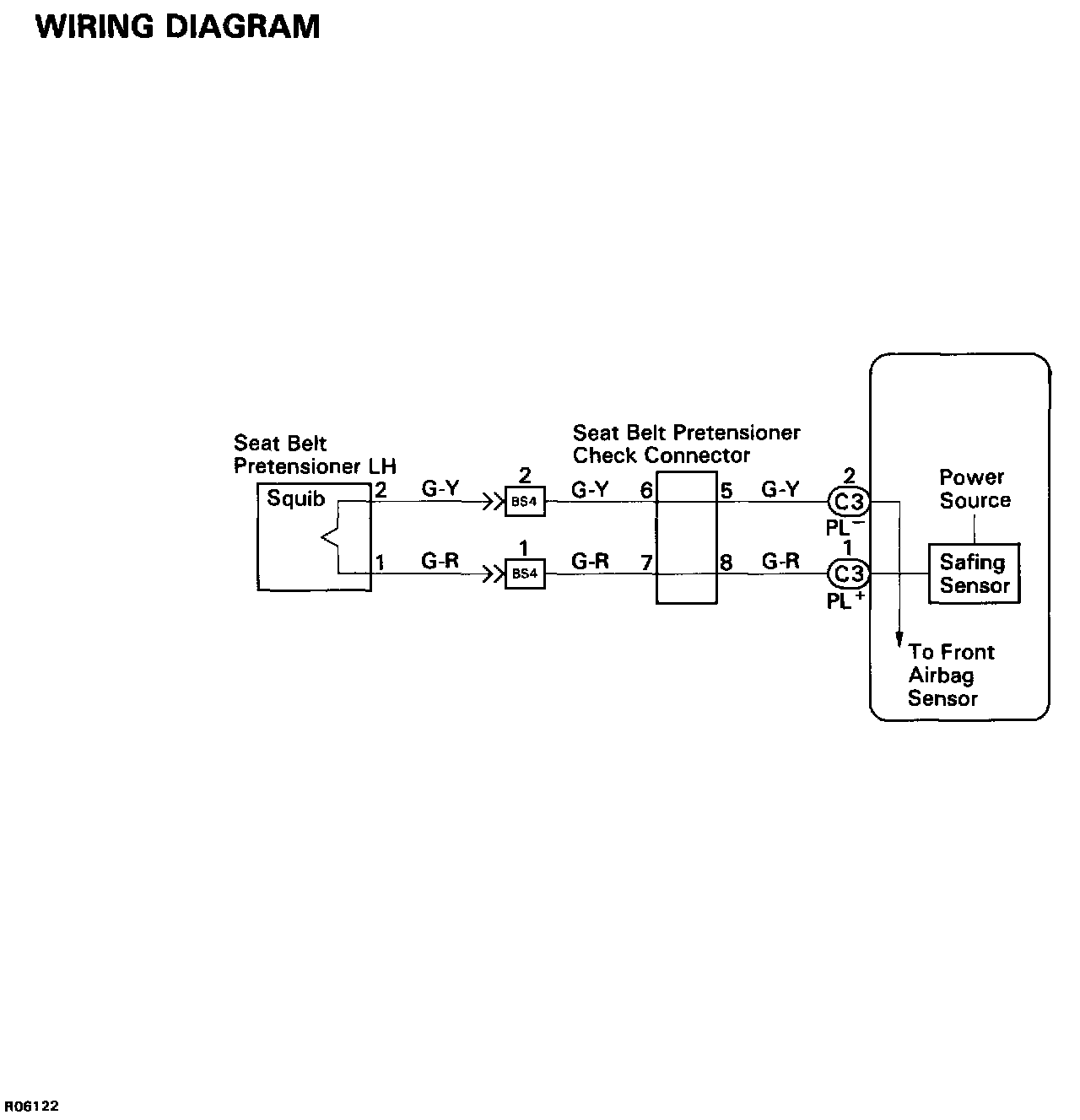

The PL squib circuit consists of the center airbag sensor assembly, seat belt pretensioner check connector and seat belt pretensioner LH (squib). It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see FUNCTION OF COMPONENTS.
General Description

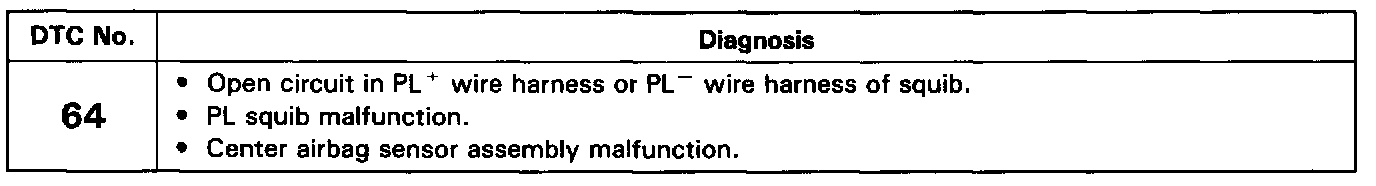

Diagnostic trouble code 64 recorded when an open is detected in the PL squib circuit.

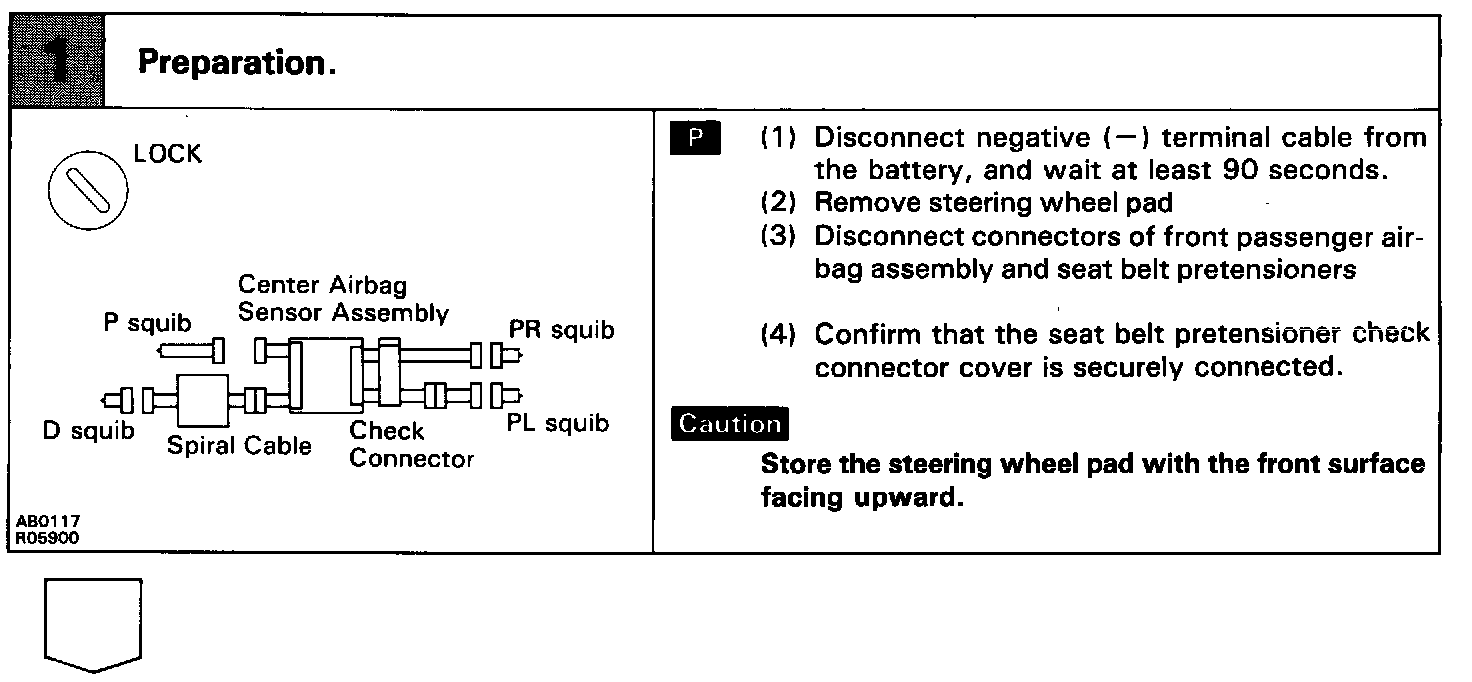

Inspection Procedures - Step 1:

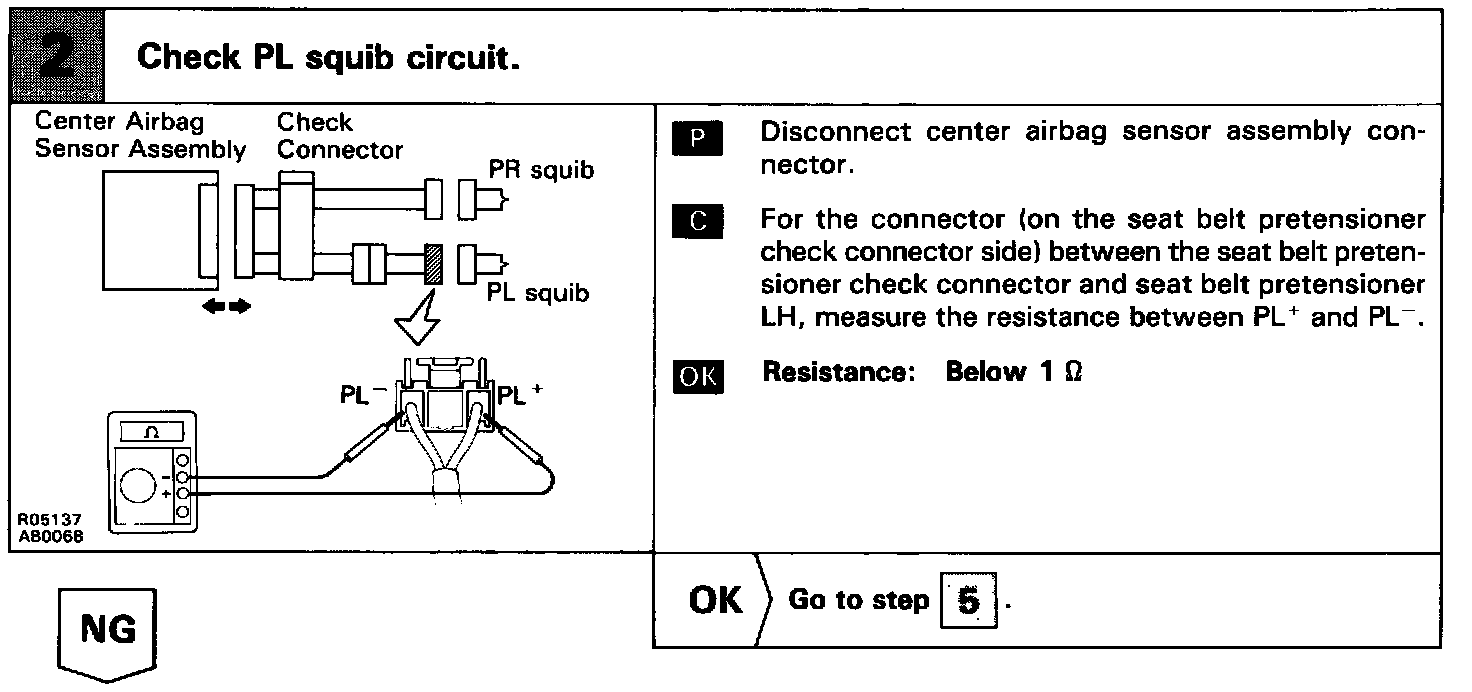

Step 2:

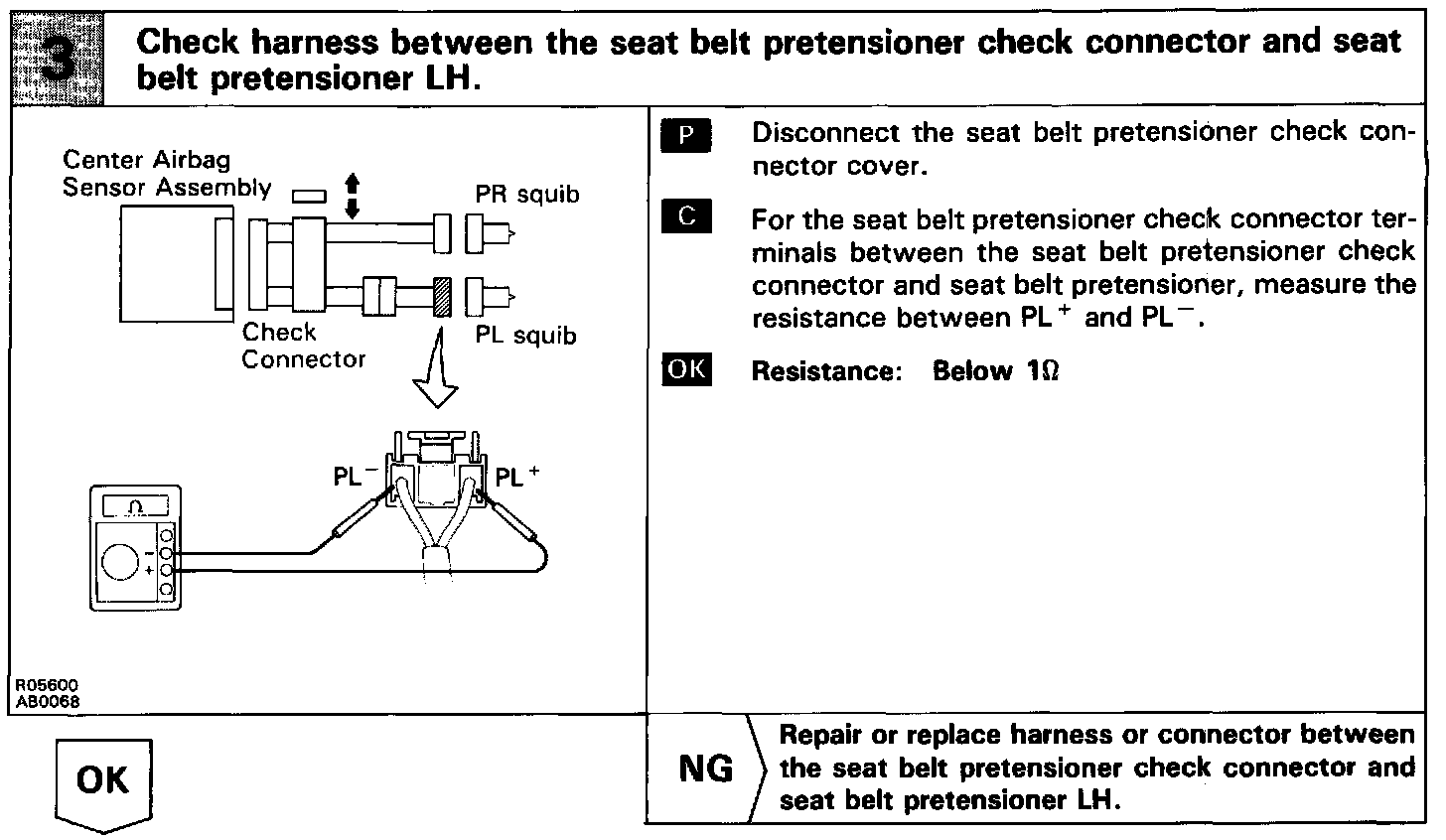

Step 3:

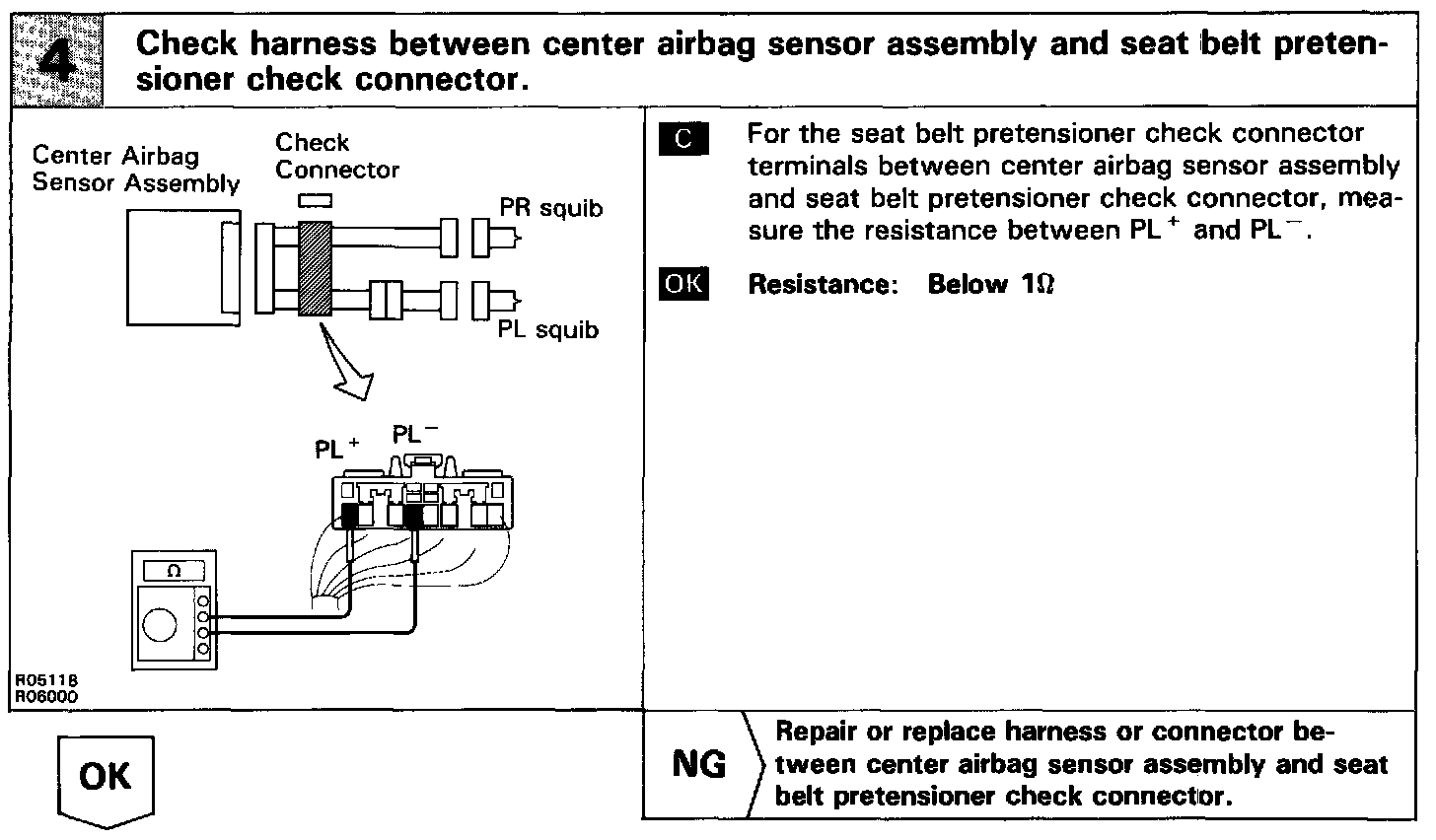

Step 4:

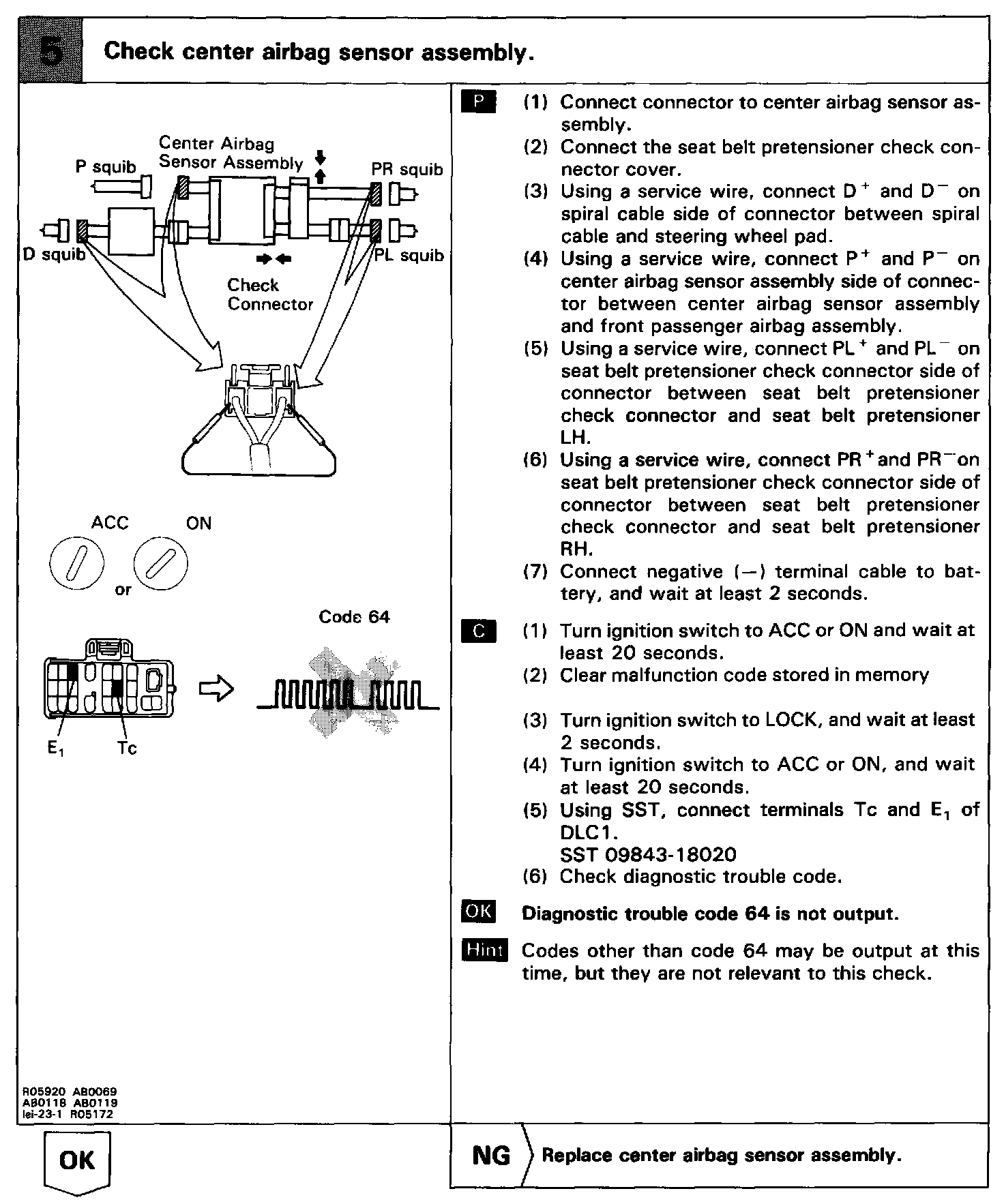

Step 5:

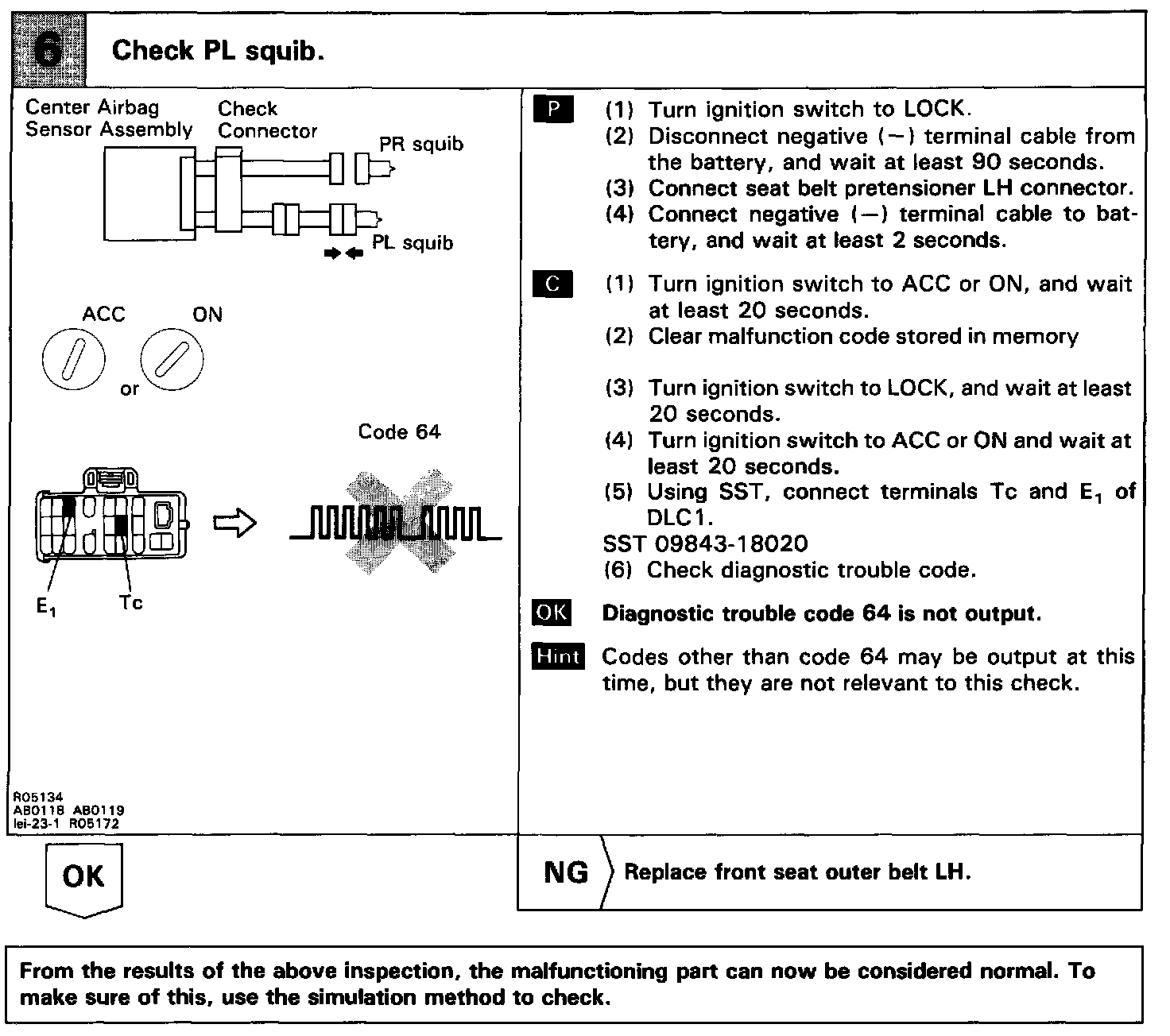

Step 6:
