Service Data








SPECIFICATIONS: 3UR-FE ENGINE MECHANICAL: SERVICE DATA

SERVICE DATA

Engine





Engine Unit

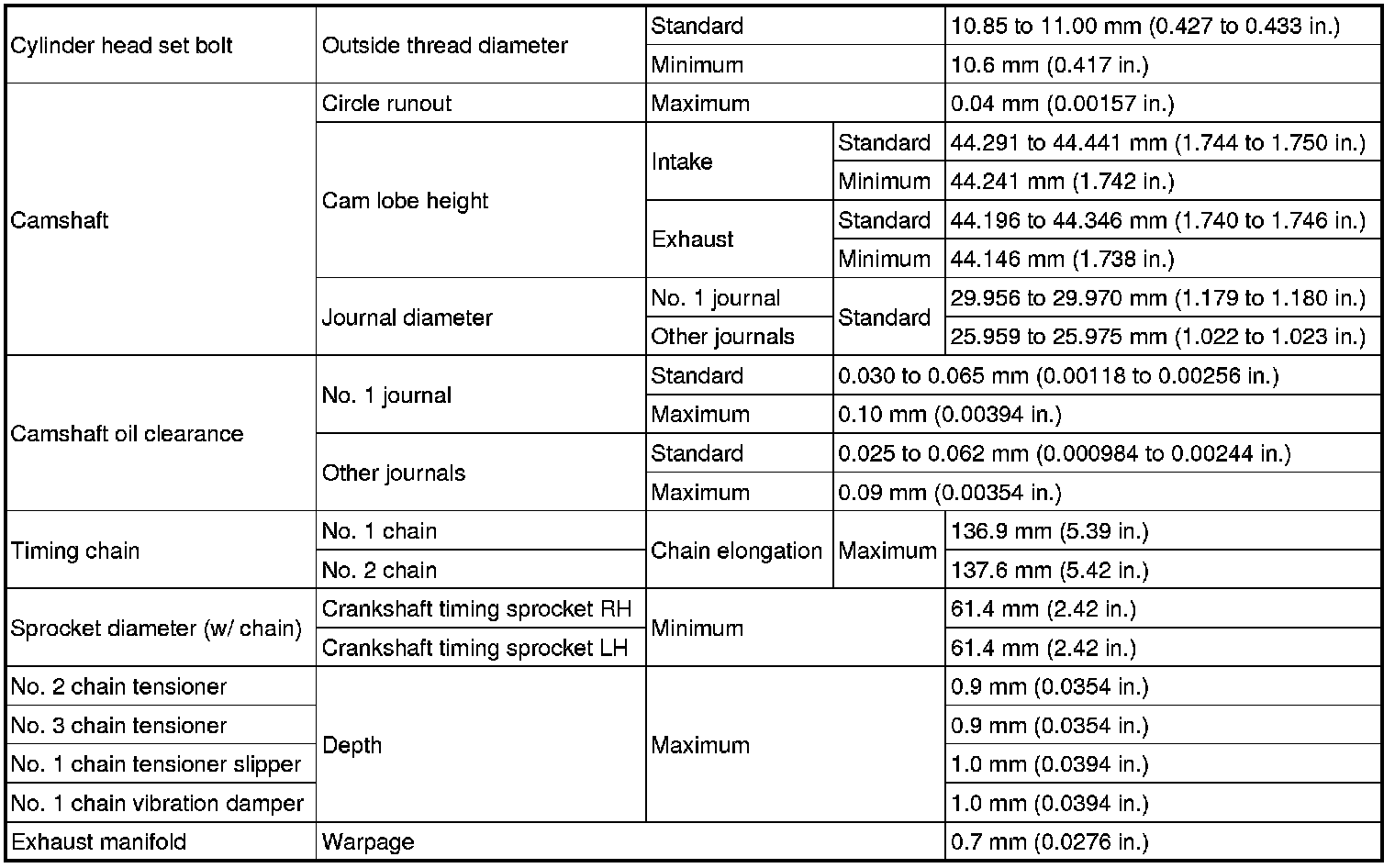

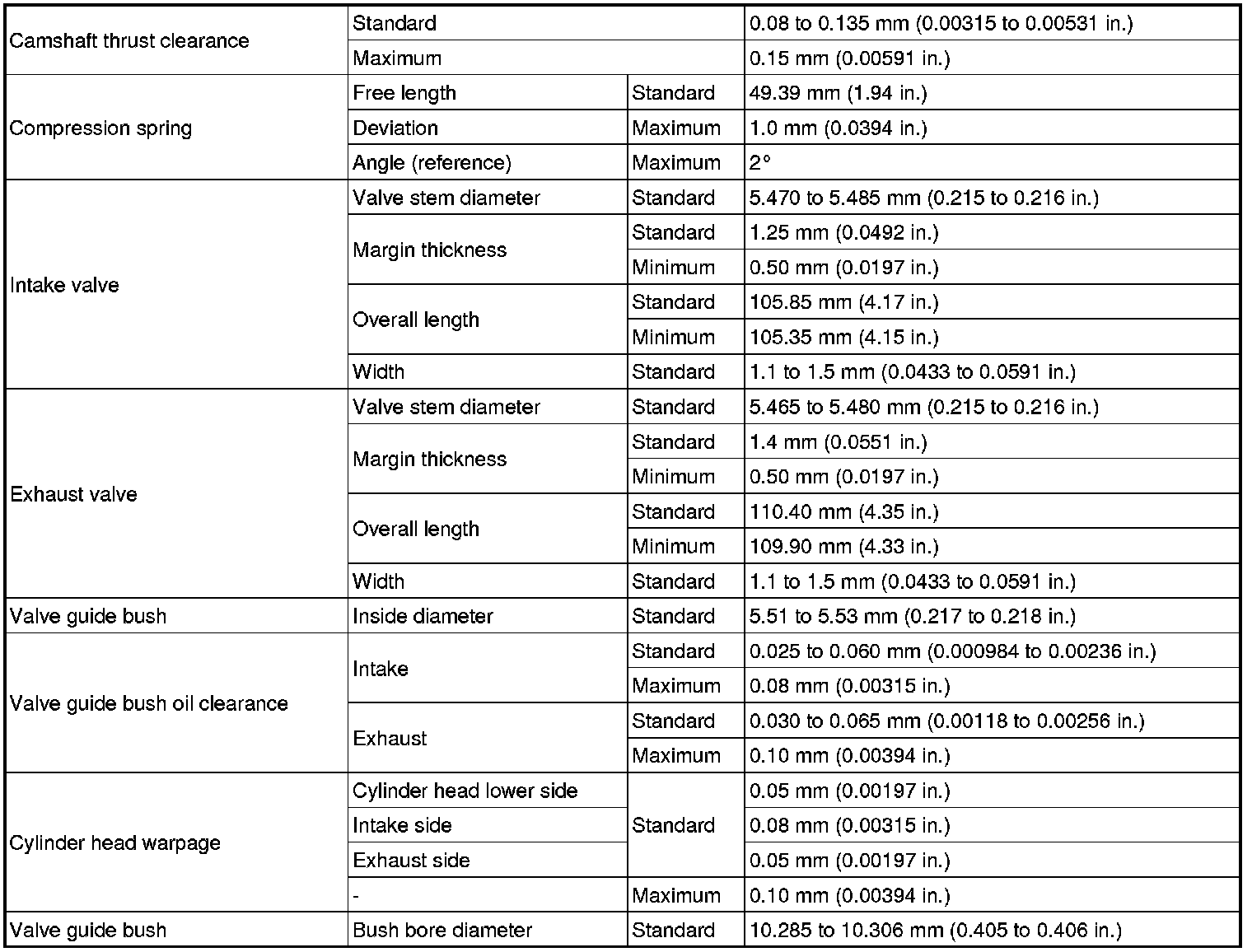

Cylinder Head

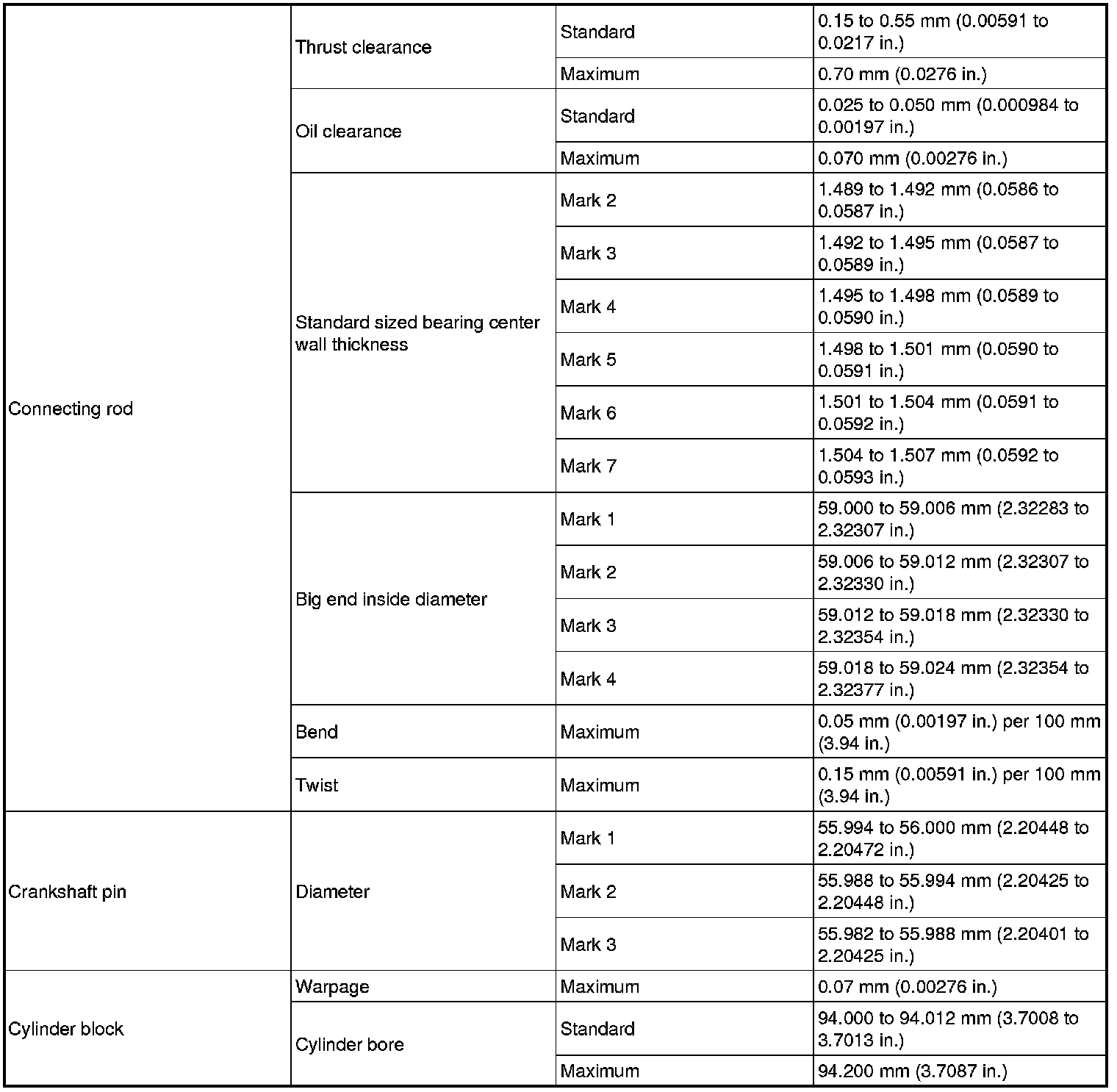

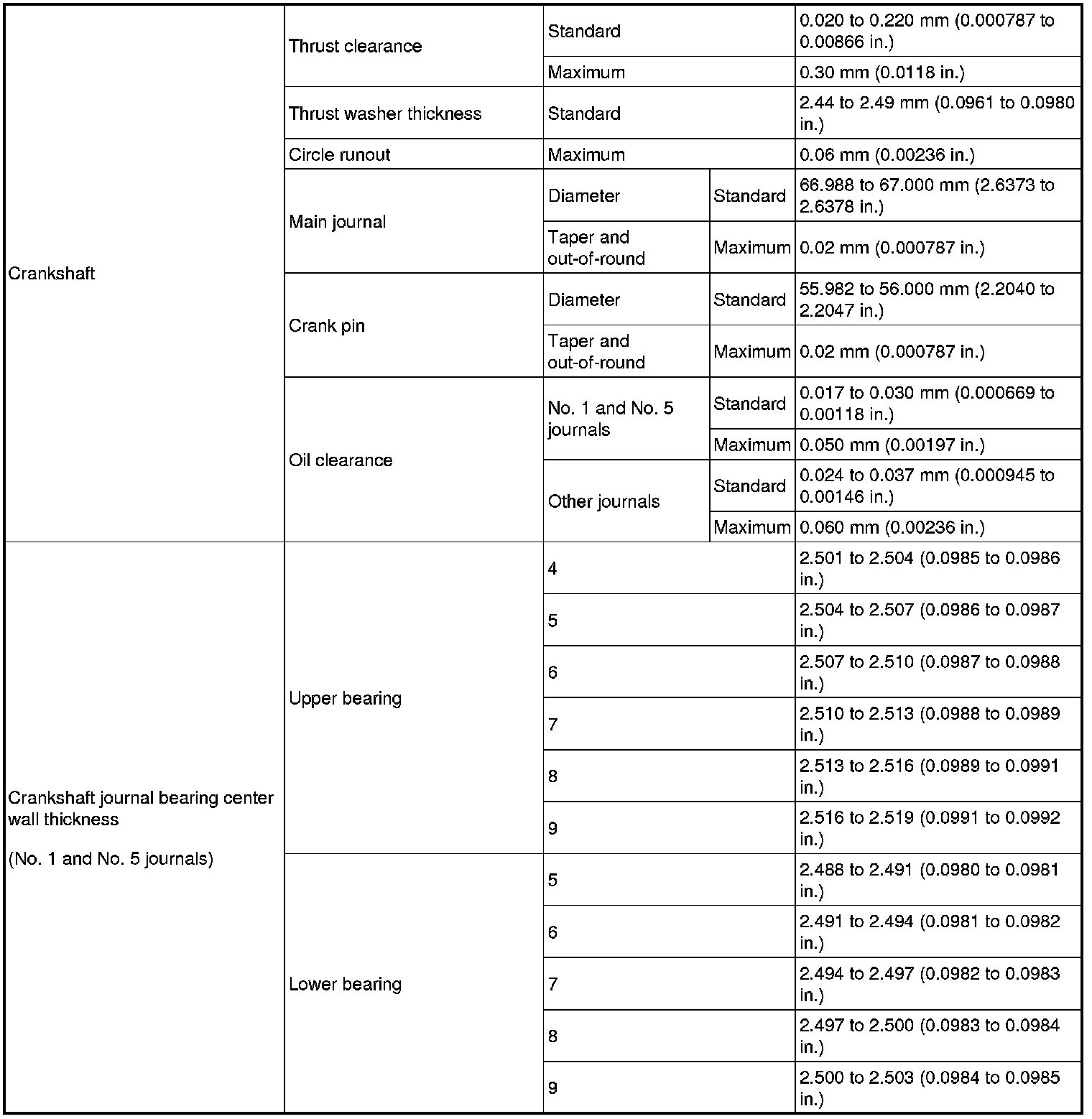

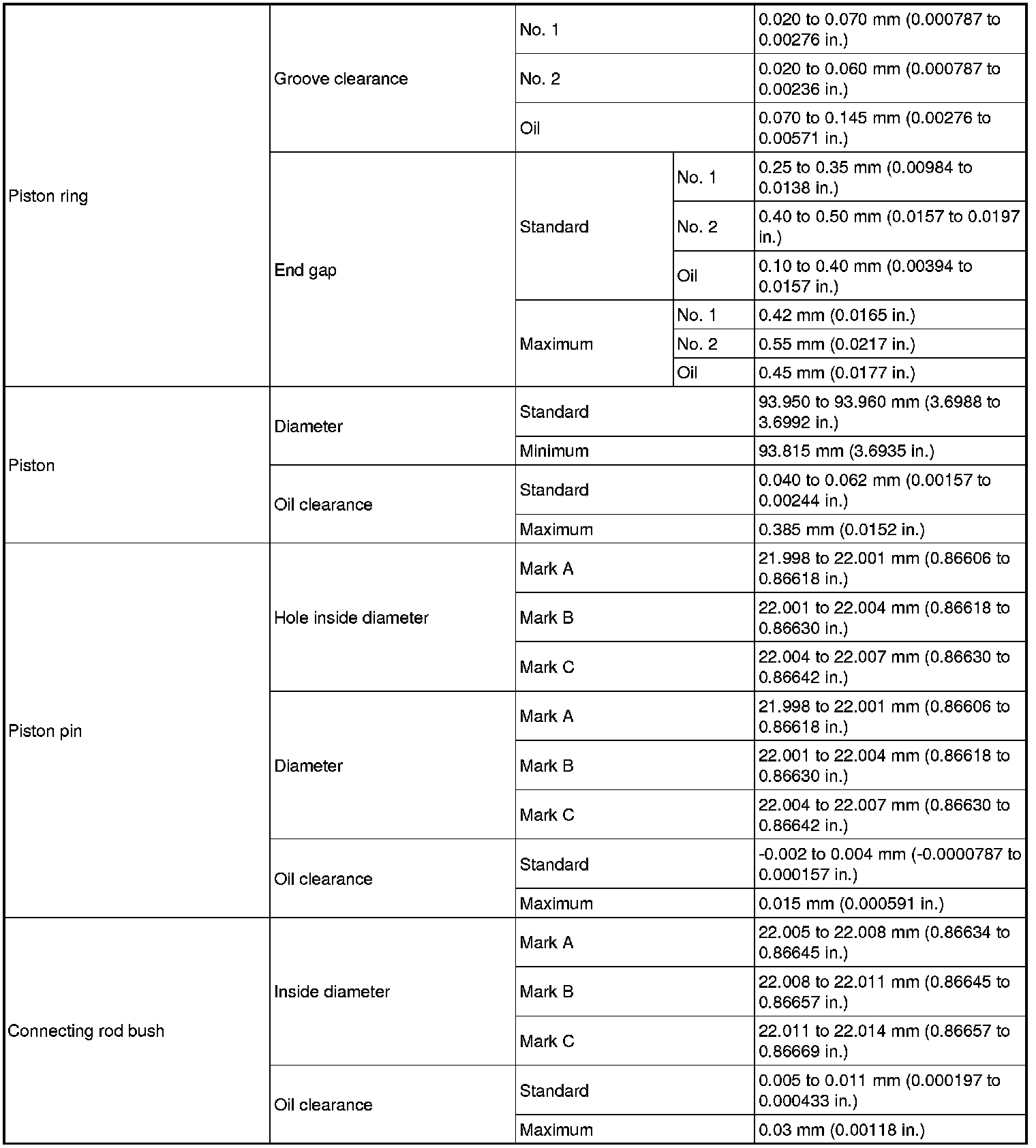

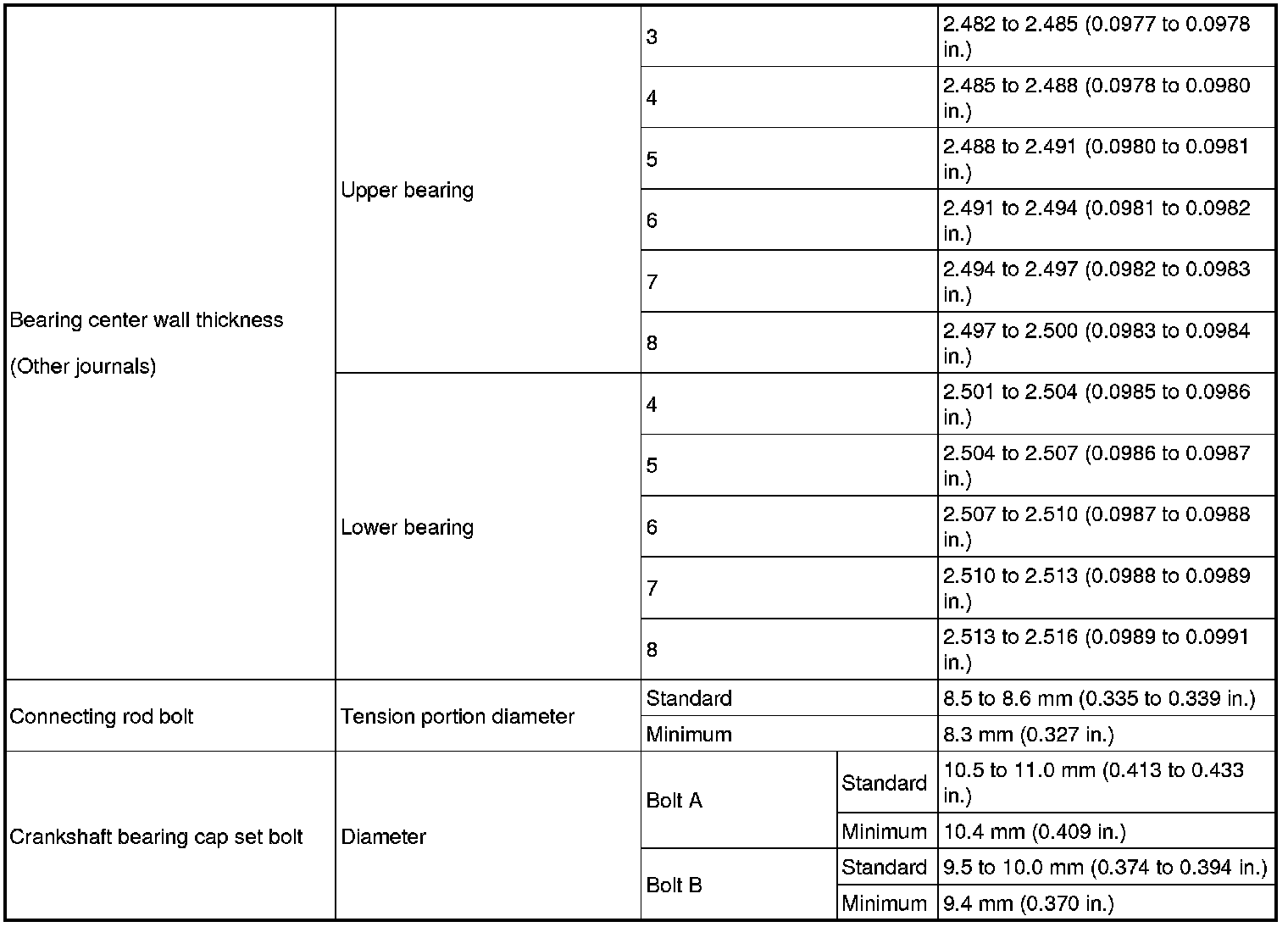

Cylinder Block
