Lexus Truck
>>
2009
>>
GX 470 V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Body Control Module
>>
Locations
>>

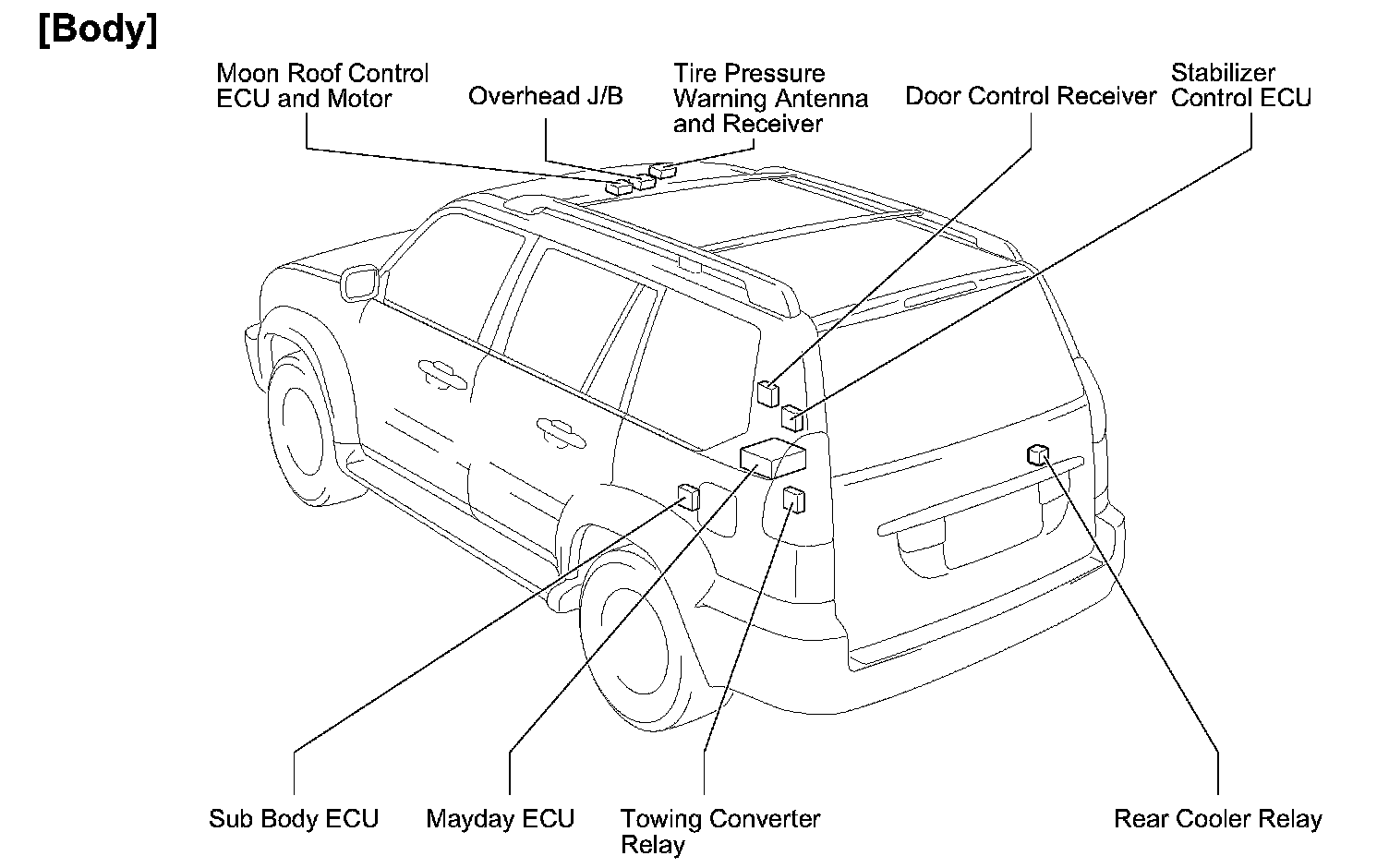

Body
Body
Body:

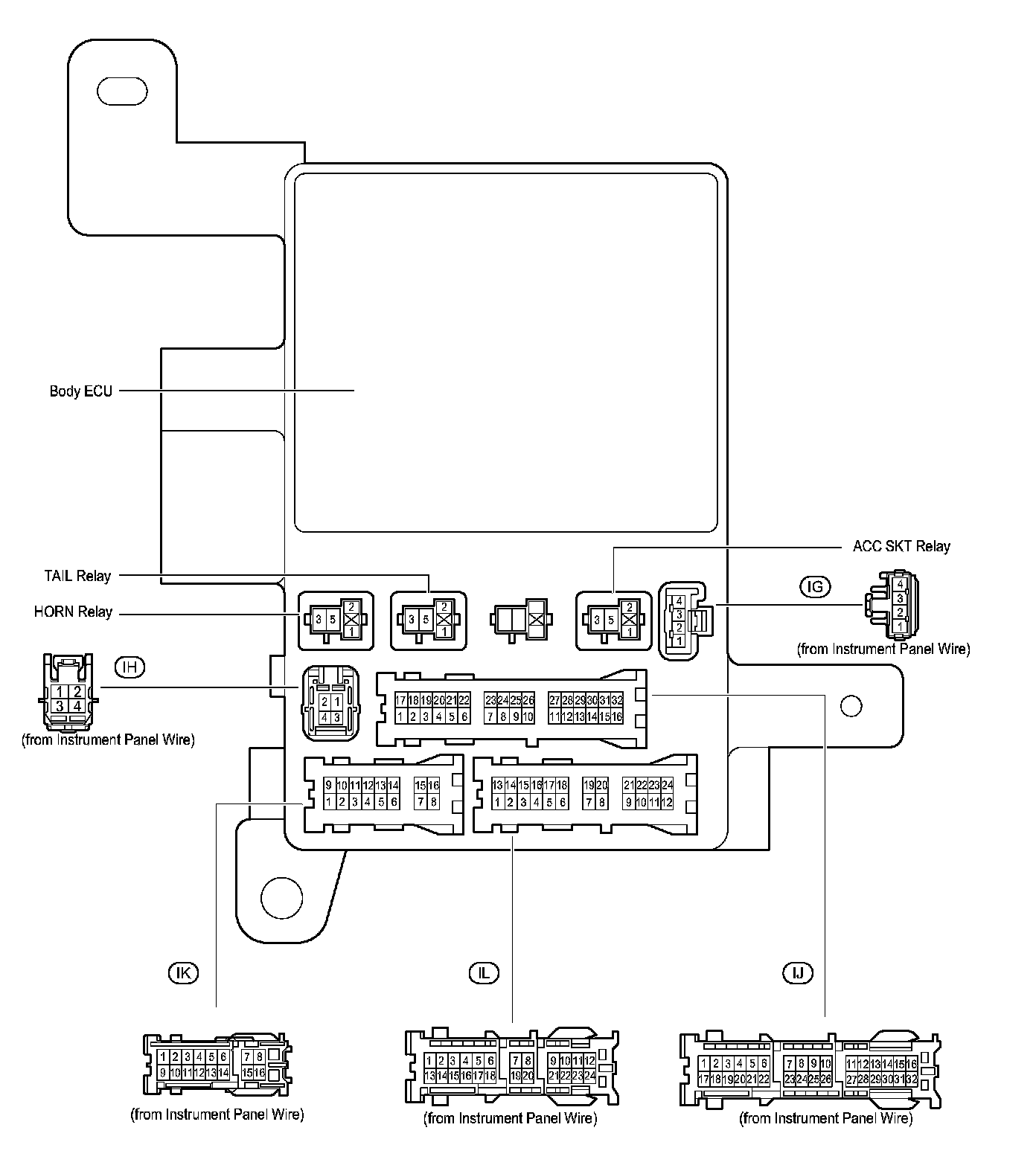

Driver Side J/B - Lower Finish Panel:
