C1234
C1234

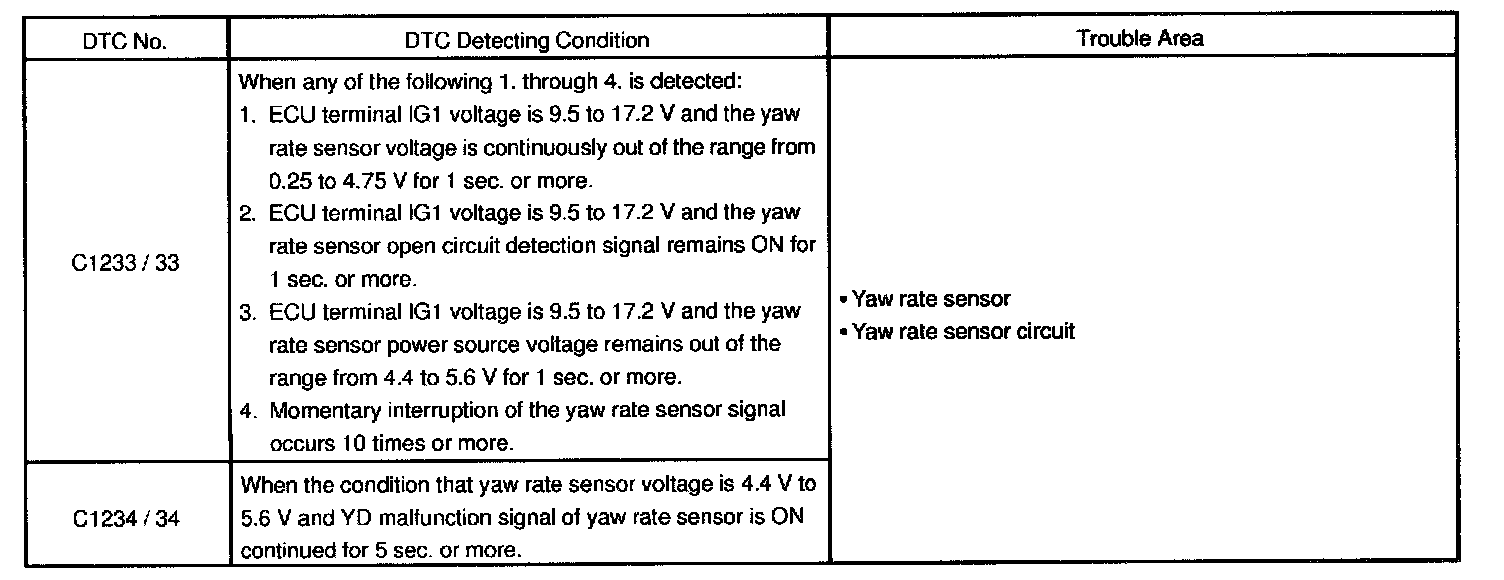

DTC Detecting Condition:
CIRCUIT DESCRIPTION

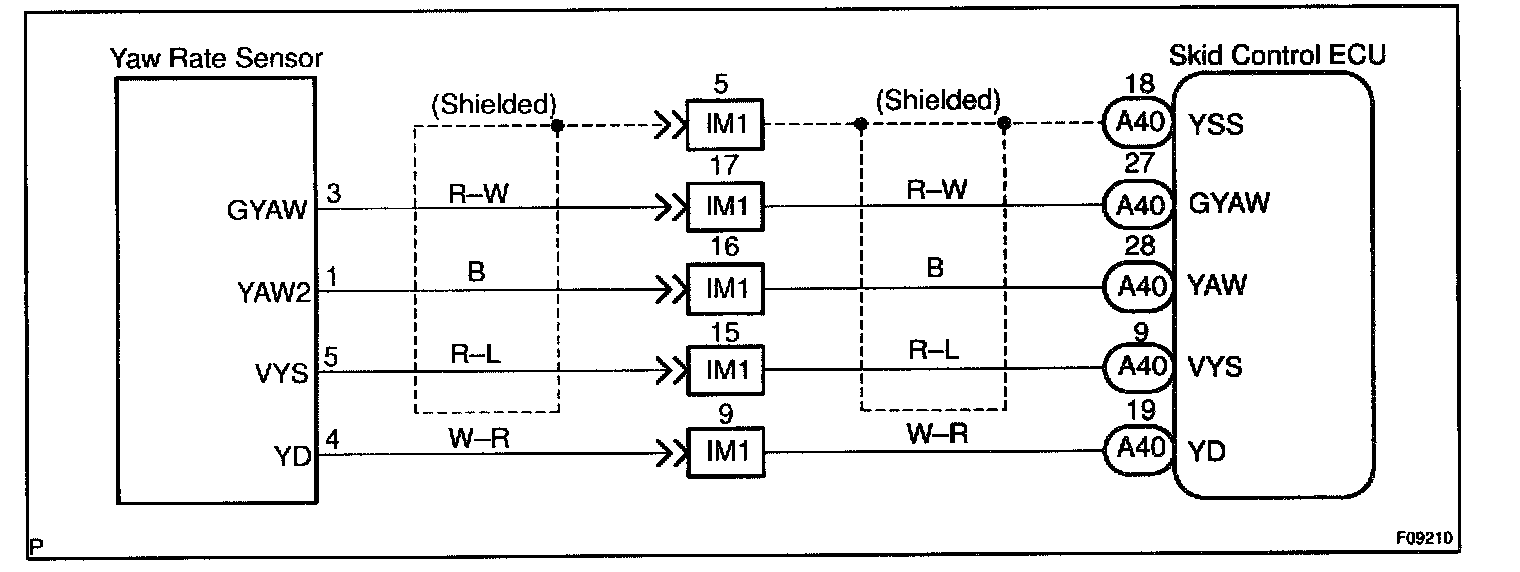

Wiring Diagram:

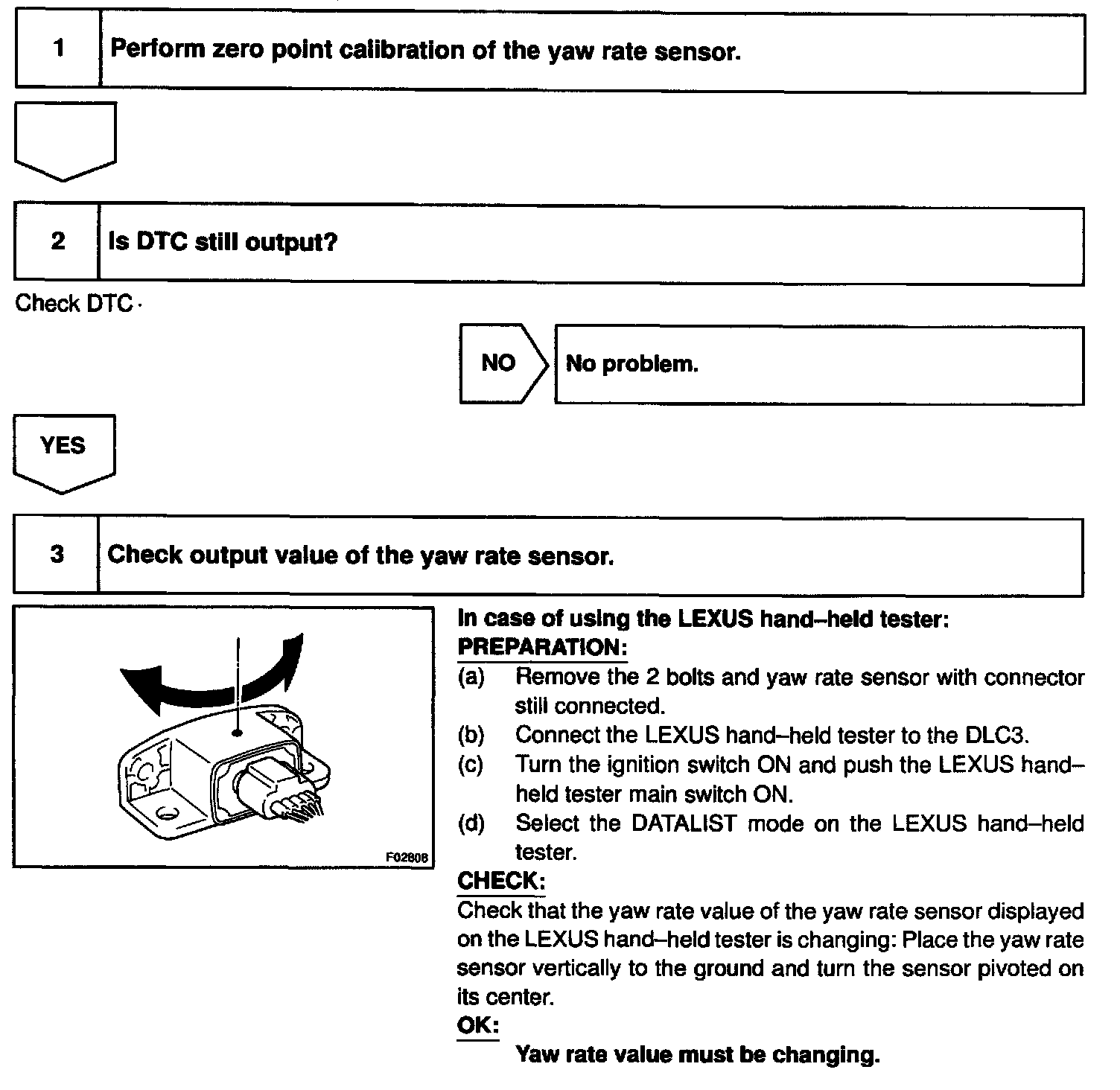

Steps 1 - 3:

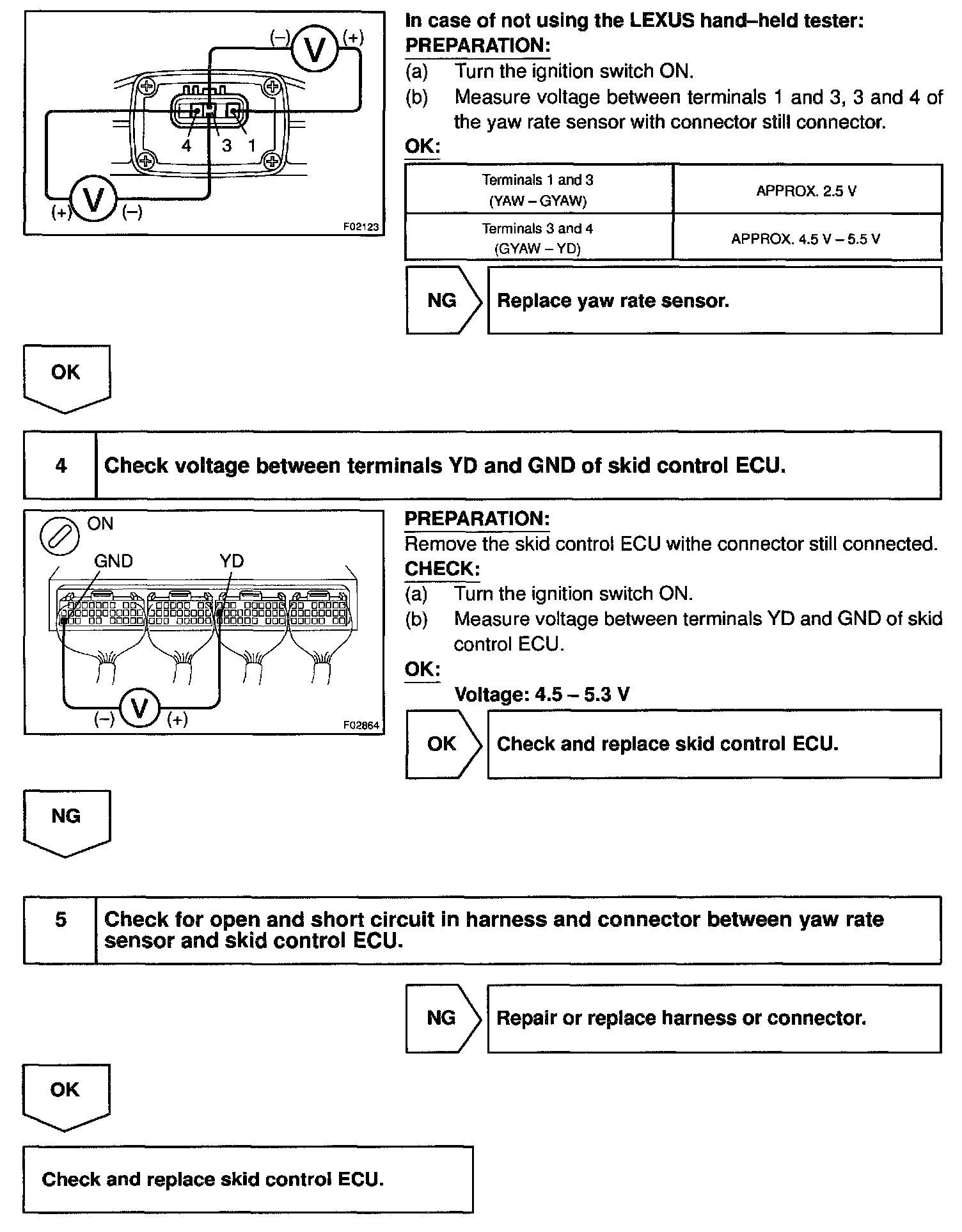

Steps 3 (continued) - 5:
INSPECTION PROCEDURE
