Home >> Land Rover >> 2009 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Locations

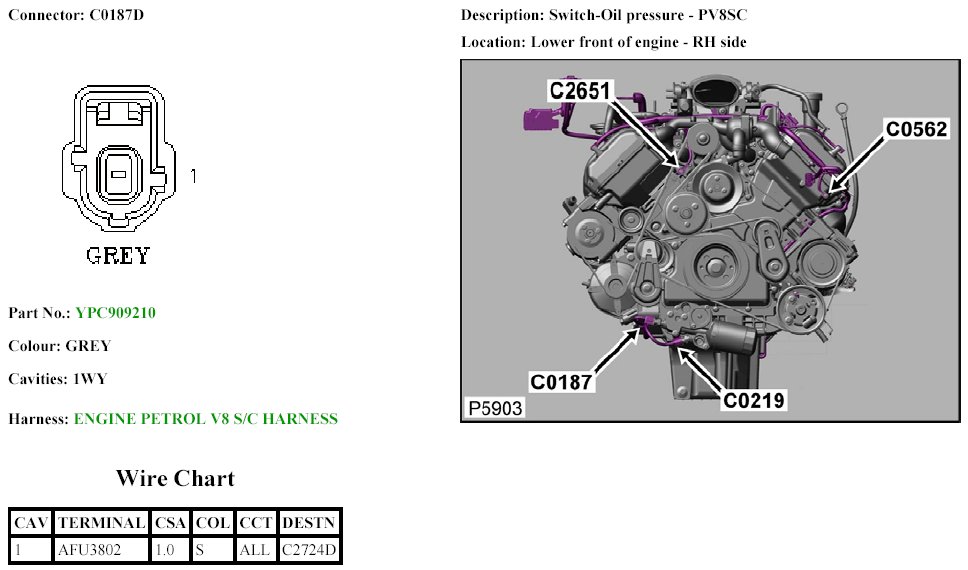

Oil Pressure Sensor: Locations

Switch-Oil Pressure-PV8SC

C0187D:
