Home >> Land Rover >> 2009 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module >> Dynamic Reponse Module

Dynamic Reponse Module

Dynamic Reponse Module

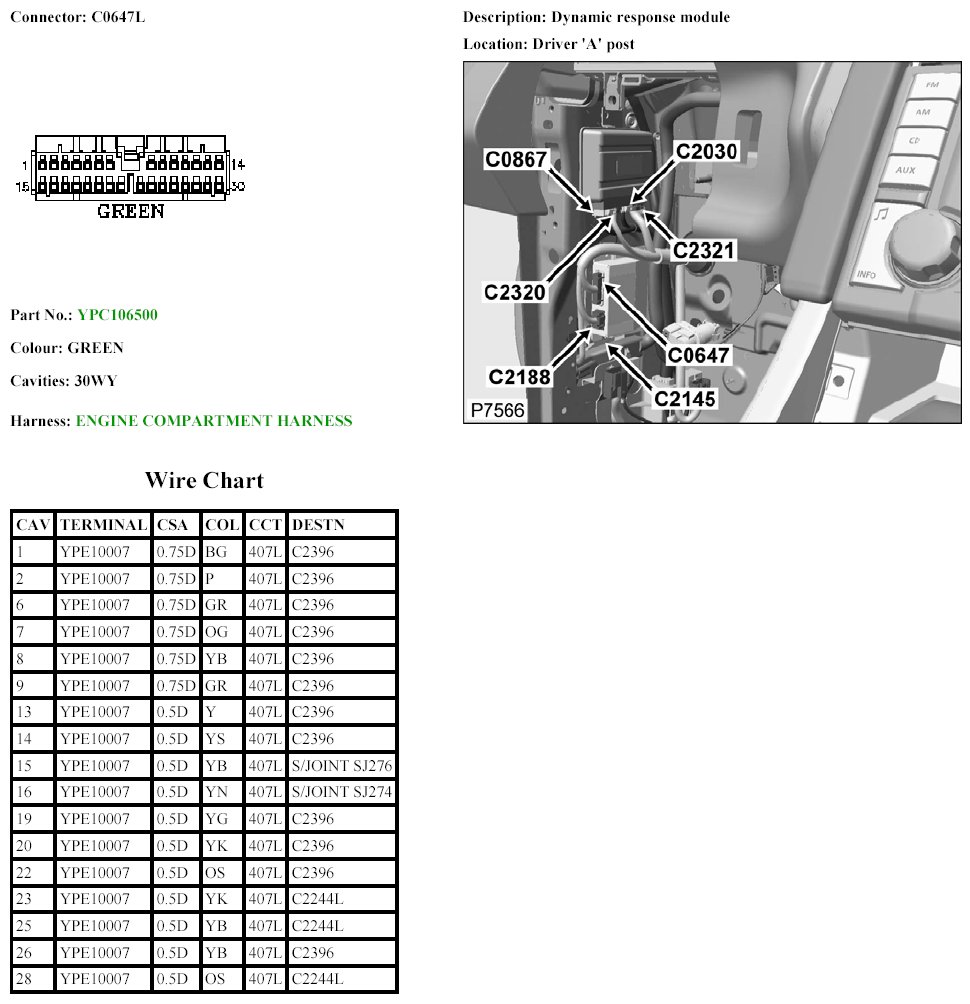

C0647L:

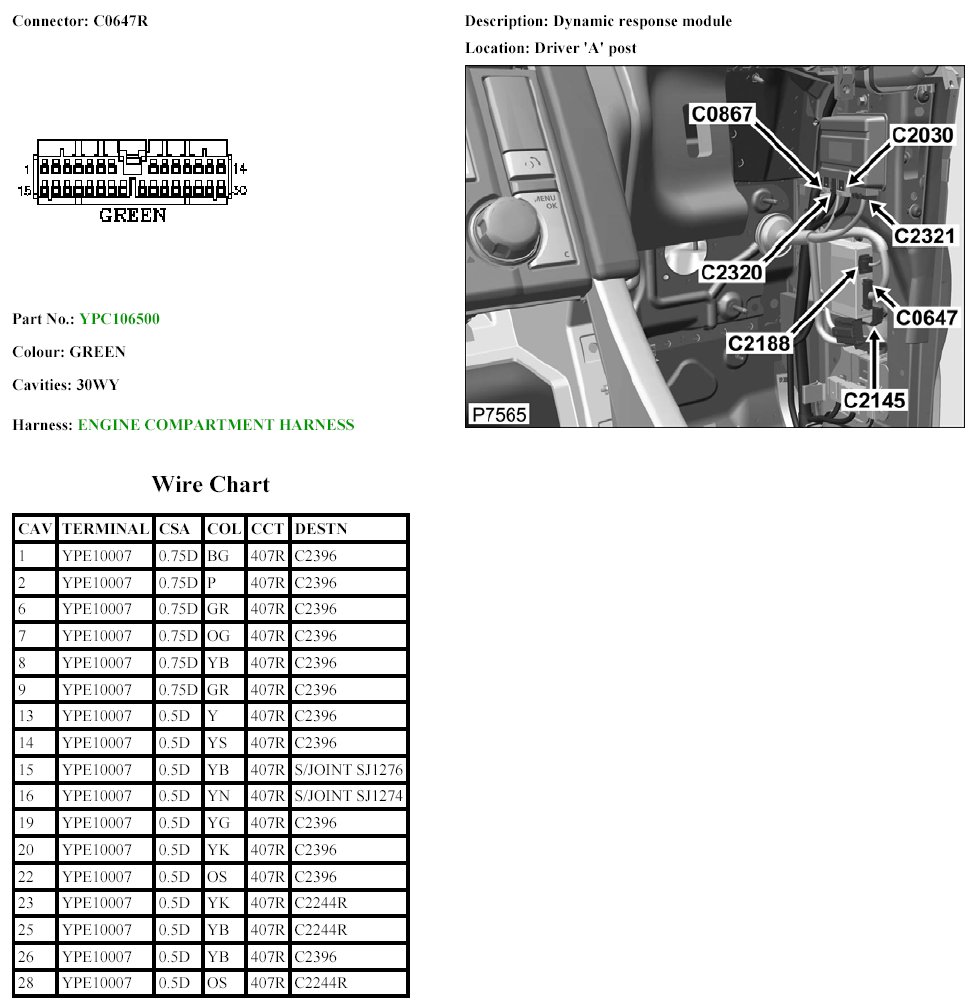

C0647R:

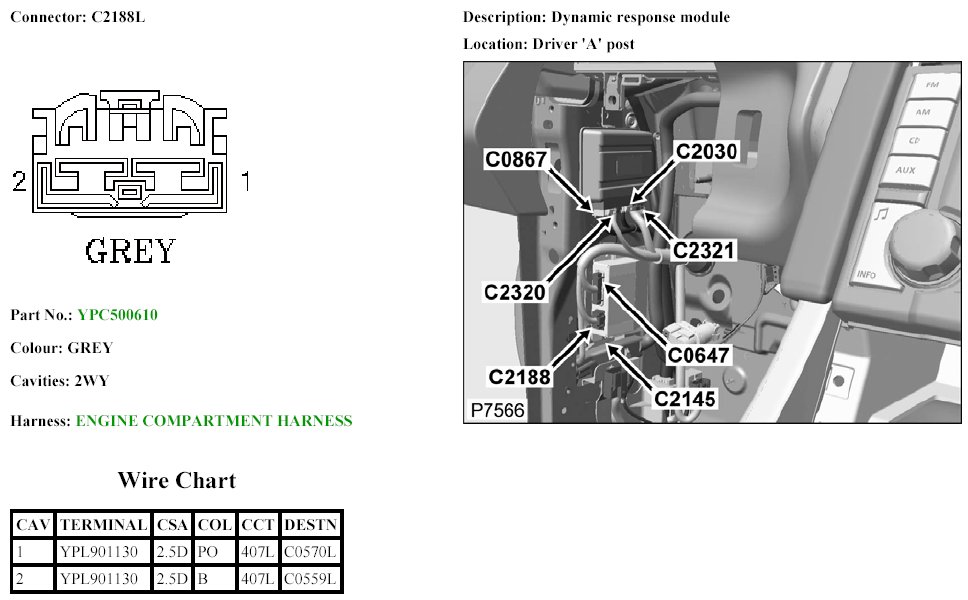

C2188L:

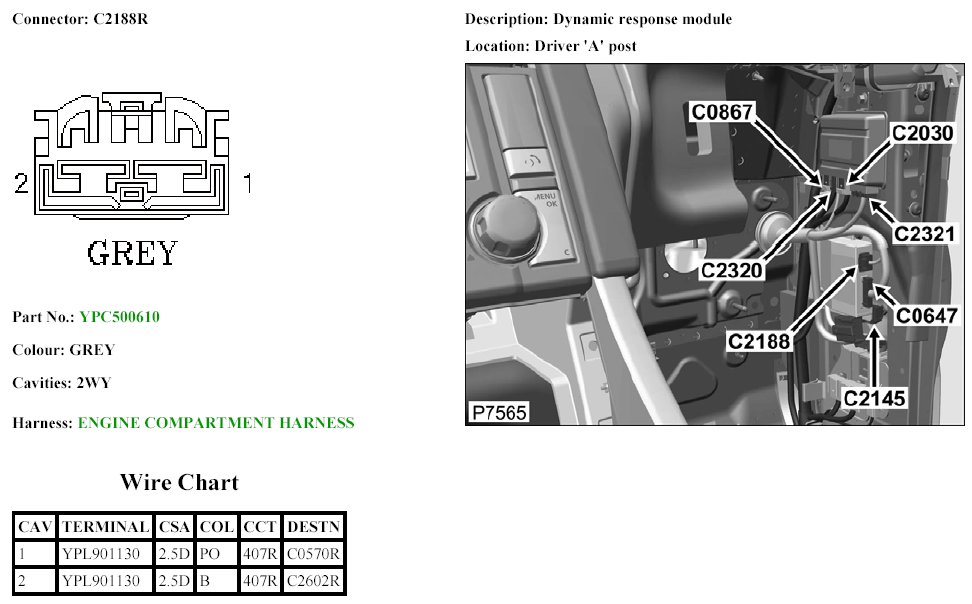

C2188R:
