Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Switch-Window-Rear
Switch-Window-Rear
Switch-Window-Rear

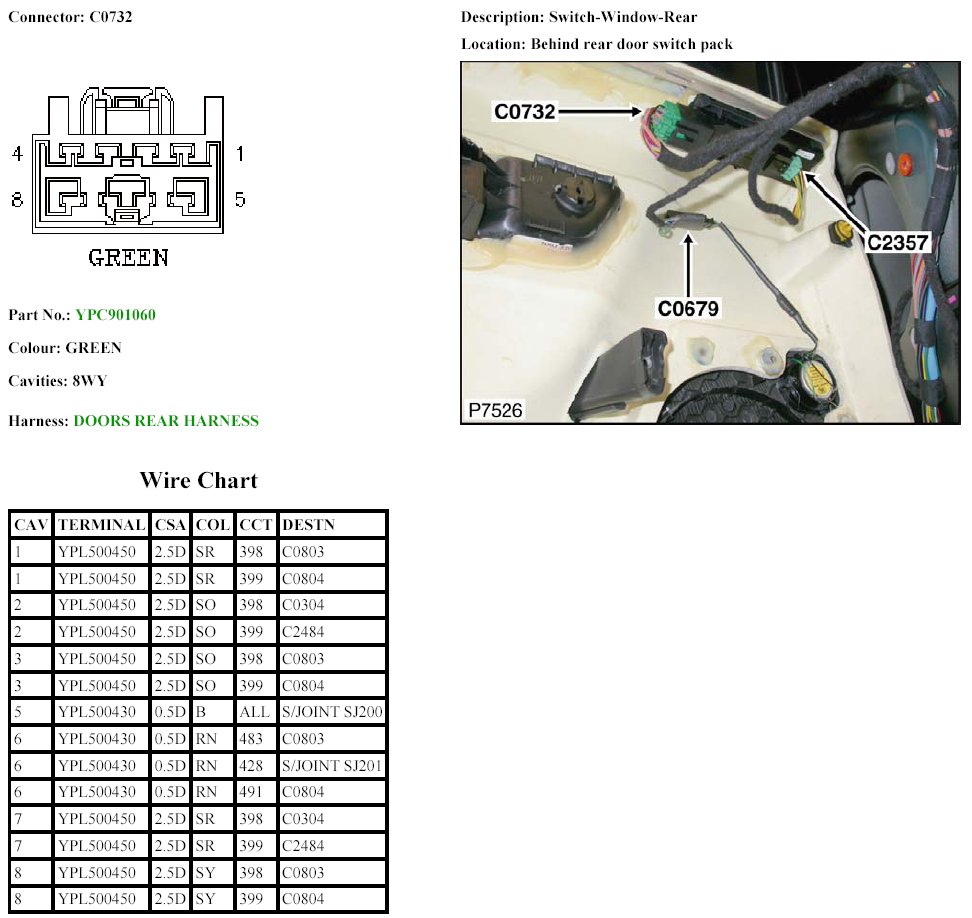

C0732:
