Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Mirror Control Module
Power Mirror Control Module
Fold Back Module

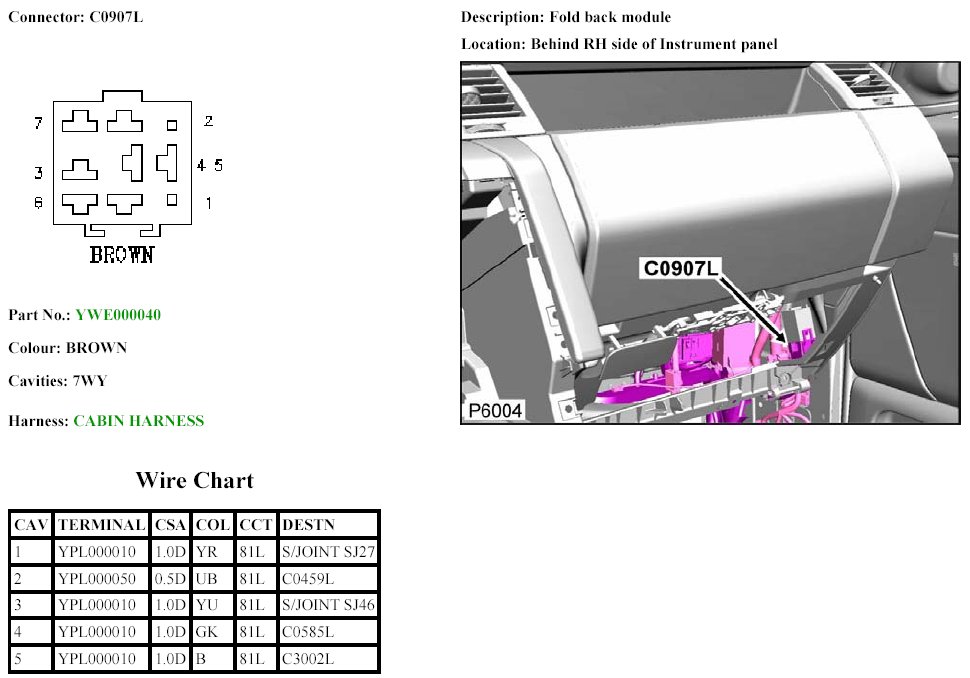

C0907L:

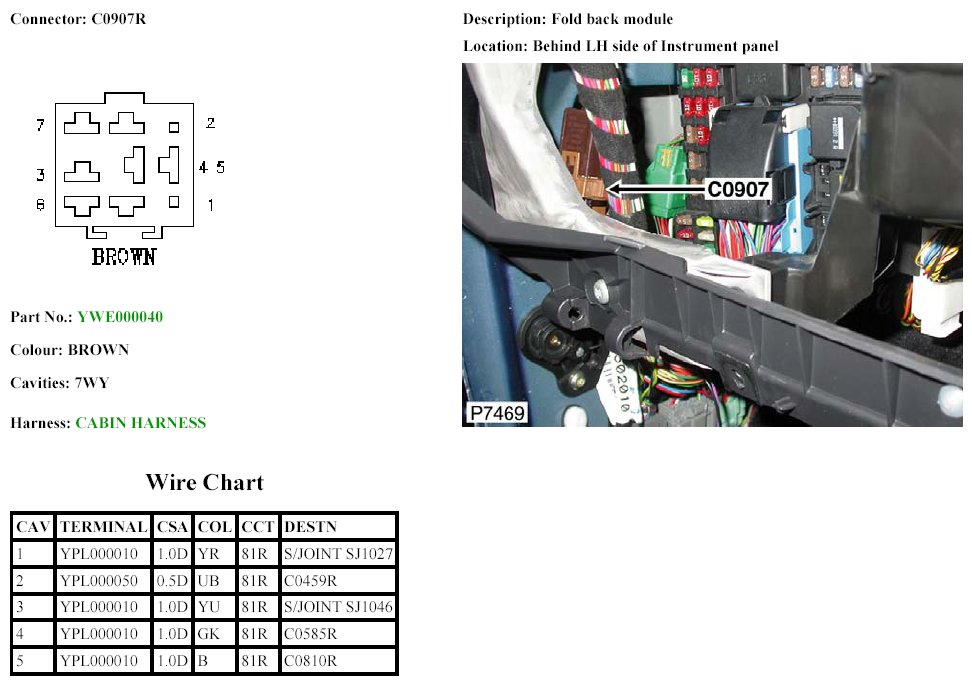

C0907R:
