Home >> Land Rover >> 2009 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Sensor-Air Bag-Side-Rear-LH

Sensor-Air Bag-Side-Rear-LH

Sensor-Air Bag-Side-Rear-LH

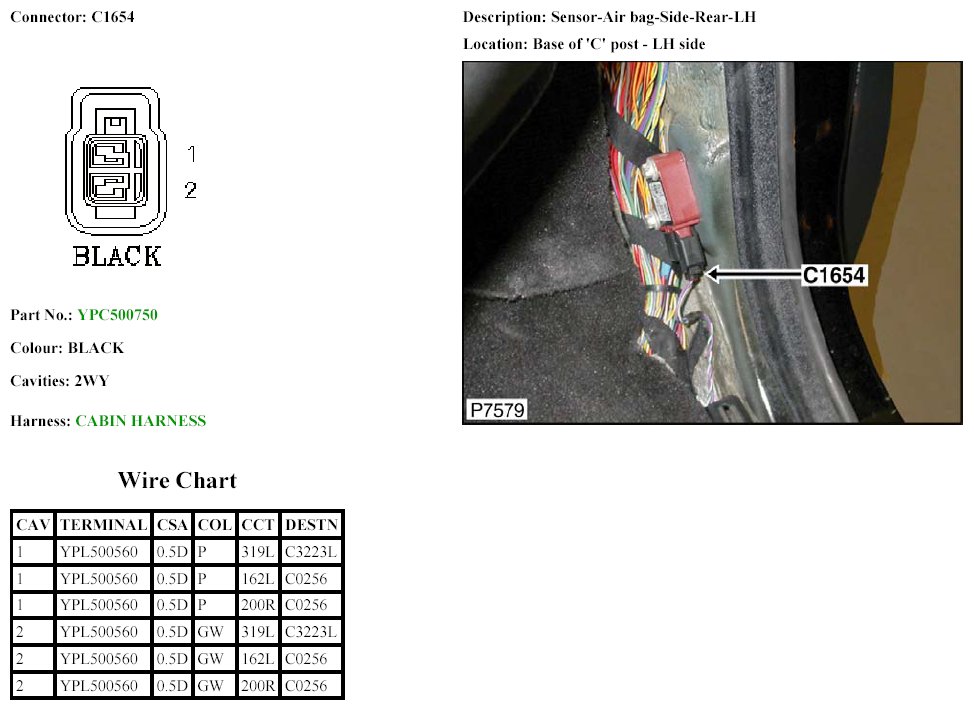

C1654:

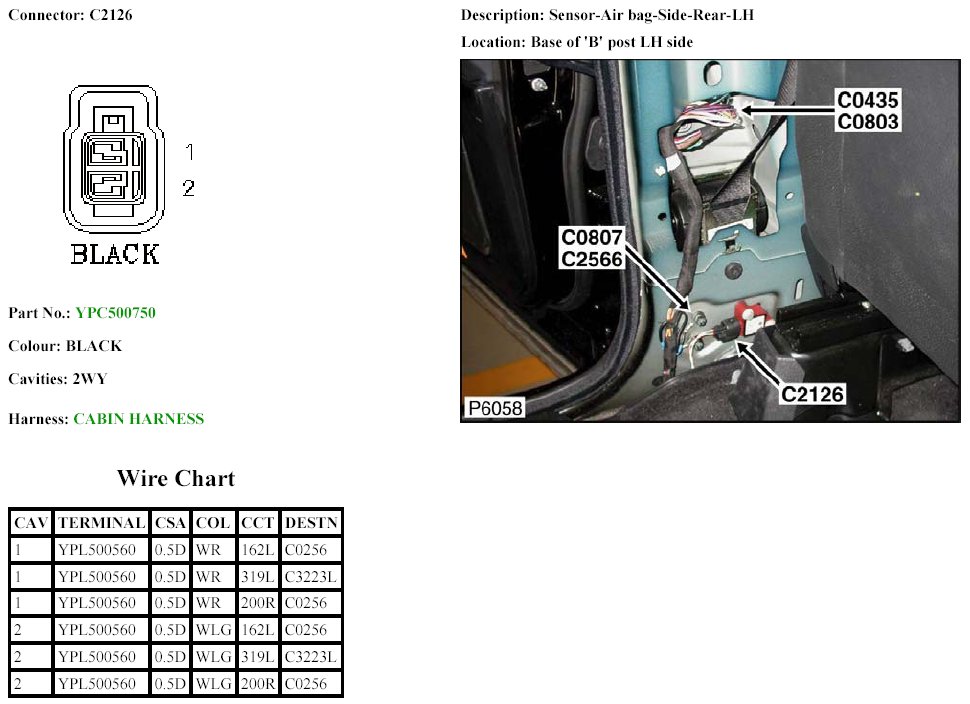

C2126:

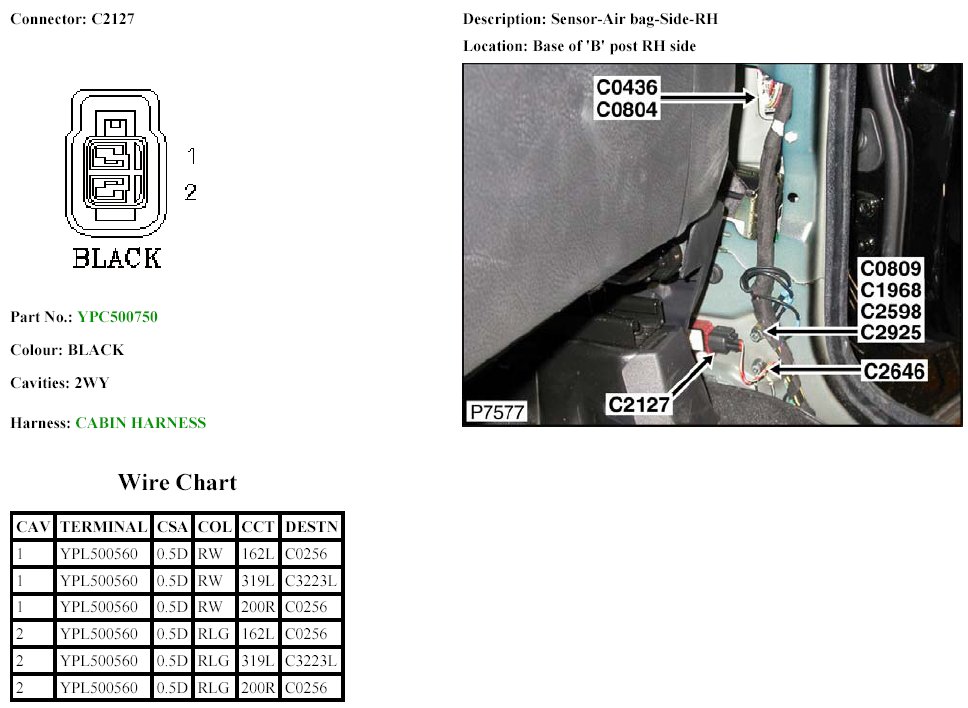

C2127:
