Home >> Land Rover >> 2009 >> Range Rover Sport (LS) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Entertainment System Control Module >> Module-DVD

Module-DVD

Module-DVD

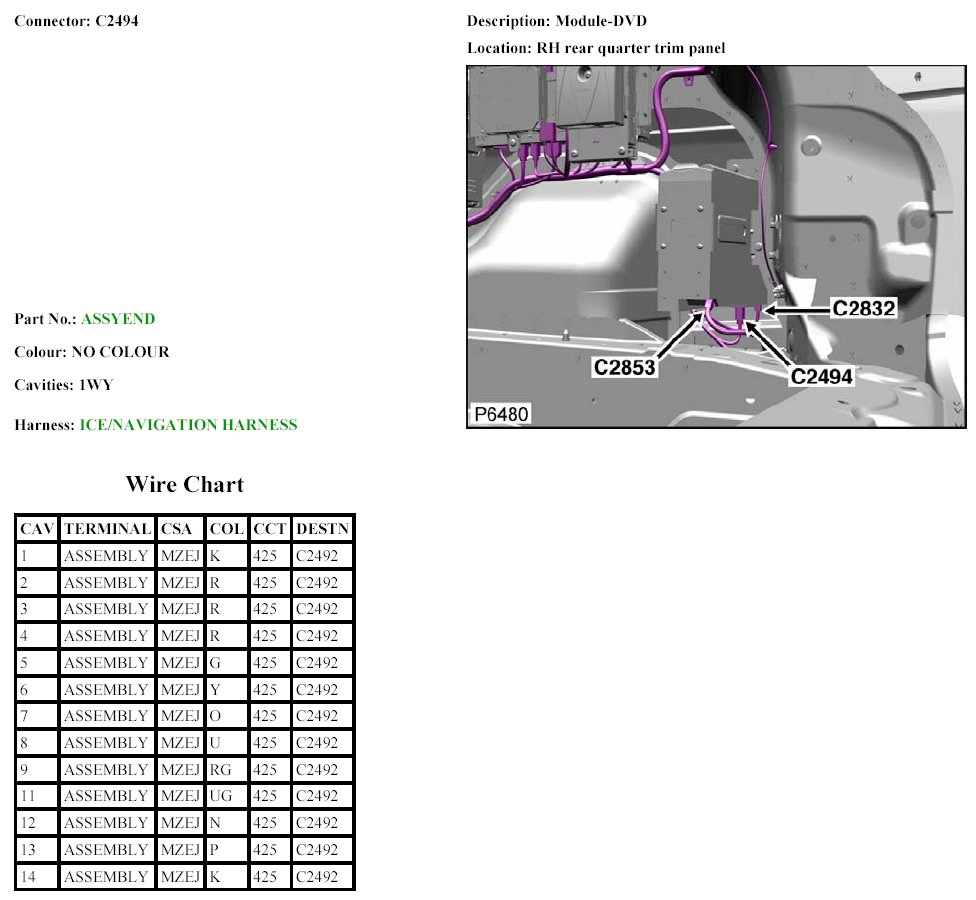

C2494:

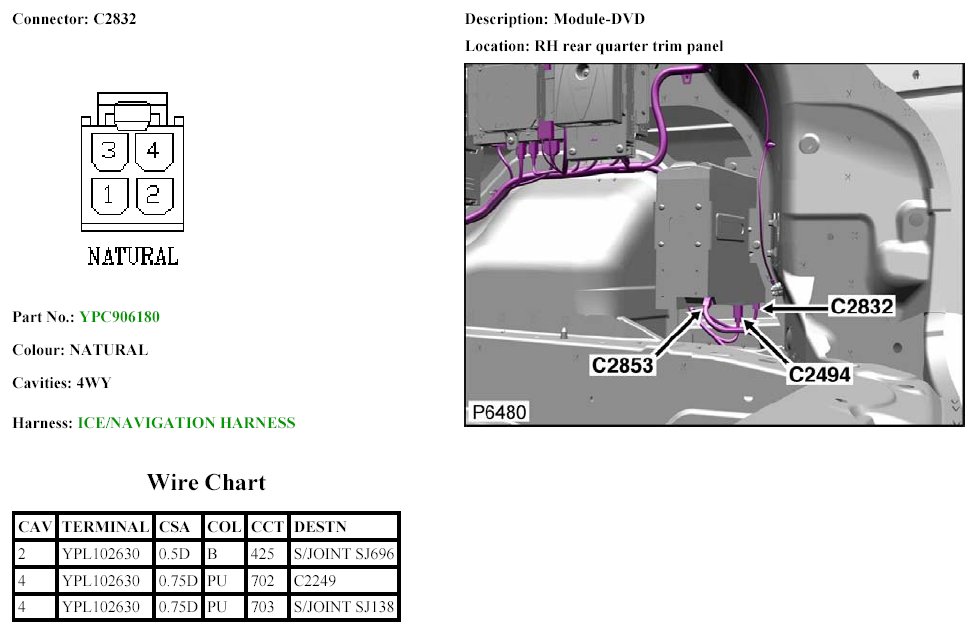

C2832:

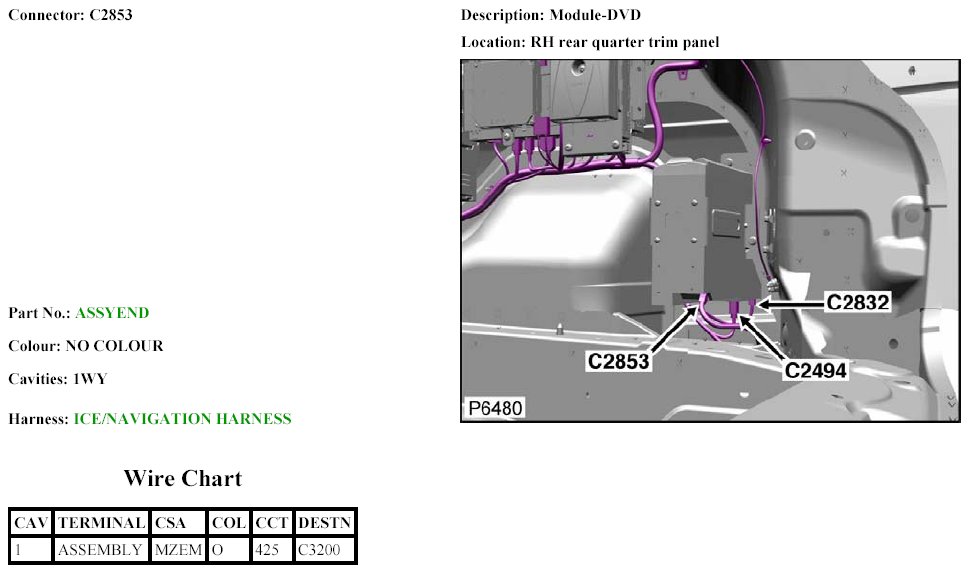

C2853:
