Coolant Temperature Sensor/Switch (For Computer)
>>
Sensor-Engine Coolant-Temperature (ECT)
Sensor-Engine Coolant-Temperature (ECT)
Sensor-Engine Coolant-Temperature (ECT)

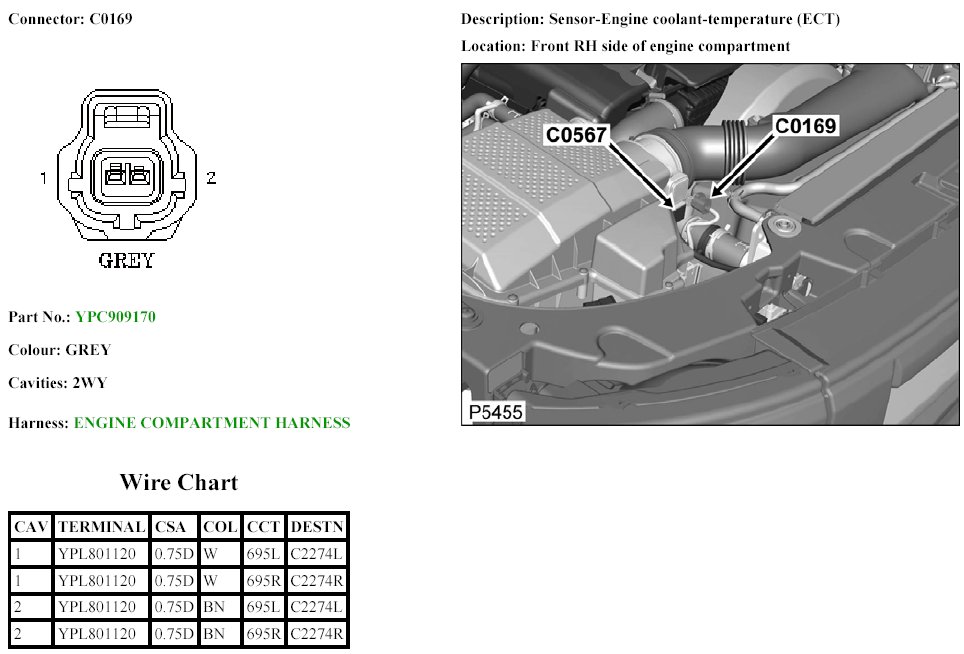

C0169:
