Control Module, Transfer Case

Transfer Box Control Module

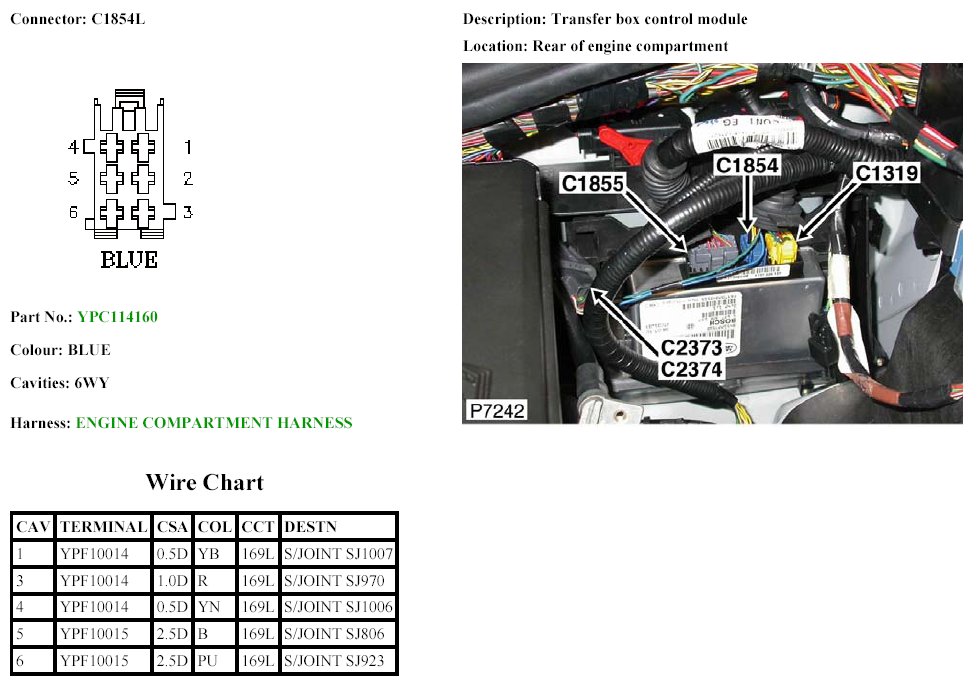

C1319L:

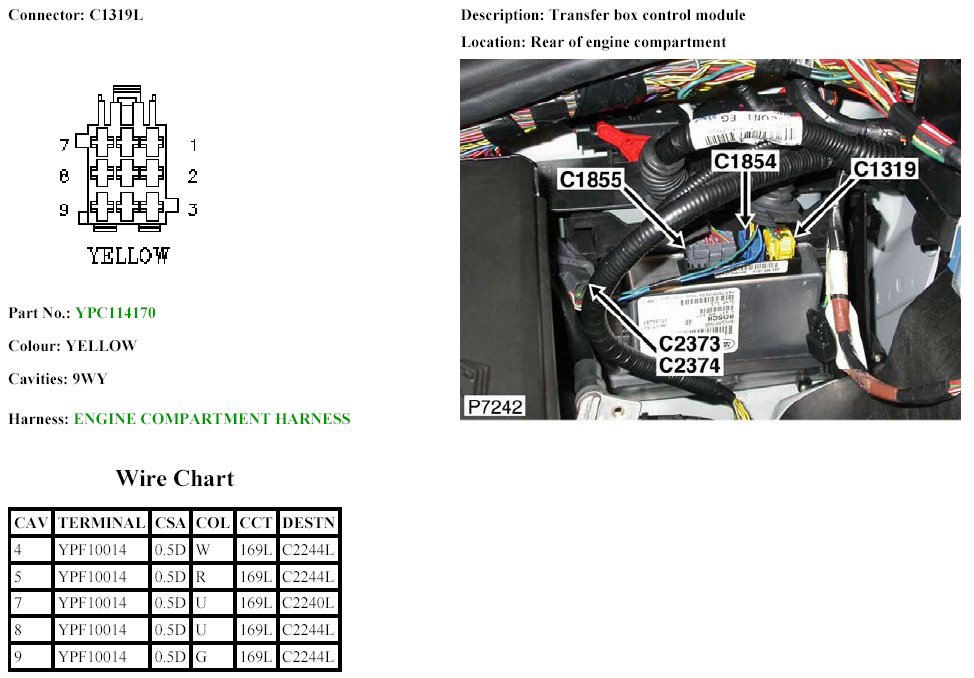

C1319R:




C1854L:

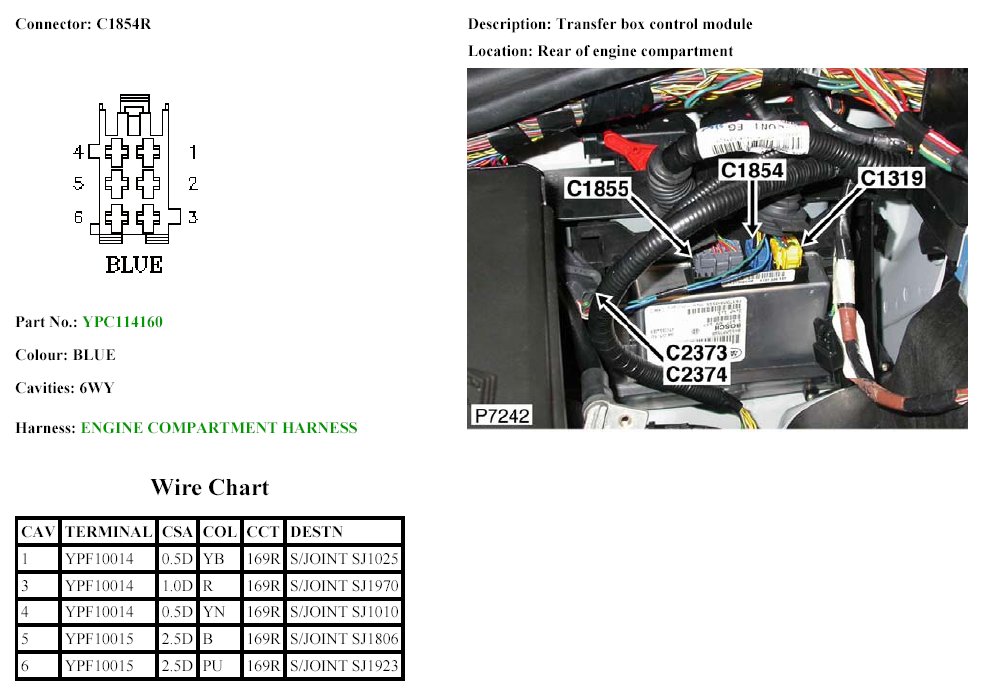

C1854R:




C1855B:

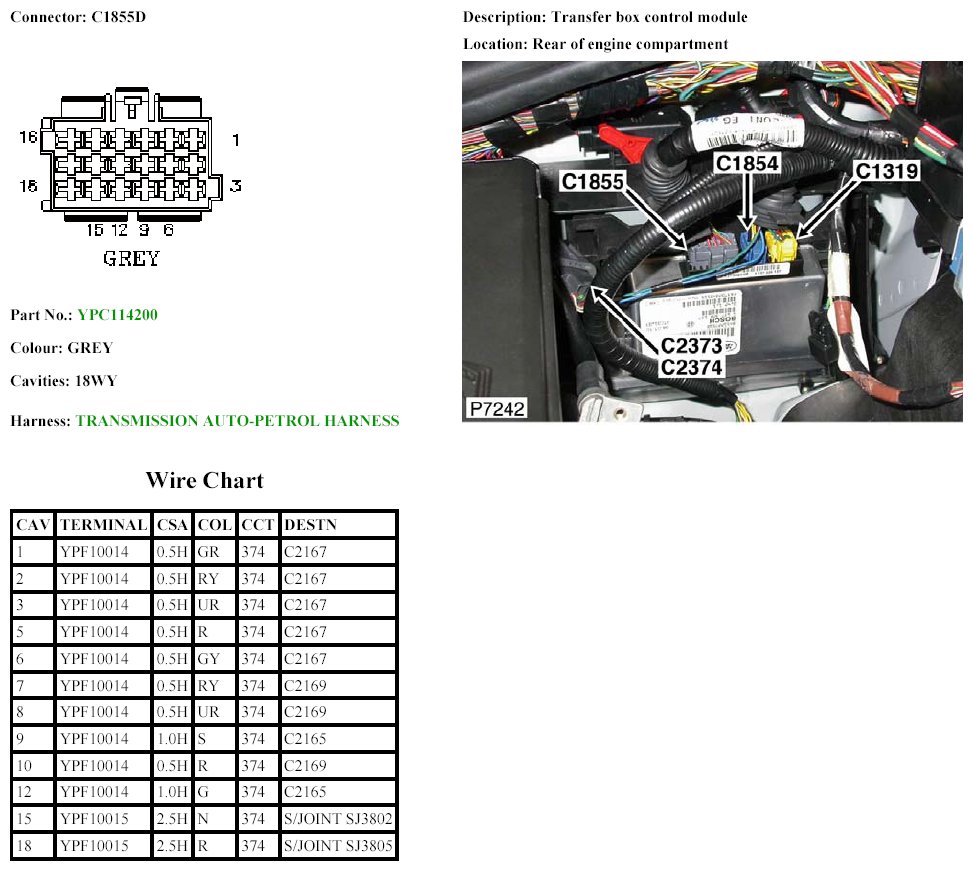

C1855D:
