Home >> Land Rover >> 2009 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Air Conditioning

Air Conditioning



Air Conditioning

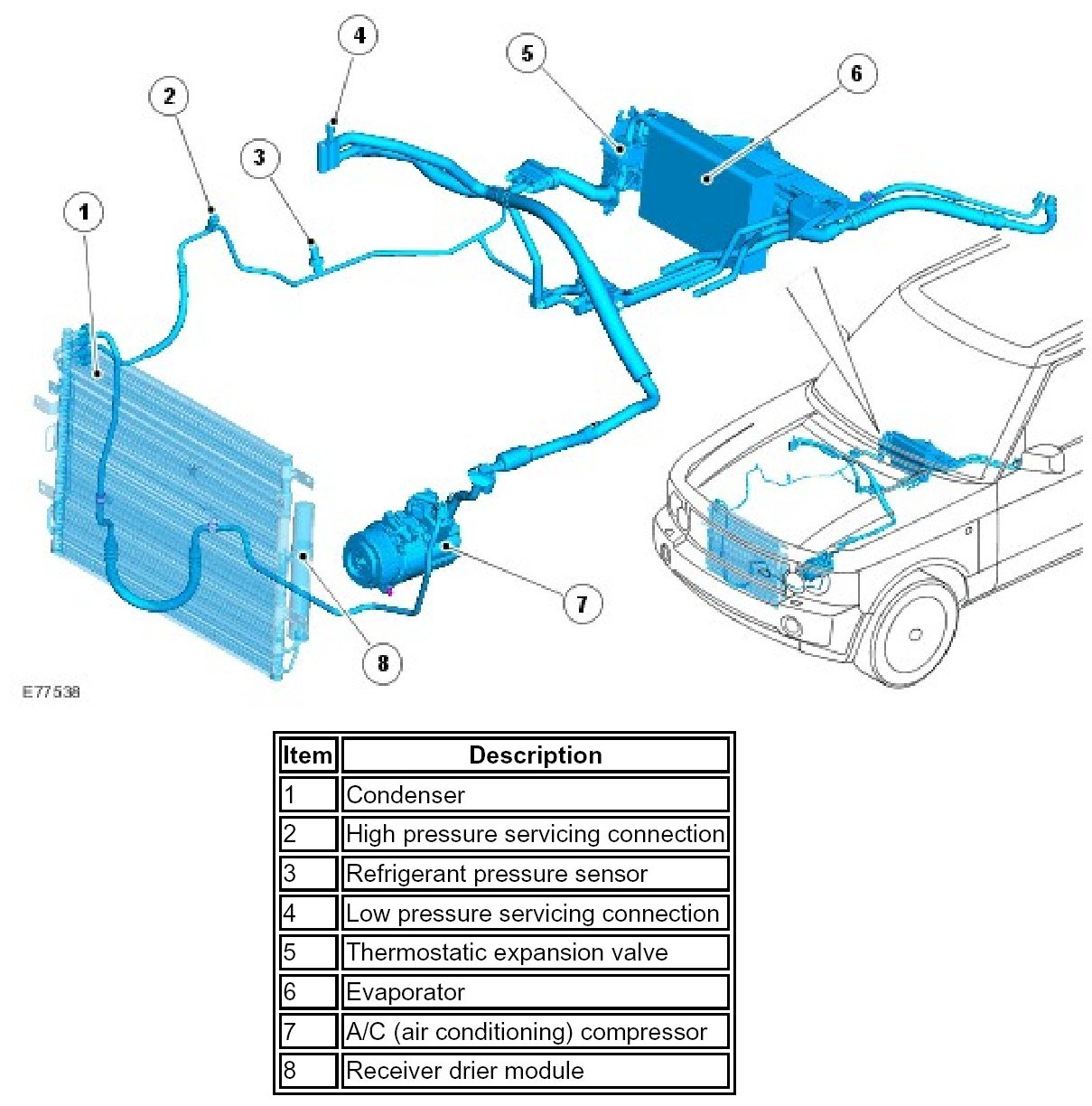

COMPONENT LOCATION - TdV8

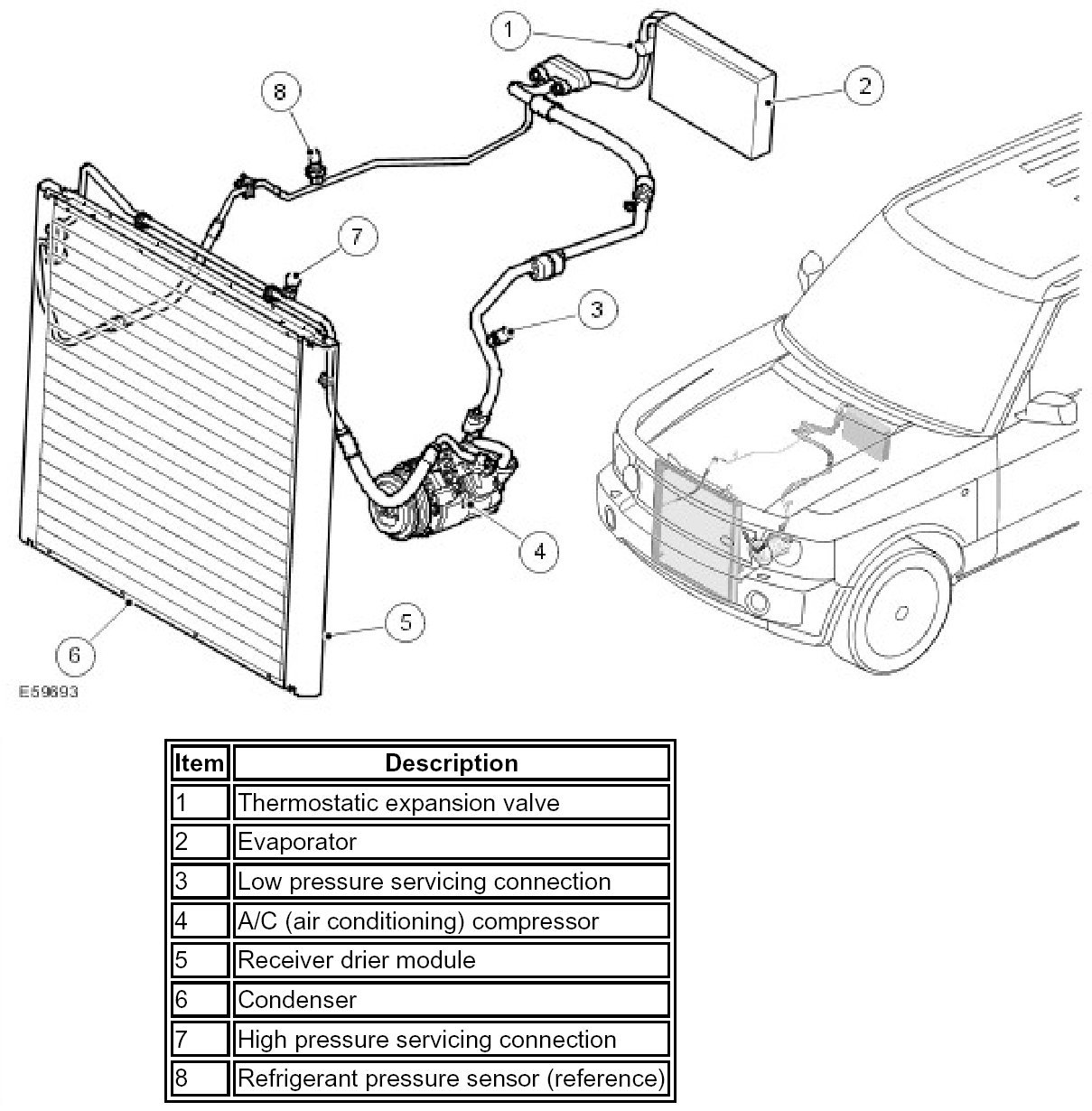

COMPONENT LOCATION - 4.2L/4.4L
