FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Land Rover
>>
2009
>>
Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
Control Unit, Differential Lock

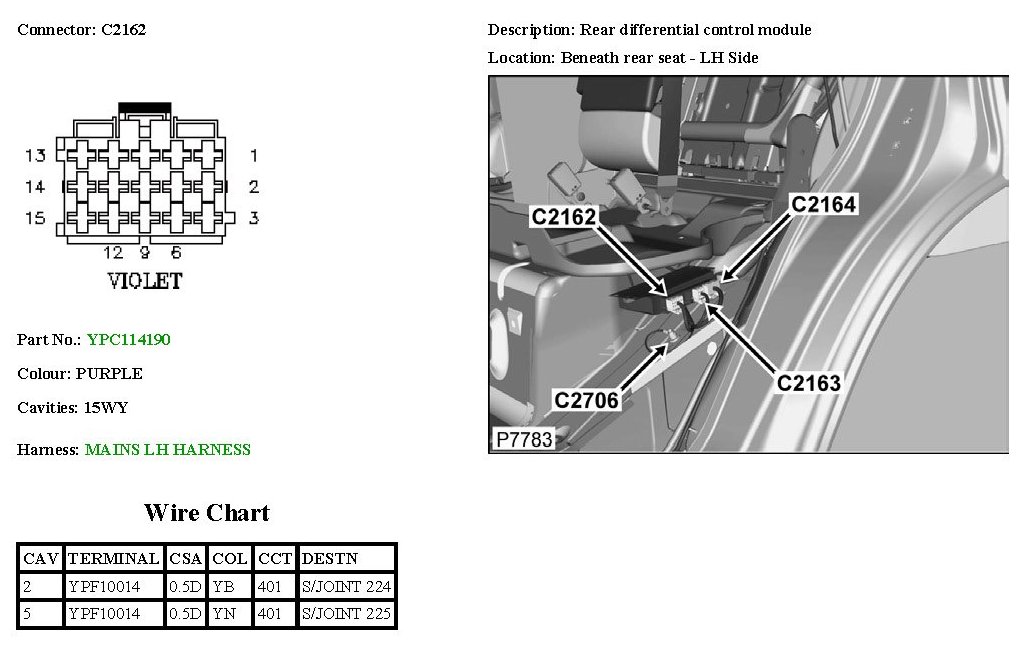

C2162:

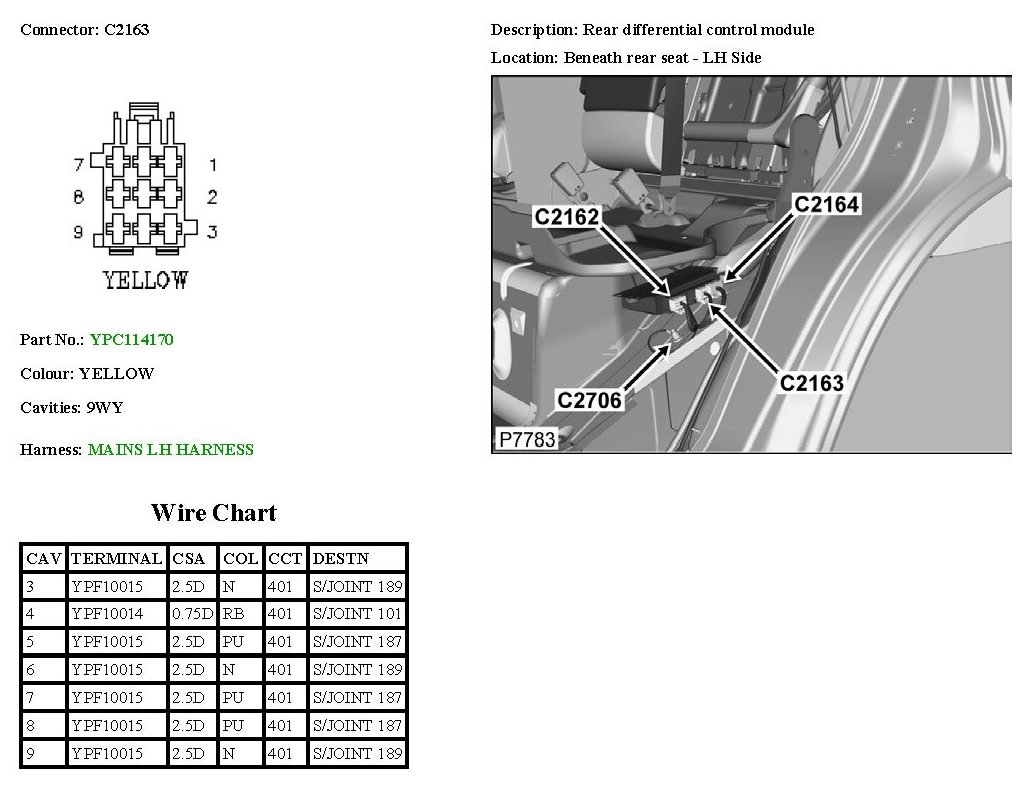

C2163:

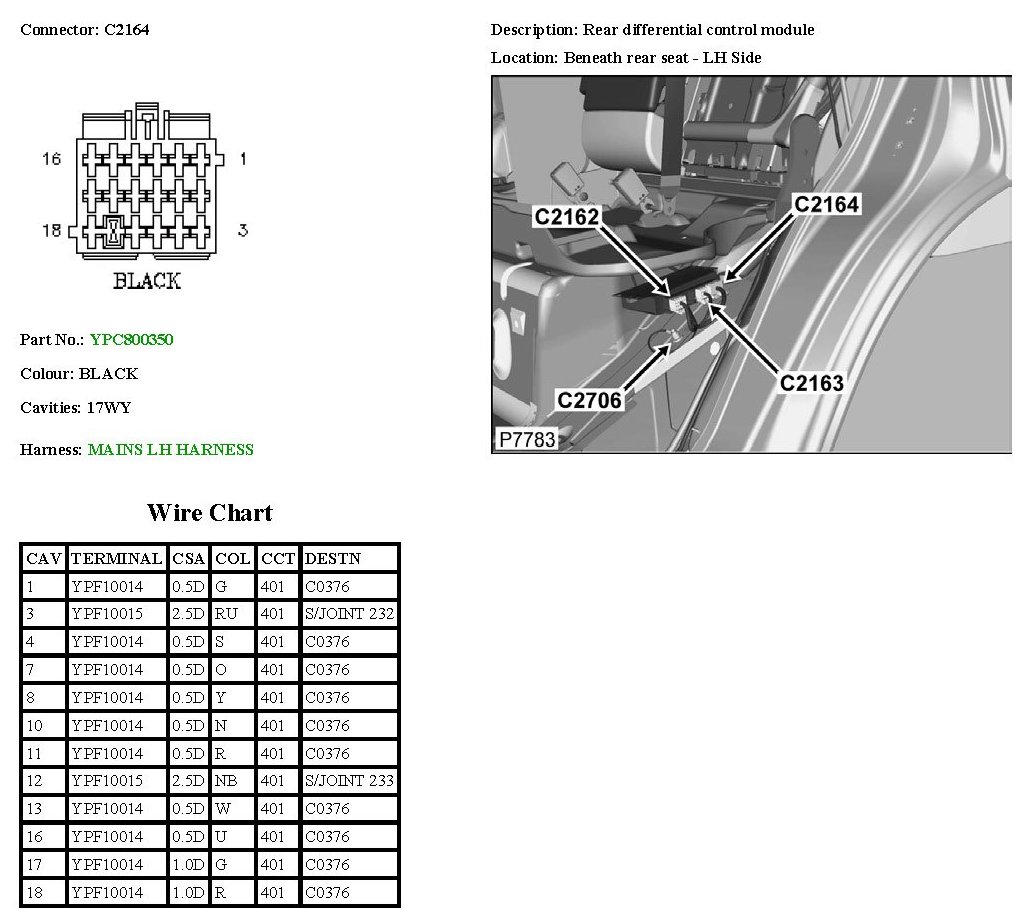

C2164:
