Transmission Position Sensor/Switch: Locations

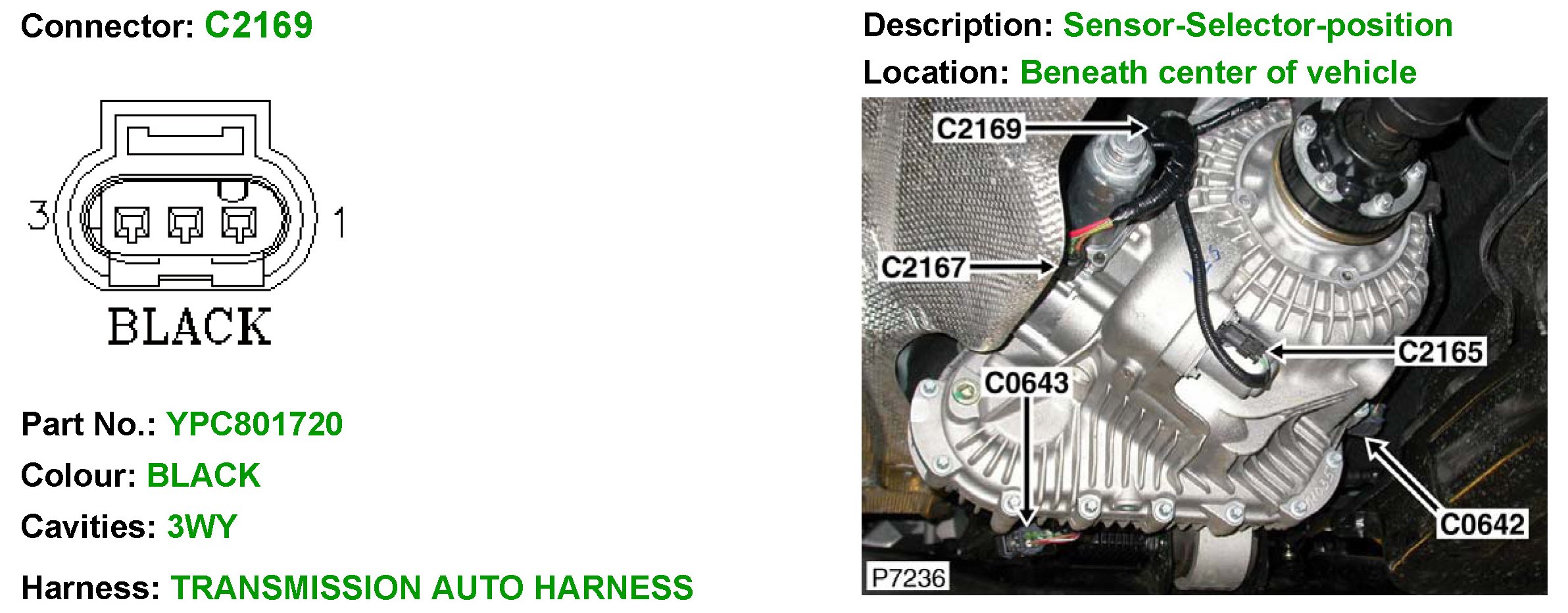

C2169 (Part 1):



C2169 (Part 2):



C 2169 (Part 3):
